Master Cylinder Bench Bleeding

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, and 2003 Chevrolet Tahoe. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Prior to performing any work, review warnings, cautions and notes. See BRAKE BLEEDING WARNINGS, CAUTIONS & NOTES  under SERVICE PRECAUTIONS.
  1. Secure the mounting flange of the brake master cylinder in a bench vise so that the rear of the primary piston is accessible. See Fig 1.
  2. Remove the master cylinder reservoir cap and diaphragm.
  3. Install suitable fittings to the master cylinder ports that match the type of flare seat required and also provide for hose attachment.
  4. Install transparent hoses to the fittings installed to the master cylinder ports, then route the hoses into the master cylinder reservoir.
  5. Fill the master cylinder reservoir to at least the half-way point with Delco Supreme 11®, or equivalent DOT-3 brake fluid from a clean, sealed brake fluid container.
  6. Ensure that the ends of the transparent hoses running into the master cylinder reservoir are fully submerged in the brake fluid.
  7. Using a smooth, round-ended tool, depress and release the primary piston as far as it will travel, a depth of about 1" (25 mm), several times. Observe the flow of fluid coming from the ports. As air is bled from the primary and secondary pistons, the effort required to depress the primary piston will increase and the amount of travel will decrease.
  8. Continue to depress and release the primary piston until fluid flows freely from the ports with no evidence of air bubbles.
  9. Remove the transparent hoses from the master cylinder reservoir.
  10. Install the master cylinder reservoir cap and diaphragm.
  11. Remove the fittings with the transparent hoses from the master cylinder ports. Wrap the master cylinder with a clean shop cloth to prevent brake fluid spills.
  12. Remove the master cylinder from the vise.

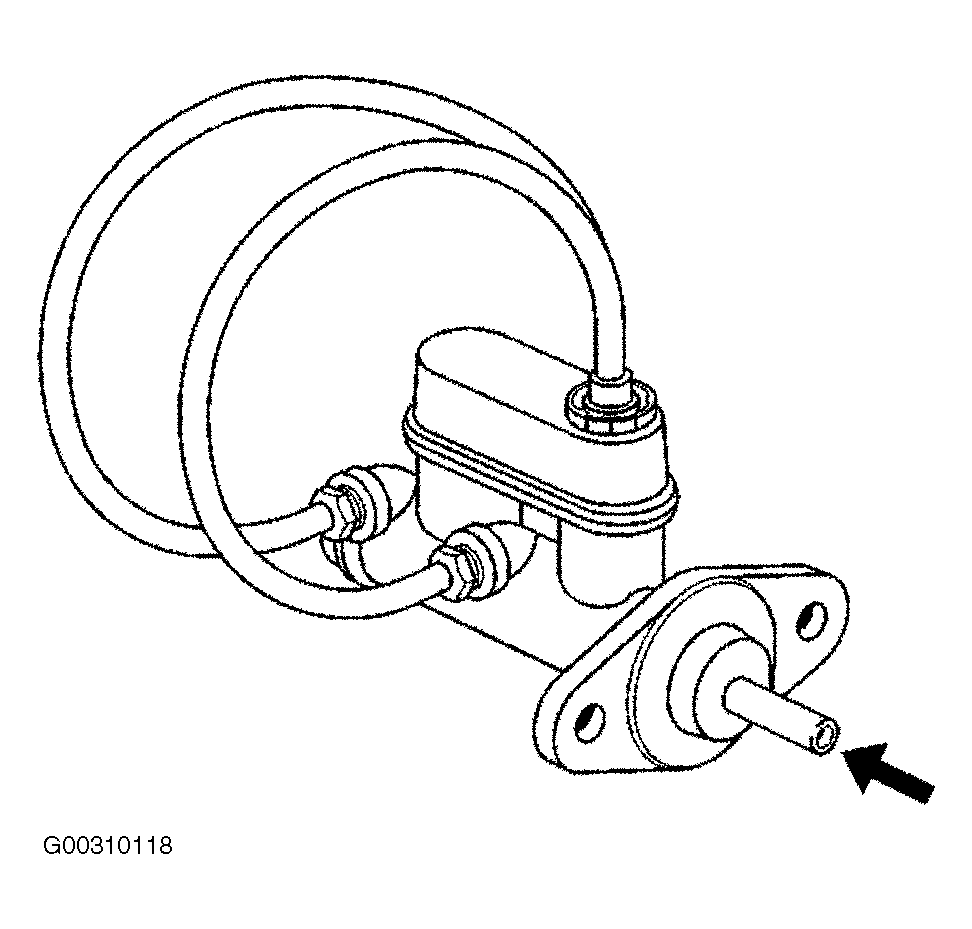

Fig 1: Accessing Rear Of Primary Piston
G00310118Courtesy of GENERAL MOTORS CORP.
