Park Brake Warning Lamp Switch: Installation

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

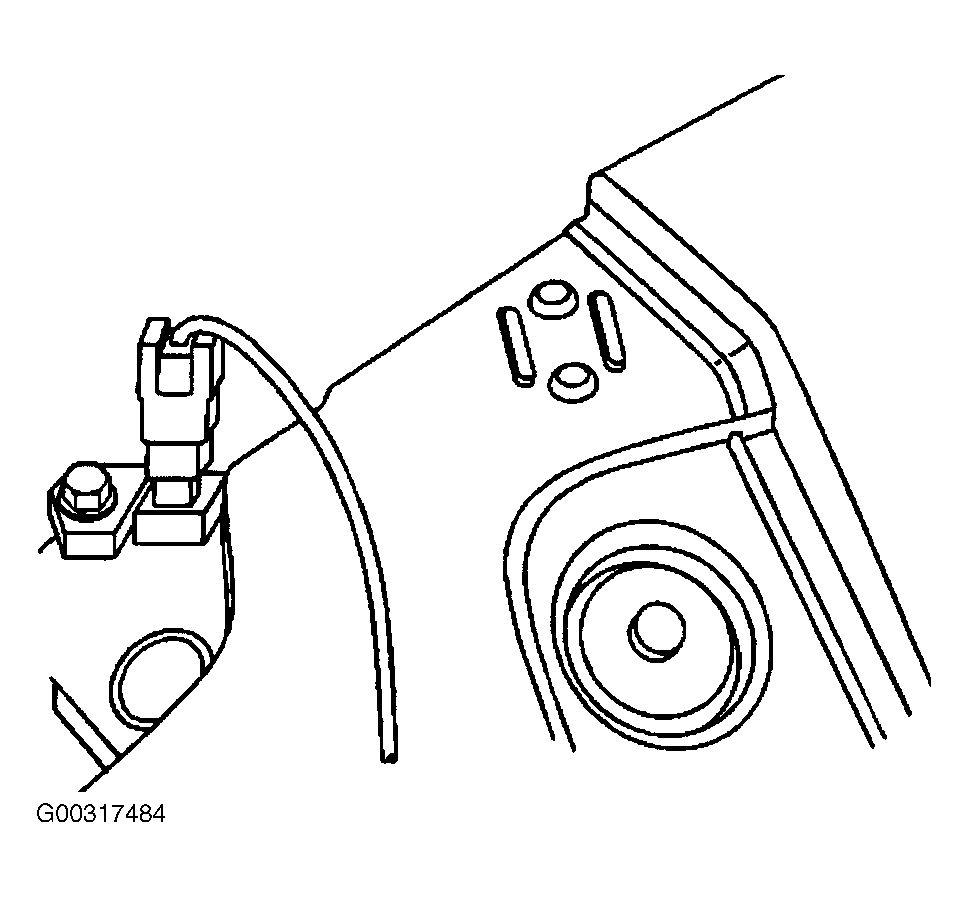

  1. Install the park brake indicator switch onto the locator pin at the park brake pedal. See Figure .
  2. Install the retaining bolt. Tighten the retaining bolt to specification. See TORQUE SPECIFICATIONS  .
  3. Connect the electrical connector to the park brake switch.
  4. Release the park brake.
