Park Brake Release Handle Assembly: Installation

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the end of the cable to the instrument panel and twist to secure.

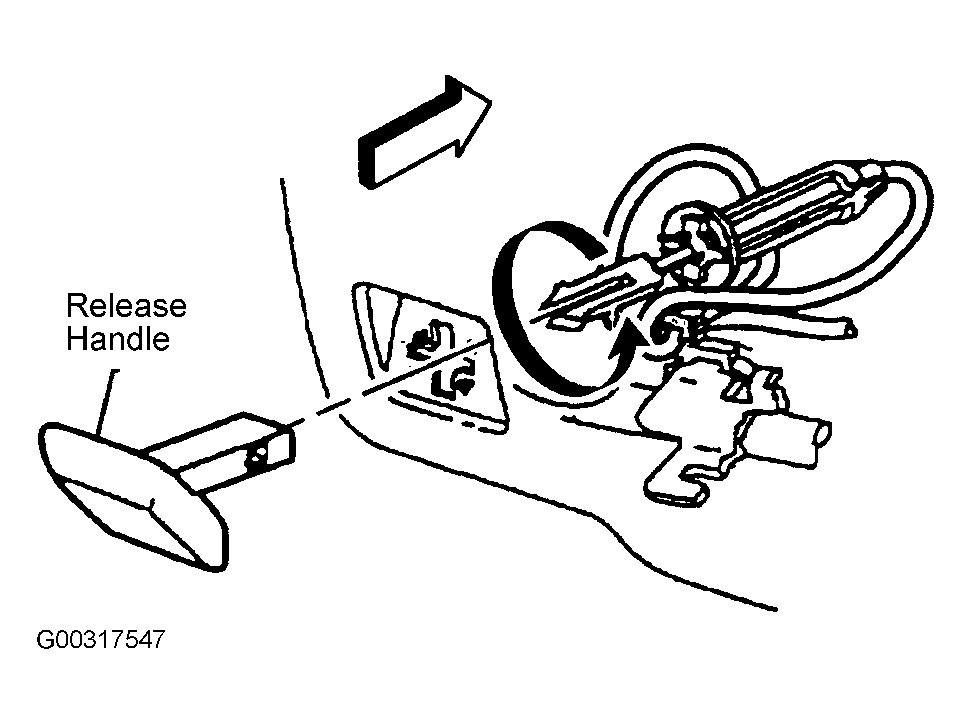

  2. Install the release handle by pressing it onto the cable end. See Figure .
  3. Install the release cable grommet to the pedal assembly.
  4. Install the release cable to the pedal assembly.
  5. Install the park brake cable through the retaining clip and squeeze the end together to secure.
