Master Cylinder Reservoir: Removal

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the master cylinder from the vehicle. See Fig 1 . See MASTER CYLINDER  .
  2. Drain the brake fluid from the reservoir.
  3. Secure the master cylinder in a vise. Do not clamp the master cylinder body, secure only the flange.
  4. Remove the reservoir body by pulling the body straight up and away from the cylinder body. See Fig 2 .
  5. Remove the seals from the reservoir.

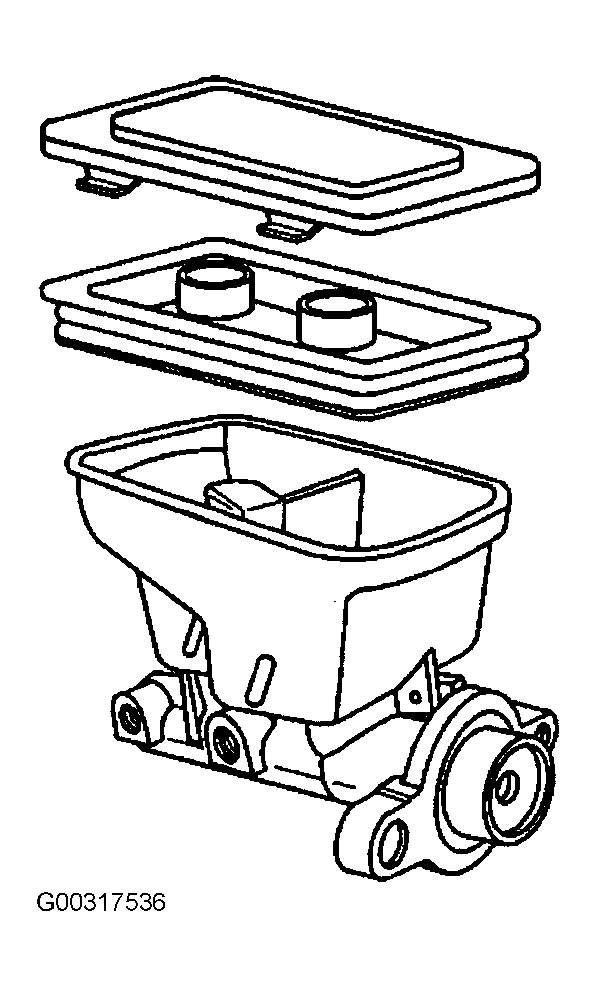

Fig 1: Removing Master Cylinder
G00317536Courtesy of GENERAL MOTORS CORP.
Fig 2: Removing Reservoir Body
G00317537Courtesy of GENERAL MOTORS CORP.
