Master Cylinder Reservoir: Installation

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Inspect the reservoir for cracks or deformation. If found, replace the reservoir.
  2. Clean the reservoir with denatured alcohol, or equivalent.
  3. Dry the reservoir with non-lubricated, filtered air.
  4. Lubricate the NEW seals and the outer surface area of the reservoir-to-housing barrels with Delco Supreme 11(R) (GM P/N 12377967) or equivalent DOT-3 brake fluid from a clean, sealed brake fluid container.

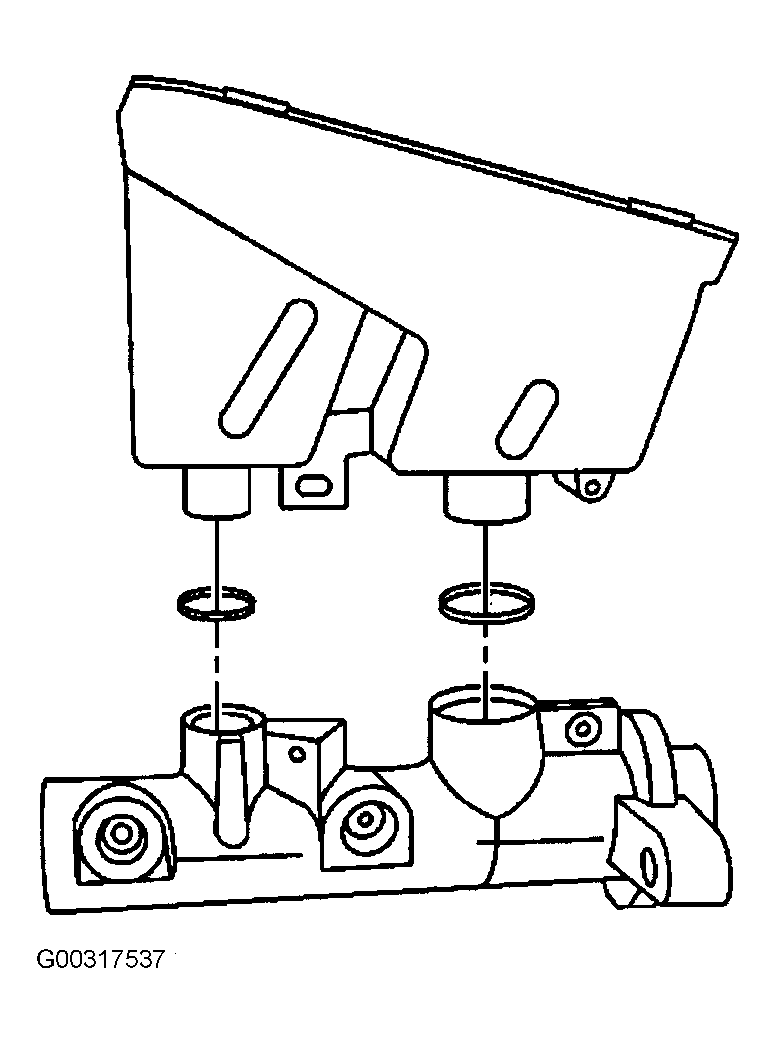

  5. Insert the "O" rings into the grooves in the reservoir. Make sure that the "O" rings are properly seated. See Figure .
  6. Install the reservoir to the master cylinder body. Use your hand in order to press the reservoir straight down into the body.
  7. Install the master cylinder.
