Rear Floor Console: Removal

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the console box insert. See Fig 1 .
  2. Open console lid. Remove the console box damper.
  3. Remove the 2 front bolts.
  4. Remove the 2 rear bolts.
  5. Disconnect the electrical connector.
  6. Remove rear console.

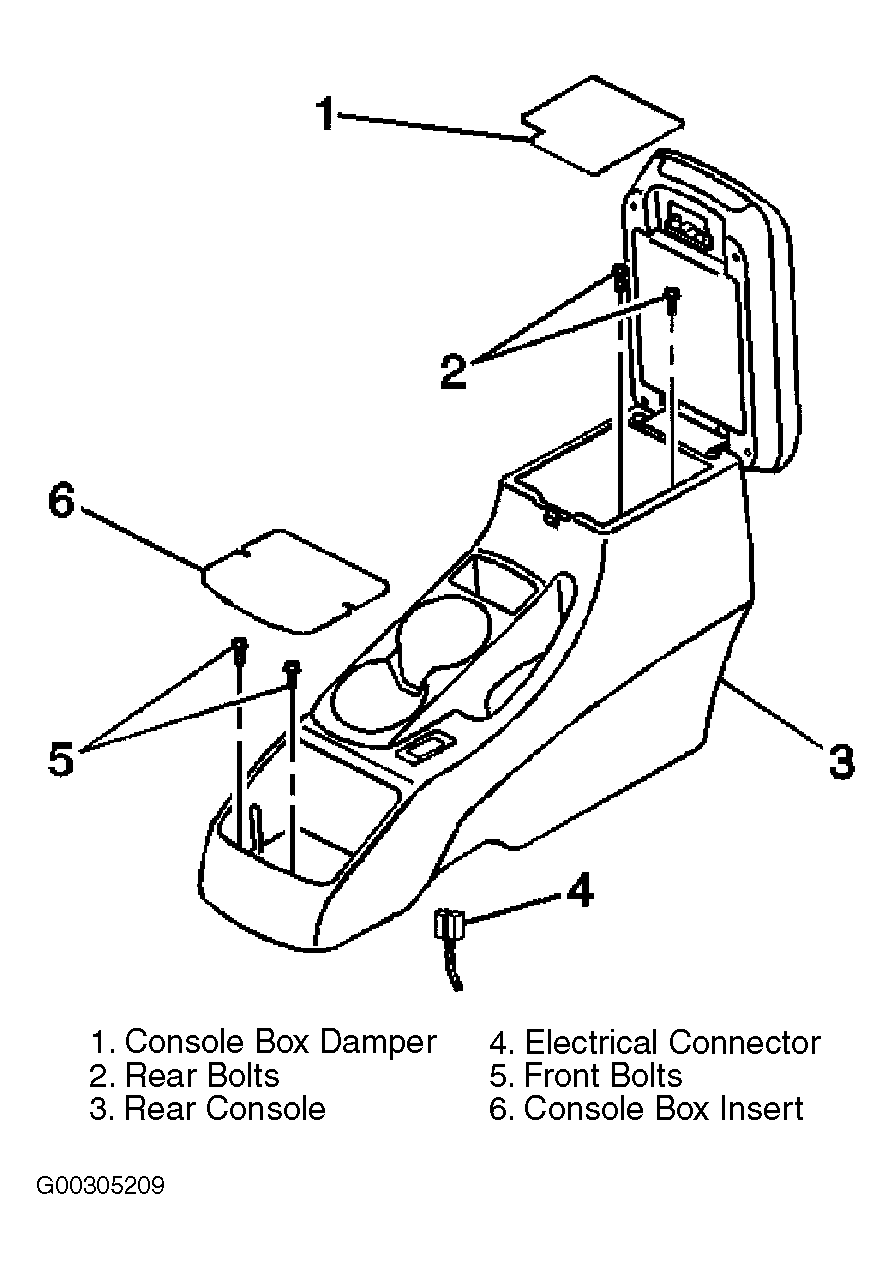

Fig 1: Identifying Rear Console Components
G00305209Courtesy of GENERAL MOTORS CORP.
