Master Cylinder Reservoir: Installation

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

Use clean brake fluid to lubricate the NEW grommets. Install the grommets to the master cylinder. See Fig 1 . Install the reservoir to the master cylinder. Install the screw. Install the reservoir diaphragm.
Fill the reservoir and install the cap. See MASTER CYLINDER RESERVOIR FILLING under BLEEDING BRAKE SYSTEM. Inspect the master cylinder for fluid leakage. Connect the brake fluid level switch connector.

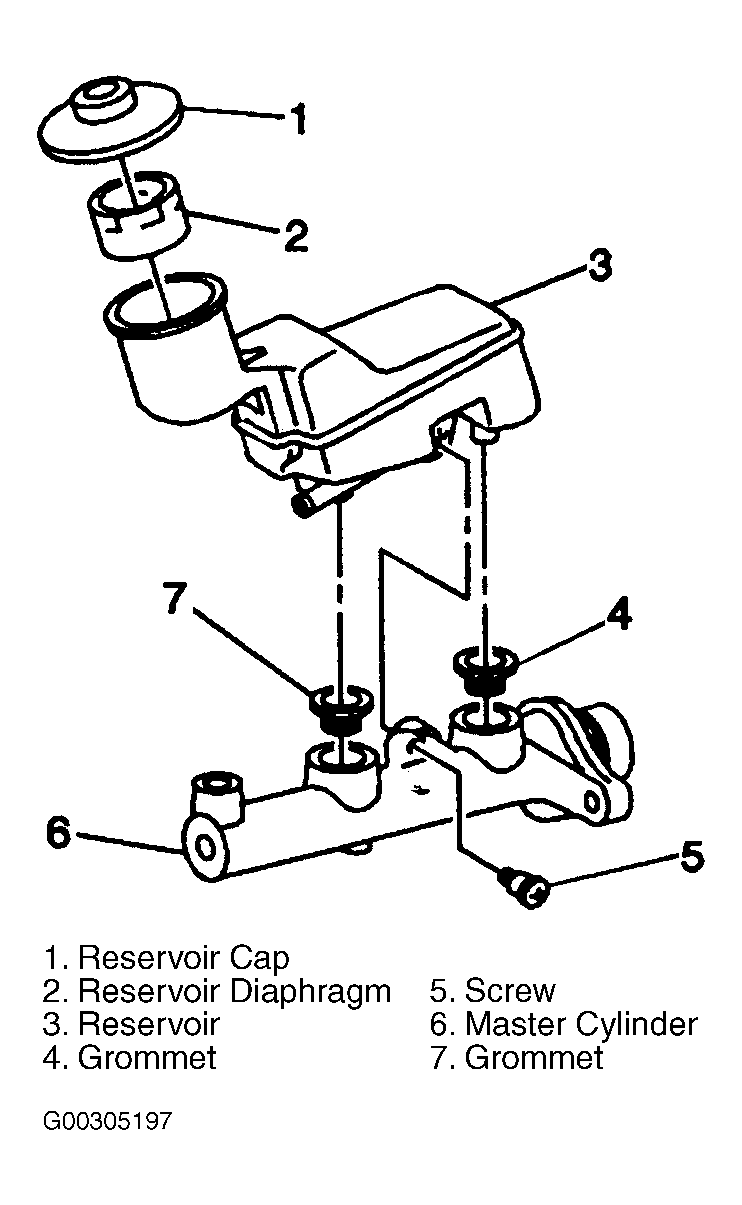

Fig 1: Removing & Installing Master Cylinder Reservoir (ABS with M/T Shown; Others Are Similar)

Courtesy of GENERAL MOTORS CORP.
