Front Brake Caliper: Installation

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Ensure that the caliper bolt boots are properly installed. Install the caliper to the caliper bracket. See Fig 1 .
  2. Install the brake caliper bolts. Tighten the bolts to specification. See TORQUE SPECIFICATIONS  . Remove the plugs in the brake hose end. Remove the plugs in the brake hose end.

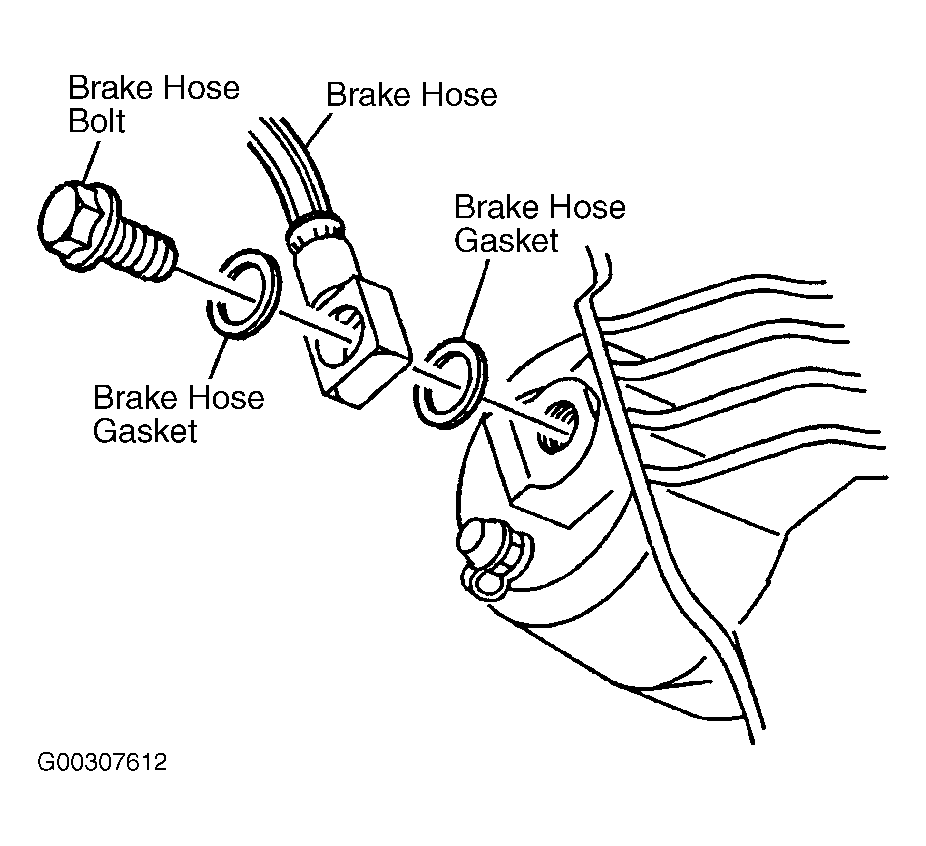

  3. Assemble the brake hose bolt and the NEW copper brake hose gaskets to the brake hose. See Figure . Install the brake hose bolt to the brake caliper. Tighten the bolt to specifications. See TORQUE SPECIFICATIONS  . Remove the nuts securing the rotor to the hub.
  4. Install the tire and wheel. Lower the vehicle. Fill the master cylinder to the proper level. Bleed the brake system. See BLEEDING BRAKE SYSTEM  . Apply approximately 175 ft. lbs. (778 N.m) of force to the brake pedal for 10 seconds. Inspect the brake caliper and hydraulic brake system for brake fluid leaks.
Fig 1: Exploded View Of Front Disc Brakes
G00305194Courtesy of GENERAL MOTORS CORP.
