Disabling Parking Brake Automatic Adjuster

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support vehicle. Remove rear wheels. Disconnect parking brake cable from apply lever. Carefully peel carpet away from parking brake lever. With assistance of another technician, pull disconnected parking brake cable downward until fully extended, and install a zip tie or cotter pin through lined up holes in parking brake lever. See Fig 1. DO NOT over-extend parking brake cable.

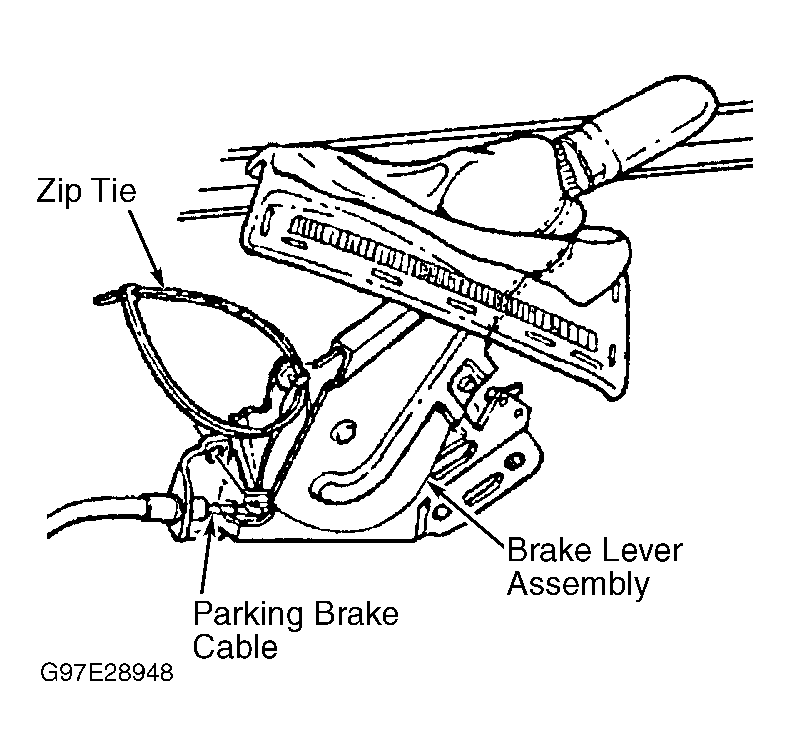

Fig 1: Disabling & Enabling Parking Brake Cable Automatic Adjuster
G97E28948Courtesy of GENERAL MOTORS CORP.
