Rear Brake Pads: Removal

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support rear of vehicle. Remove rear wheel assemblies.

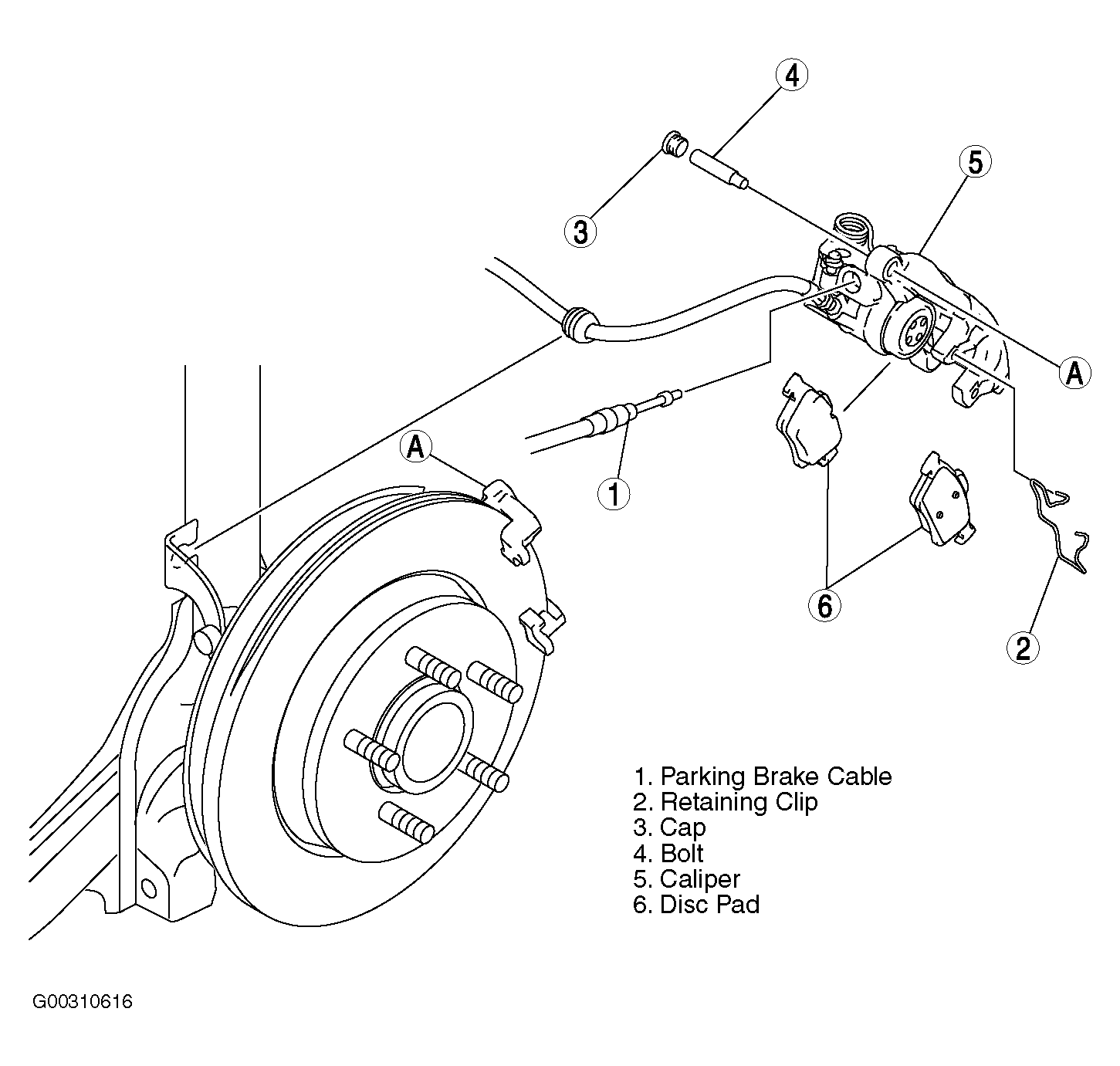

Remove in the order indicated in the illustration. See Figure.

Disc Pad Removal Note - Remove the disc pad (outer side) from the mounting support. Pull the disc pad (inner side) in the direction of the arrow to remove it from the caliper as shown in the illustration. See Figure.
