Stoplight Switch: Removal

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the left sound insulator.

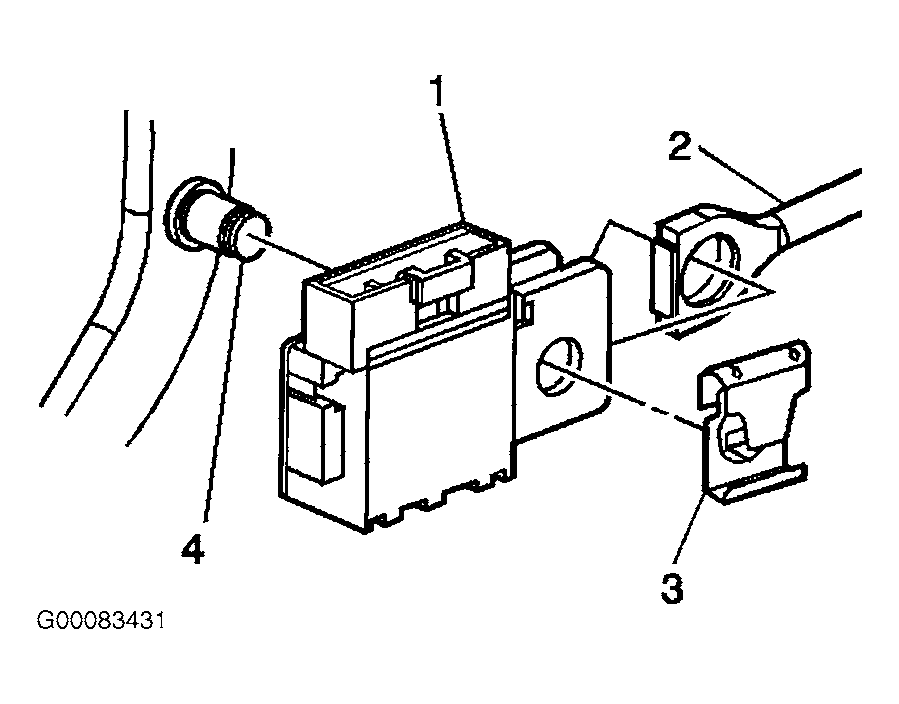

  2. Remove the pushrod retainer (3) from the brake pedal pin (4). See Figure .
  3. Remove the stoplight switch (1) and the pushrod (2) from the brake pedal pin (4). See Figure .
  4. Disconnect the electrical connector and remove the stoplight switch.
  5. Remove the stoplight switch from the vehicle.
