Disc Brake Backing Plate - Rear: Installation
WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

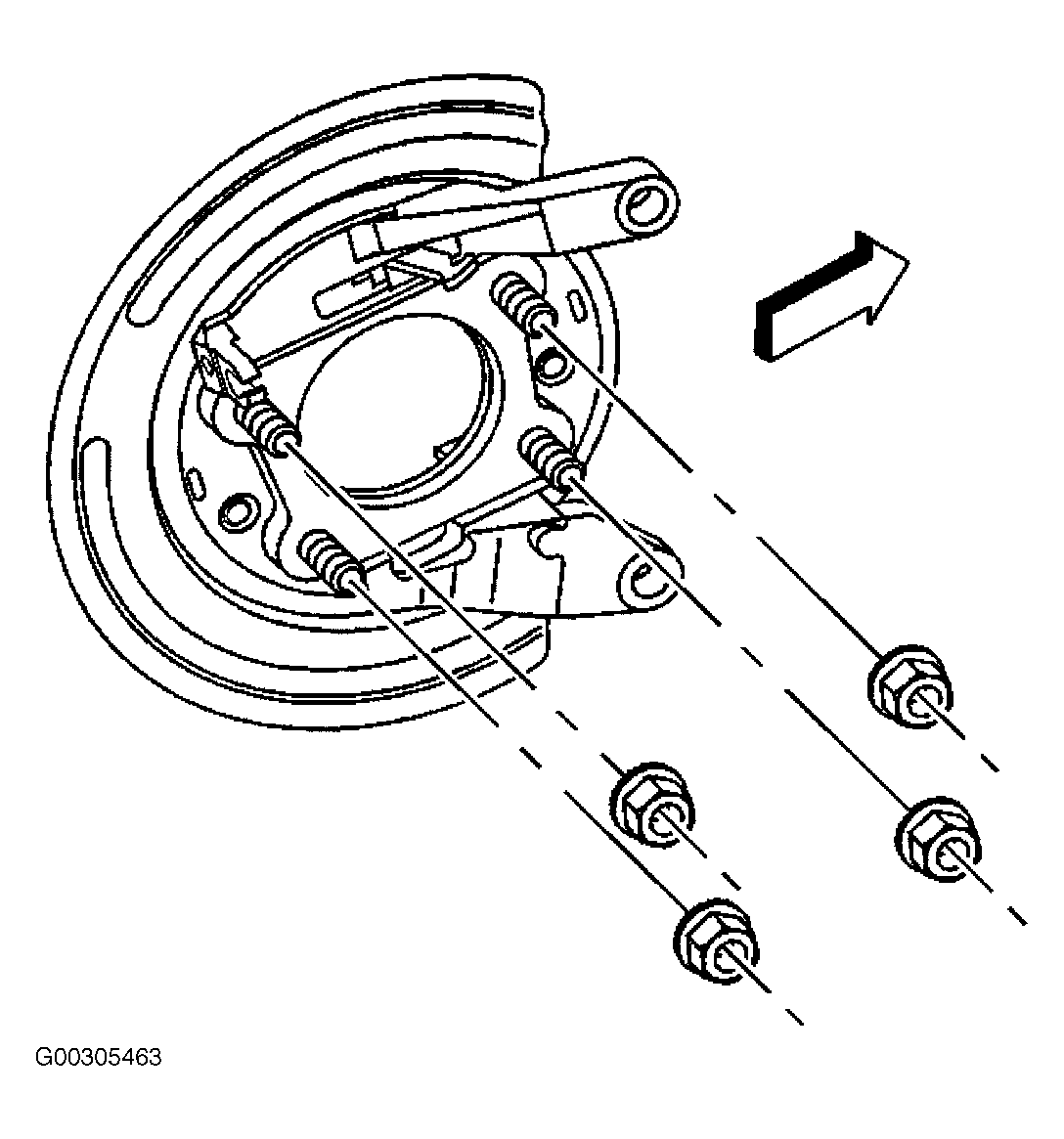

- Install the backing plate to the axle housing flange. See Fig 1.
- Install the backing plate nuts. Tighten the backing plate bolts to specification. See TORQUE SPECIFICATIONS .
- Install the rear drive axle. See appropriate AXLE SHAFT article in DRIVELINE/AXLES.
- Install the park brake shoe. See PARK BRAKE SHOE - DISC .
- Install the brake rotor. See BRAKE ROTOR - REAR .
- Install the brake caliper and bracket assembly.
- Install the park brake cable to the rear brake caliper.
- Adjust the park brake shoe. See PARK BRAKE ADJUSTMENT under ADJUSTMENTS & INSPECTION.
- Install the tire and wheel assembly.
- Lower vehicle.
