Section 491 (Disc Brakes & Drum Brakes): Overhaul

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For overhaul procedures, use illustrations. See Fig 1 -Fig 2 . Manufacturer does not recommend overhaul of power brake booster. If service is required, replace booster.

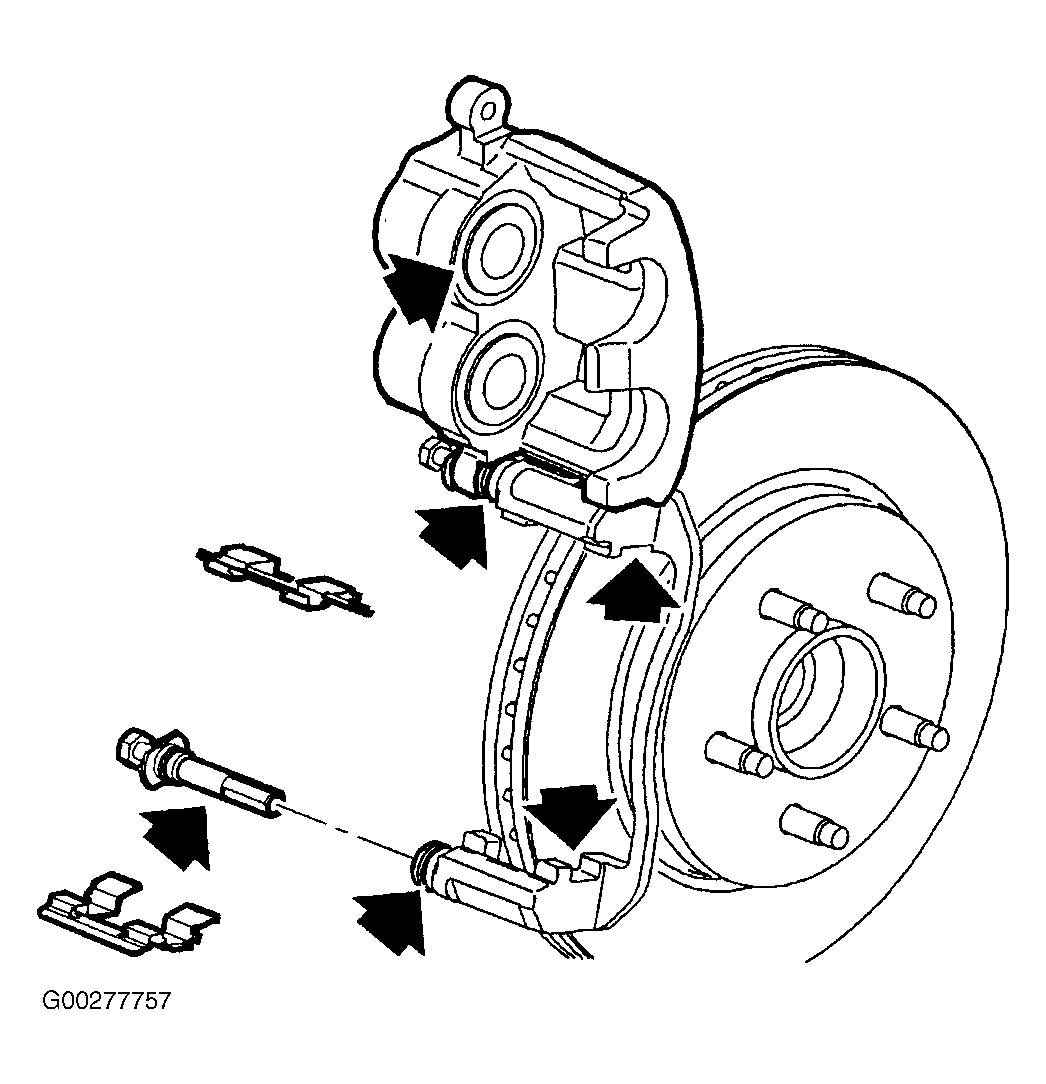

Fig 1: Exploded View Of Front Disc Brake Components

Courtesy of GENERAL MOTORS CORP.

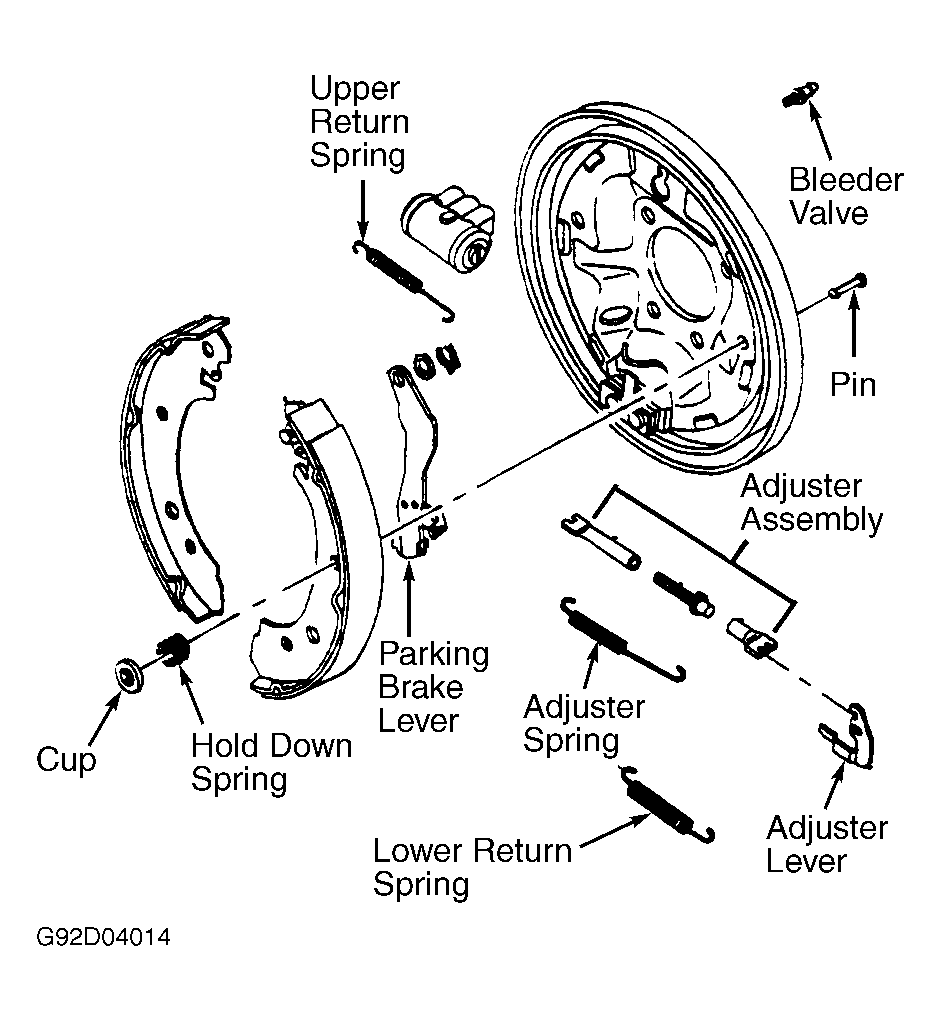

Fig 2: Exploded View Of Rear Drum Brake Assembly

Courtesy of GENERAL MOTORS CORP.
