Section 490 (Electrical Component Locator): Connectors
WARNING: This page is about a different car, the 2004 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
CONNECTORS LOCATION
| Component | Location |
|---|---|

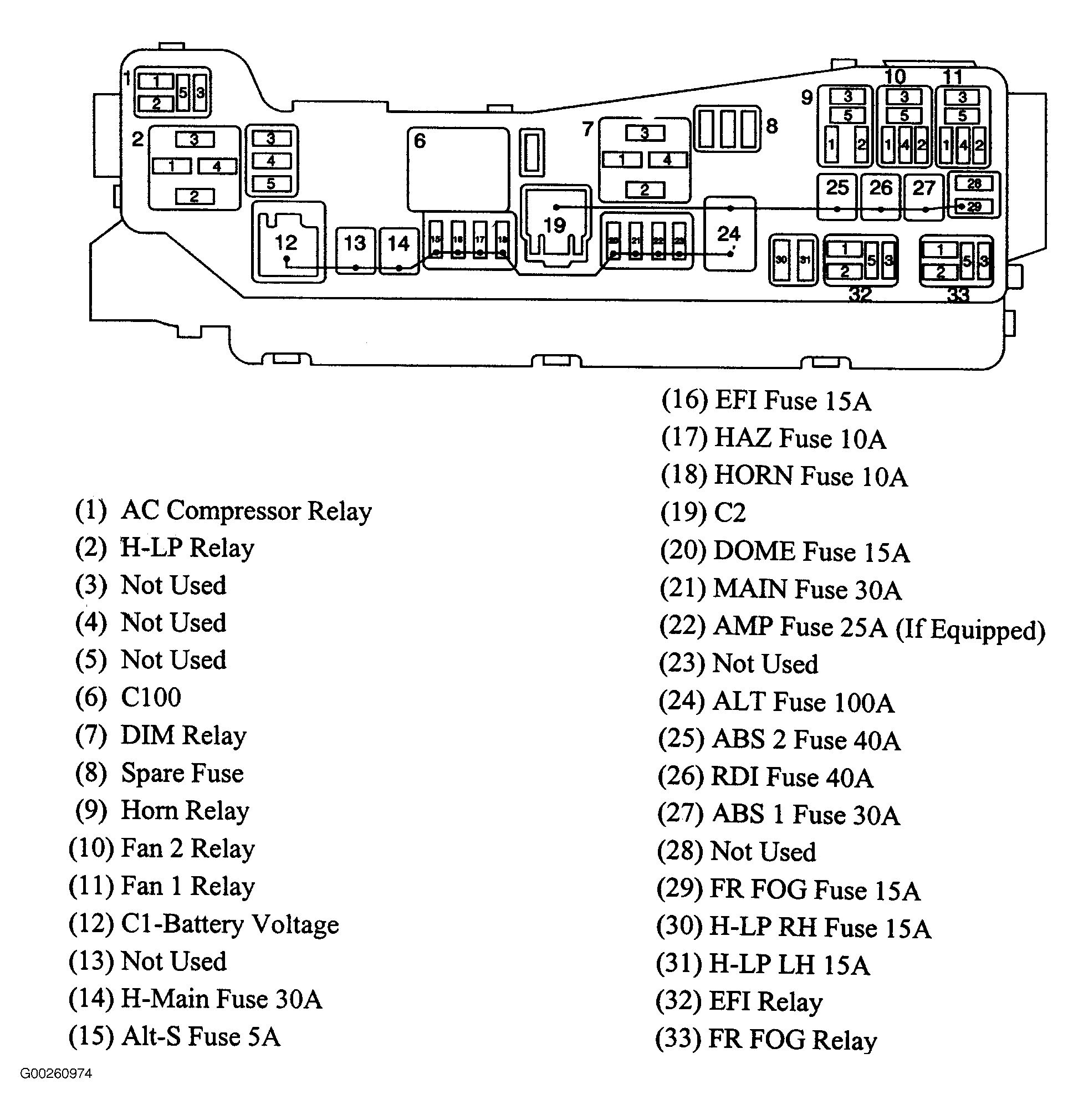

| C100 (White, 10 Pin) | Inside underhood fuse box. See Figure . |

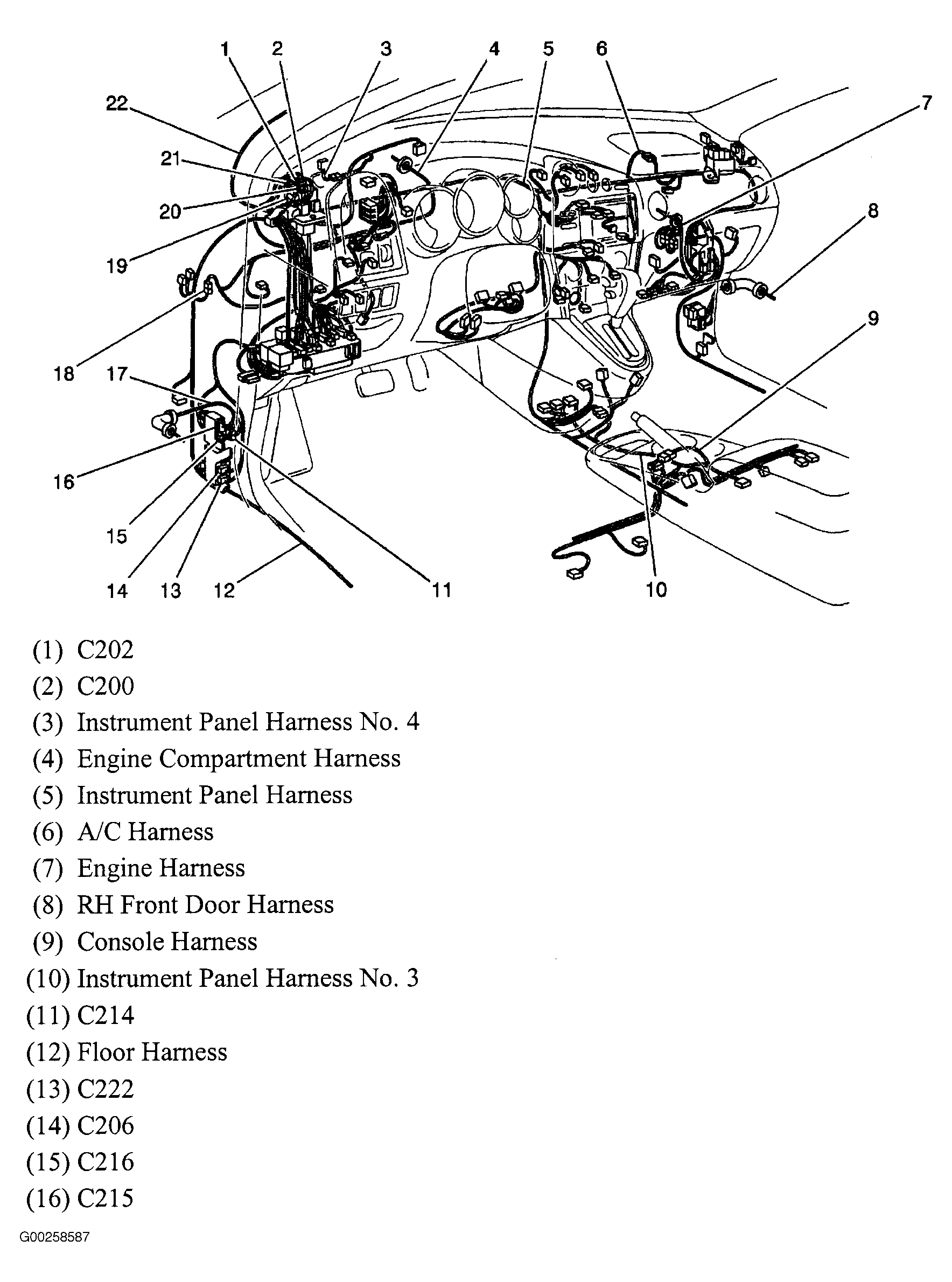

| C200 (White, 3 Pin) | Left side of dash, behind instrument cluster. See Figure . |
| C201 (Gray, 10 Pin) | In engine main harness to I/P harness, behind instrument cluster. See Figure . |
| C202 (White, 18 Pin) | Left side of dash, behind instrument cluster. See Figure . |
| C203 (White, 14 Pin) | Left side of dash, behind instrument cluster. See Figure . |
| C205 (White, 4 Pin) | Above left kick panel. See Figure . |
| C206 (White, 10 Pin) | Behind left kick panel. See Figure . |

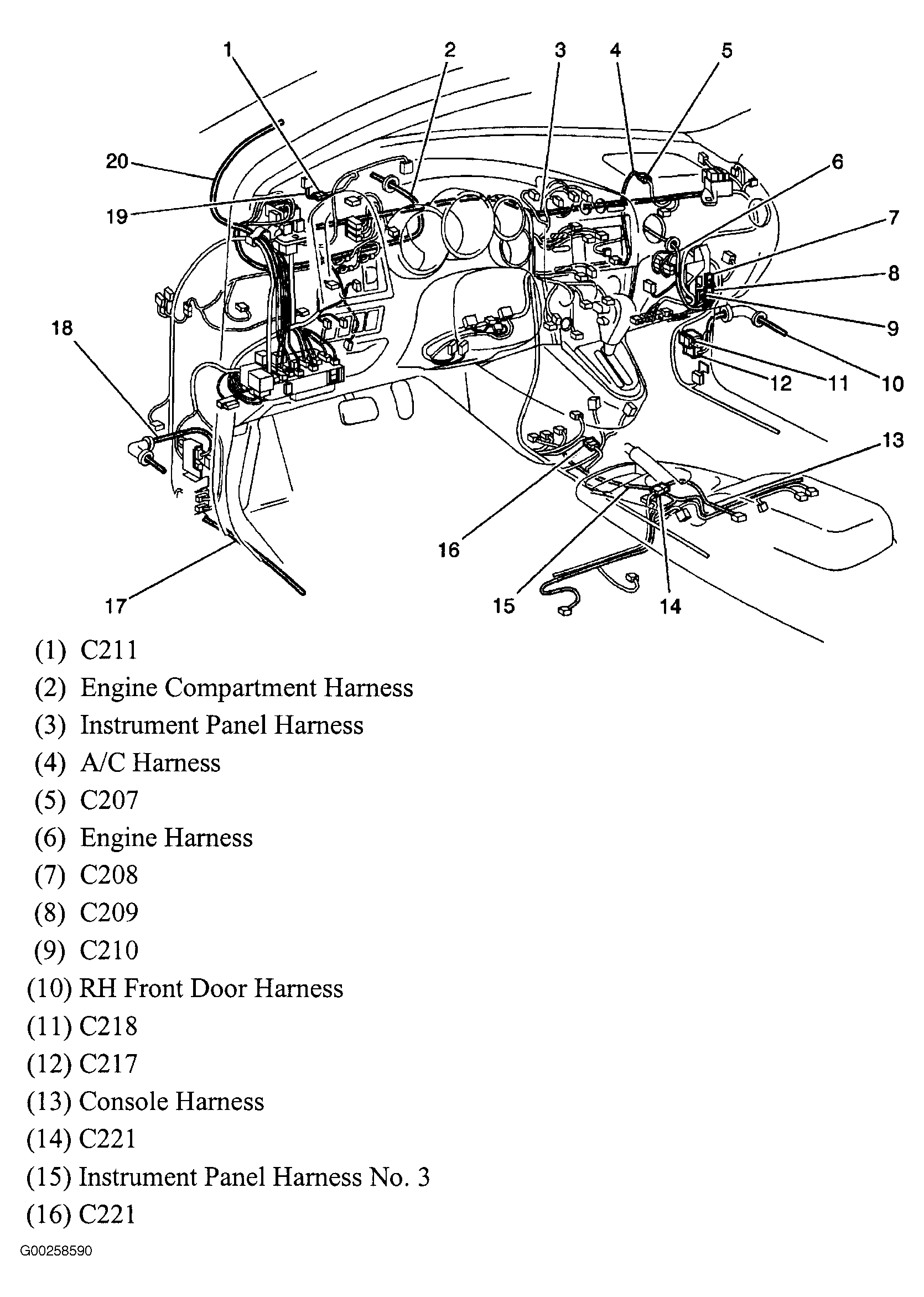

| C207 (White, 6 Pin) | Behind right side of dash. See Figure . |
| C208 (Gray, 10 Pin) | Behind right kick panel, engine accessory harness to I/P harness. See Figure . |
| C209 (White, 11 Pin) | Behind right kick panel, engine accessory harness to I/P harness. See Figure . |
| C210 (White, 18 Pin) | Behind right kick panel, instrument panel harness to engine main harness. See Figure . |
| C211 (White, 18 Pin) | Behind left side of dash. See Figure . |
| C214 (White, 10 Pin) | Behind left kick panel. See Figure . |
| C215 (Blue, 12 Pin) | Behind left kick panel. See Figure . |
| C216 (Gray, 7 Pin) | Behind left kick panel. See Figure . |
| C217 (Blue, 12 Pin) | Behind right kick panel. See Figure . |
| C218 (White, 10 Pin) | Behind right end of dash. See Figure . |
| C220 (White, 6 Pin) | Under driver's seat. |
| C221 (White, 4 Pin) | Under passenger's seat. See Figure . |
| C222 (Gray, 13 Pin) | Behind left kick panel. See Figure . |
| C223 (Gray, 2 Pin) | Attached to left center instrument panel support bracket. |
| C224 (White, 4 Pin) | Under center console. |

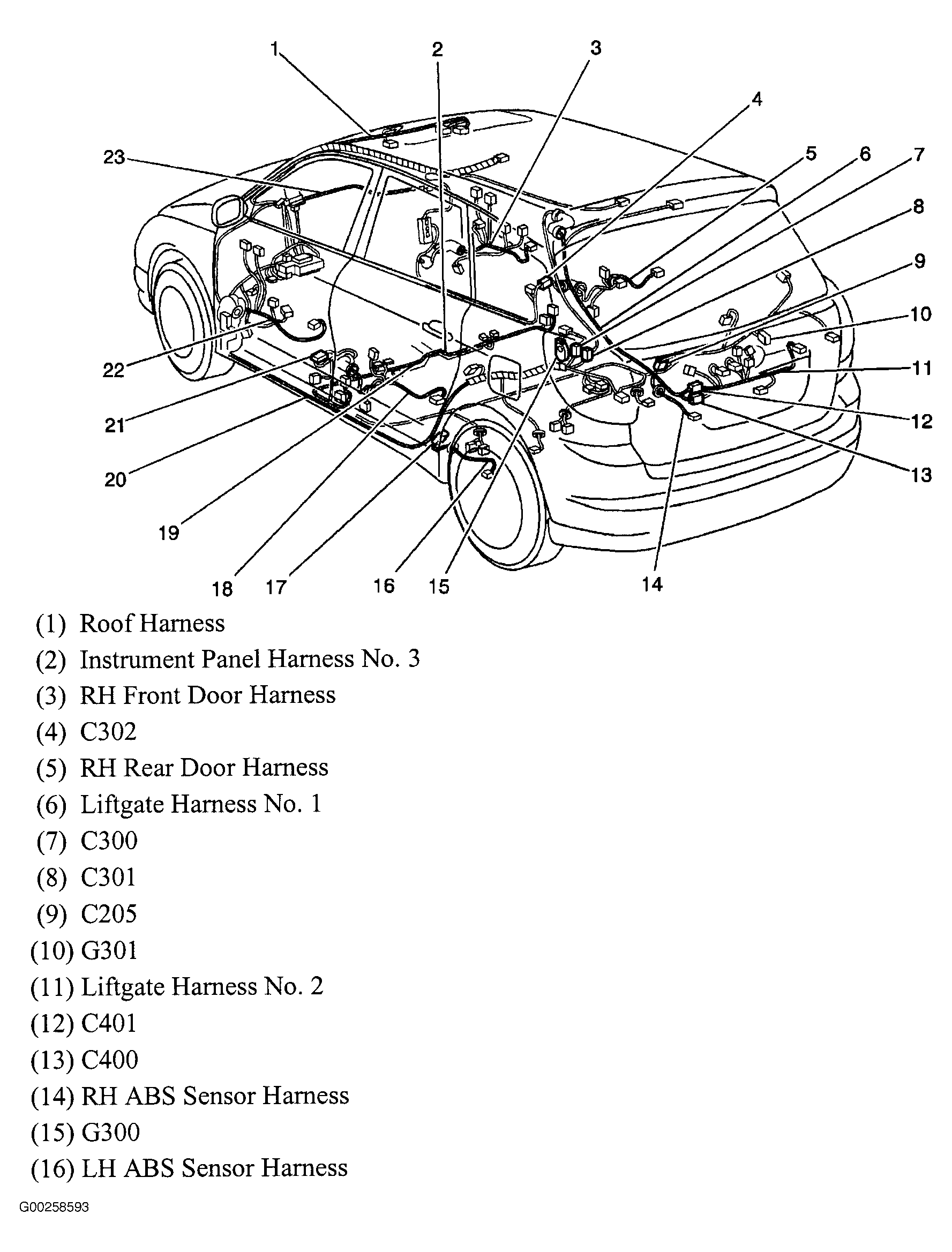

| C300 (Blue, 10 Pin) | Behind left rear upper trim panel. See Figure . |
| C301 (White, 5 Pin) | Behind left rear upper trim panel. See Figure . |
| C302 (White, 8 Pin) | Behind left rear upper trim panel. See Figure . |
| C303 (White, 8 Pin) | Behind upper right end of dash. See Figure . |
| C304 (White, 4 Pin) | Near left tail/stop light. |
| C305 (White, 4 Pin) | Near right tail/stop light. |
| C306 (White, 11 Pin) | At base of right "B" pillar. |
| C400 (White, 4 Pin) | In liftgate. See Figure . |
| C401 (Blue, 8 Pin) | In liftgate. See Figure . |
