Brake Caliper Inspection
WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
- Inspect the brake caliper housing for cracks, excess wear, and/or damage. If any of these conditions are present, the brake caliper requires replacement.

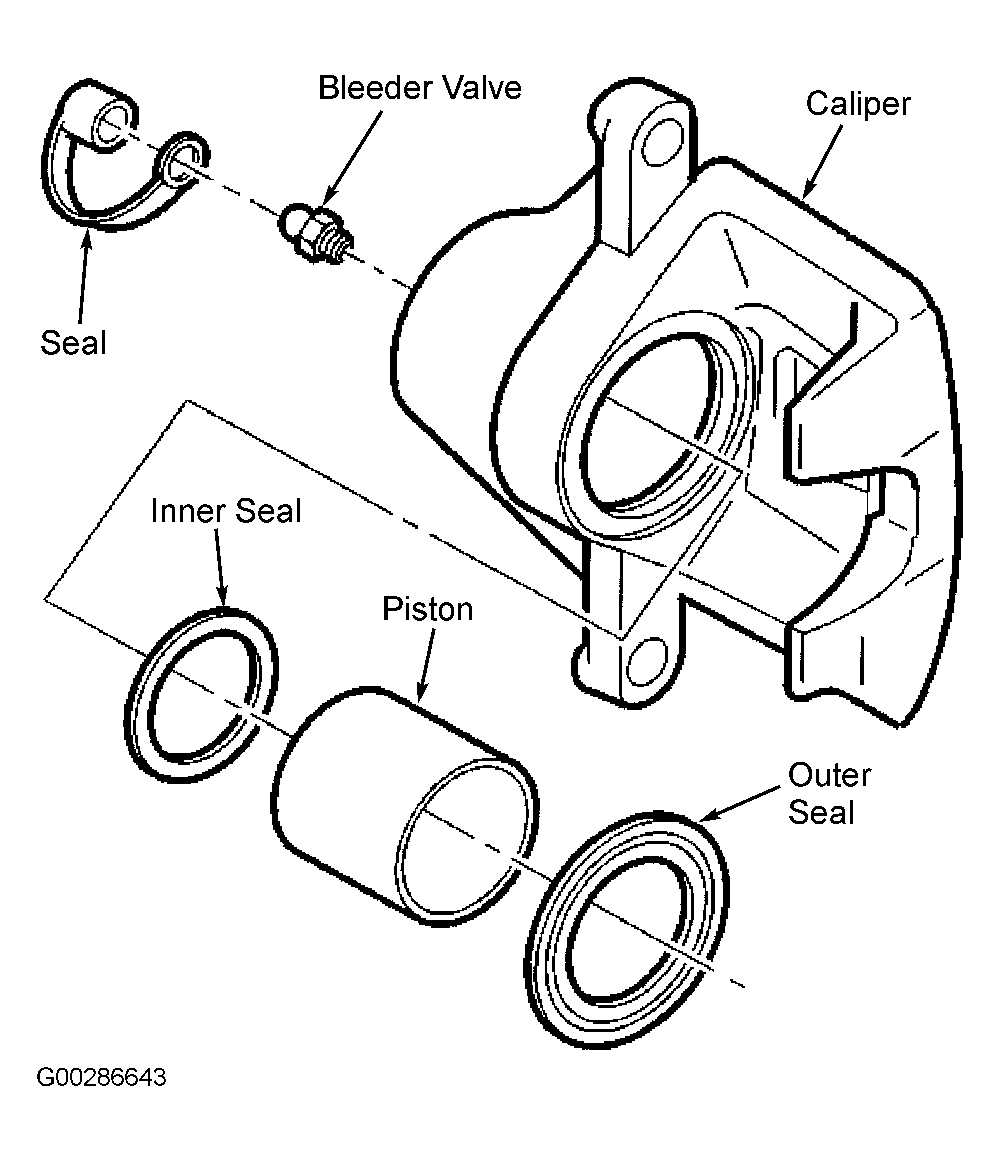

- Inspect the caliper piston dust boot seal for cracks, tears, cuts, deterioration and/or improper seating in the caliper body. If any of these conditions are present, the brake caliper requires overhaul or replacement. See Fig 1 .
- Inspect for brake fluid leakage around the caliper piston dust boot seal and on the disc brake pads. If there is any evidence of brake fluid leakage, the brake caliper requires overhaul or replacement.
- Inspect for smooth and complete travel of the caliper piston, or pistons, into the caliper bore, or bores: The movement of a caliper piston into a caliper bore should be smooth and even. If a caliper piston is frozen or difficult to bottom, the caliper requires overhaul or replacement:

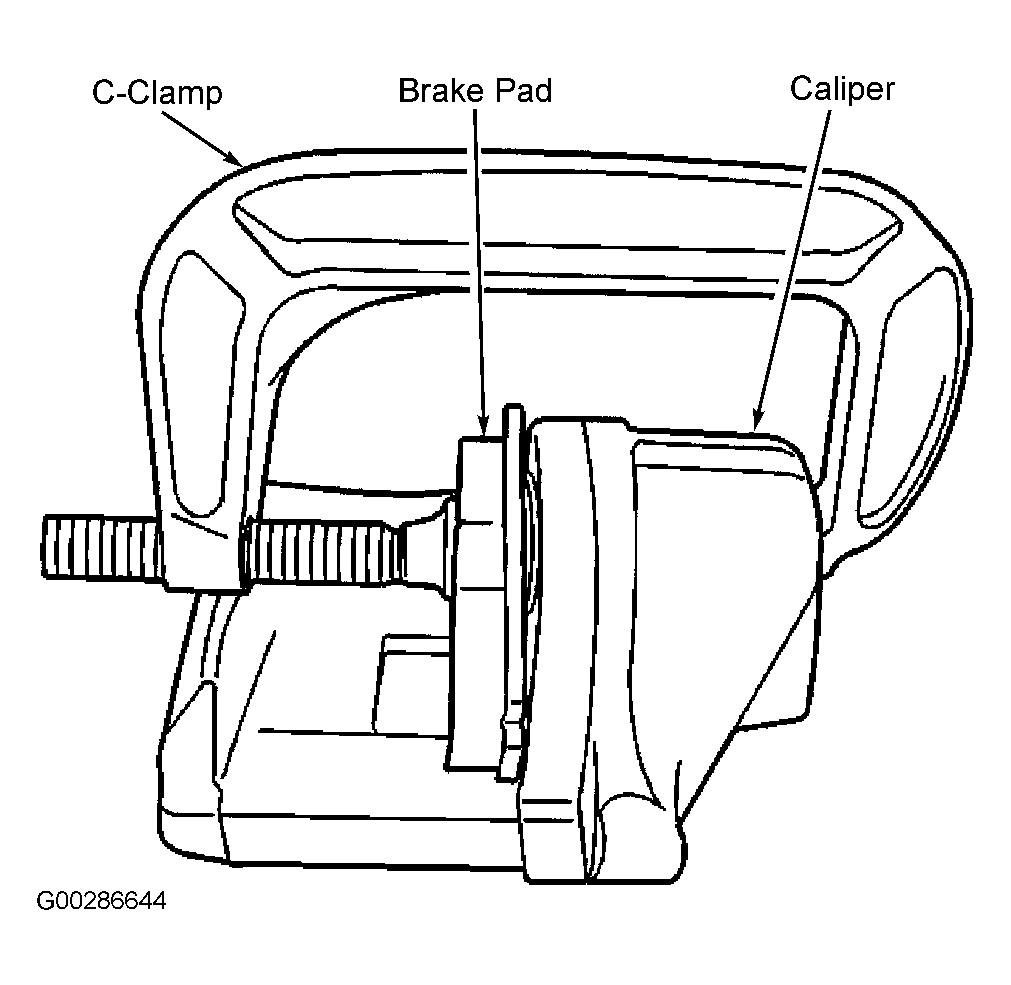

- For single piston caliper applications, insert a discarded inner brake pad or block of wood in front of the piston. Using a large C-clamp installed over the body of the caliper and against the brake pad or block of wood, slowly bottom the piston in the bore. See Fig 2 .
- For dual piston caliper applications, insert a discarded inner brake pad or block of wood in front of the pistons. Using 2 large C-clamps installed over the body of the caliper and against the brake pad or block of wood, slowly bottom the pistons evenly into the bores.
