Disc Brake Hardware: Installation

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply a thin coat of NIGLUBE(R) to the caliper guide pin. Install new caliper pin bolt boots to the caliper. See Fig 1 .
  2. Install the brake caliper bracket. Install the brake pad retainers to the caliper bracket. Install the brake pads to the caliper bracket.
  3. Remove the heavy mechanics wire. Install the brake caliper.

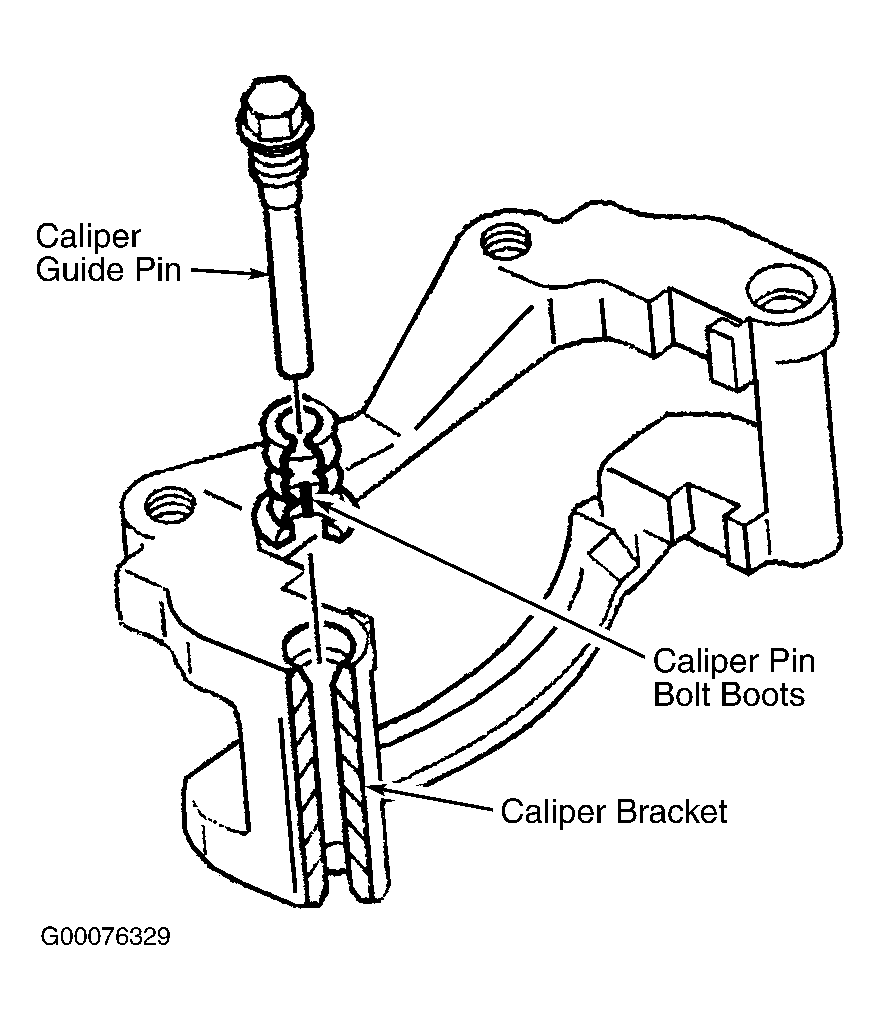

Fig 1: Replacing Disc Brake Hardware
G00076329Courtesy of GENERAL MOTORS CORP.
