Brake Pedal Assembly: Installation

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the brake pedal assembly onto the booster studs. Install the booster stud mounting nuts and tighten to specifications. See TORQUE SPECIFICATIONS  . Install the brake pedal to cowl studs mounting nuts and tighten to specifications. See TORQUE SPECIFICATIONS  . See Fig 1 .
  2. Apply lubricant, GM P/N 1050109, or equivalent, to brake pedal clevis pin. Install the pushrod onto brake pedal clevis pin. Install the brake pedal foam spacer to the brake pedal clevis pin. Install the pushrod retainer to the brake pedal clevis pin. Install the accelerator control cable.
  3. Install the electrical connectors to the stop lamp/ABS/shift lock switch. Install the stop lamp/ABS/shift lock switch. Install the TCC/cruise control release switch. Install the I/P assembly.

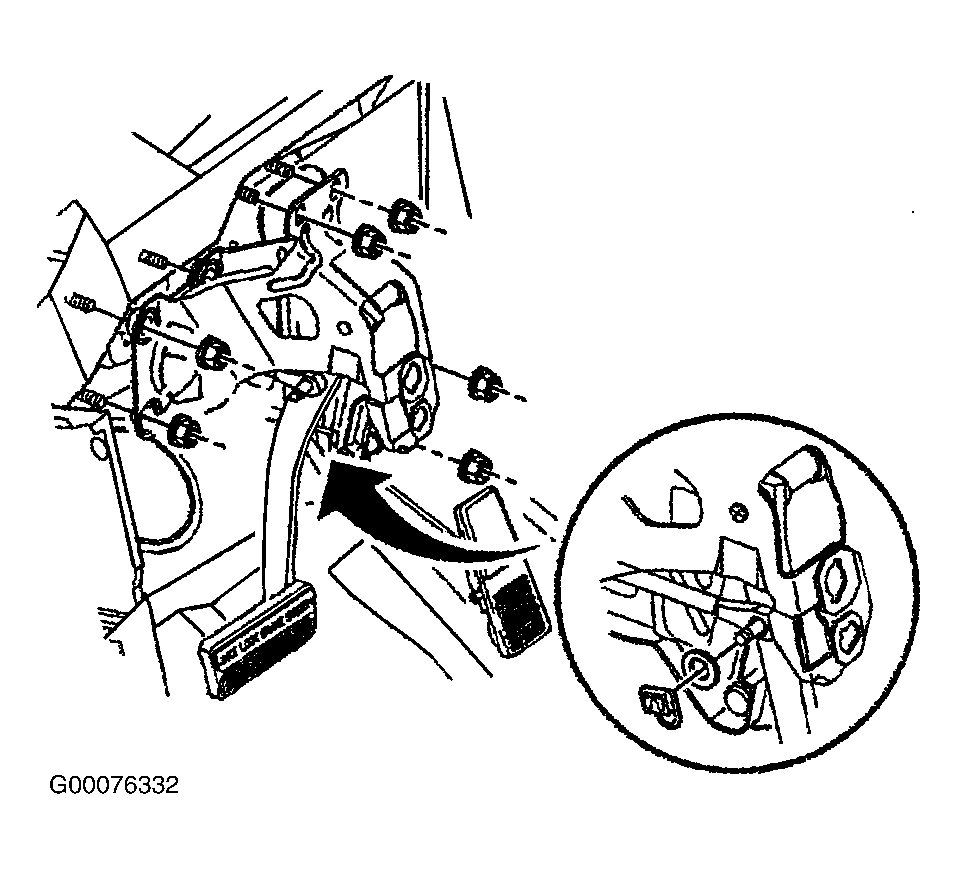

Fig 1: Removing & Installing Brake Pedal Assembly
G00076332Courtesy of GENERAL MOTORS CORP.
