Stabilizer Shaft Link: Installation

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

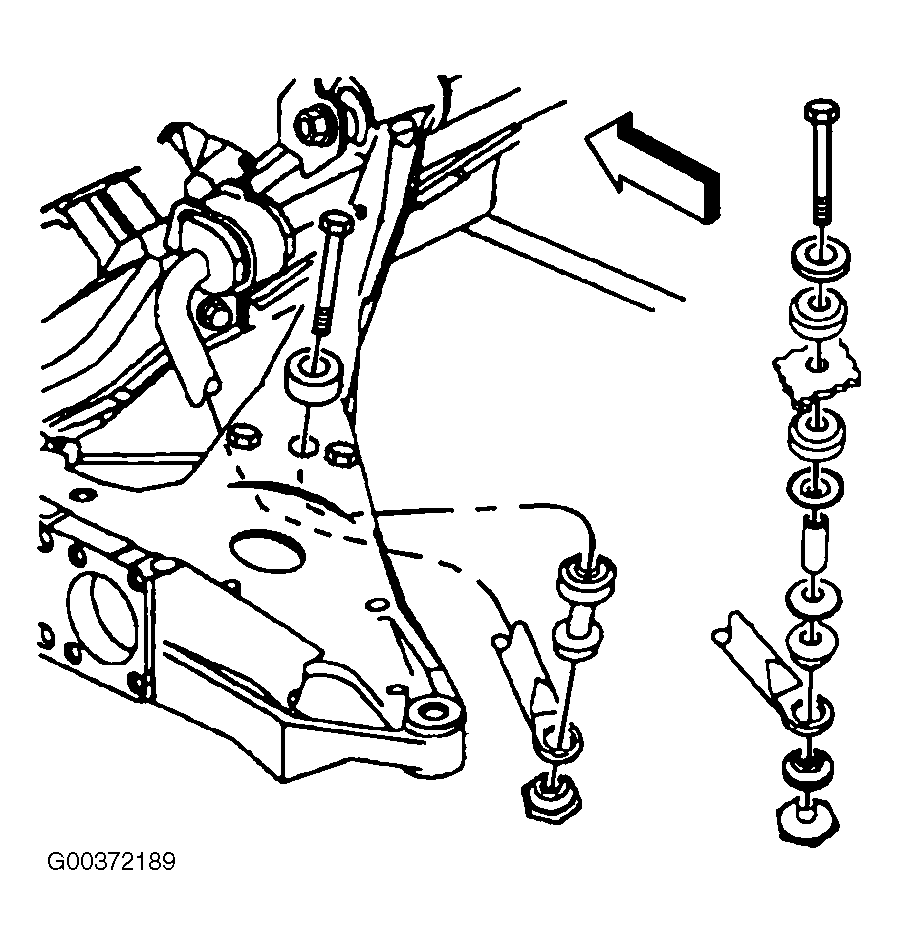

  1. Loosely install the stabilizer link insulators, washers, nut and bolt. See Figure. Tighten the stabilizer link nut to 13 Ft. Lbs. (17 N.m).
  2. Lower the vehicle.
