Stabilizer Shaft Insulator: Installation

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

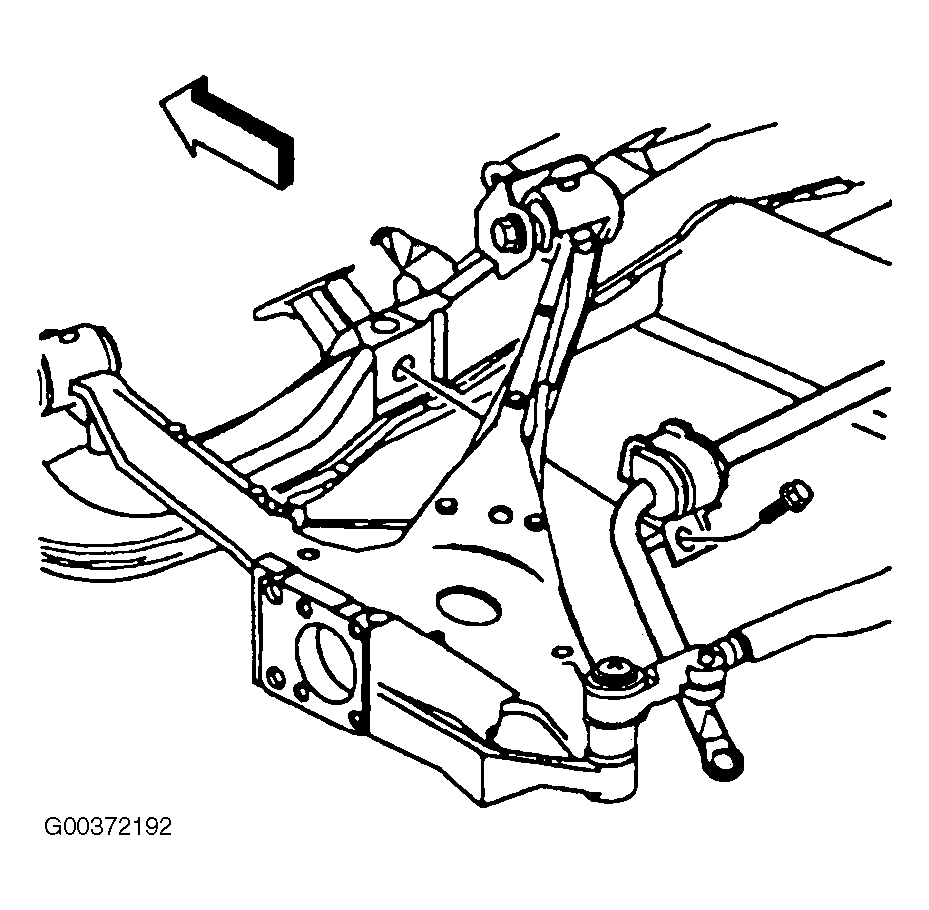

  1. Install the stabilizer shaft and insulators. Install the insulator into the clamp with slit forward. See Figure.
  2. Bend the stabilizer shaft bend link downward to close around the insulator. Ensure that the stabilizer shaft is centered and install the clamp bolt. See Figure.
  3. Install the link assembly insulators, retainers and the support bolt and nut. See Figure.
    • Tighten the link assembly nut and bolt to 11 Ft. Lbs. (15 N.m).
    • Tighten the clamp bolt to 24 Ft. Lbs. (33 N.m).
  4. Lower the vehicle.
