Shock Absorber: Installation

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

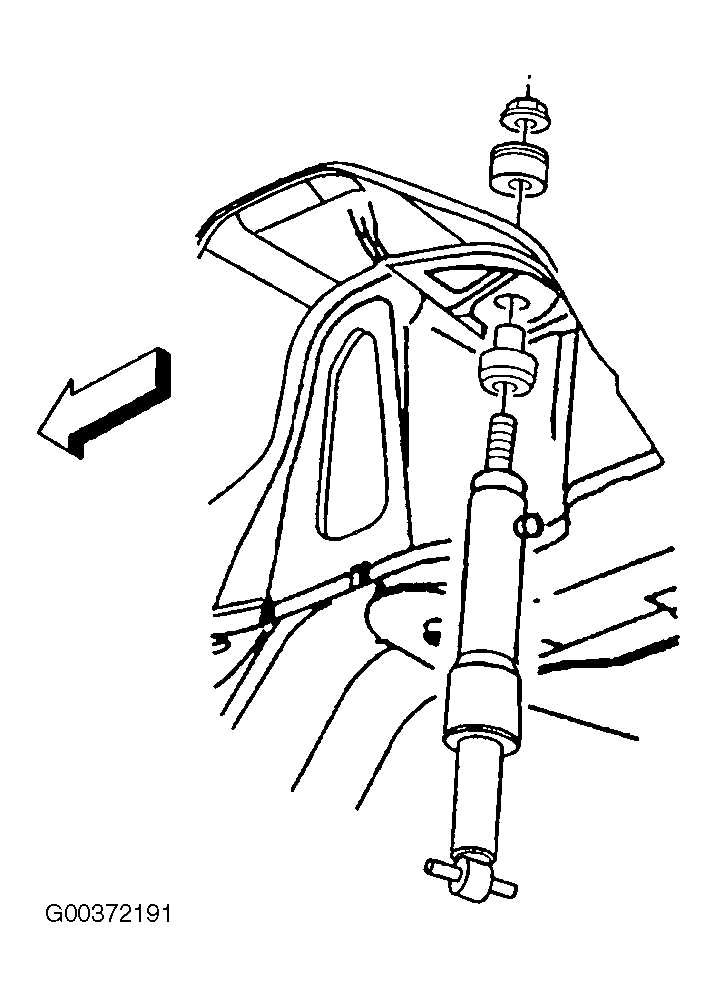

  1. Install the shock absorber to the vehicle. See Figure.

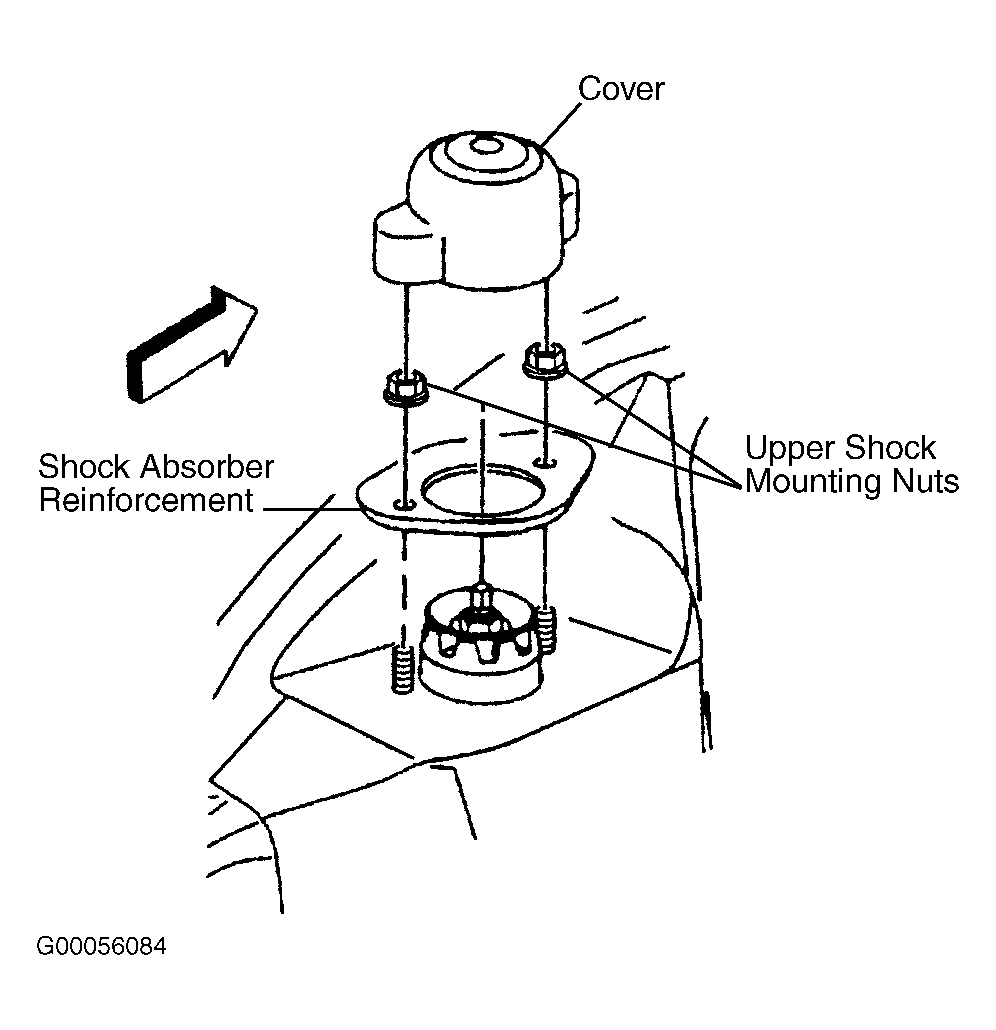

  2. Install the shock reinforcement, and the retaining nuts. See Figure. Tighten the shock absorber upper retaining nuts to 15 Ft. Lbs. (20 N.m).
  3. Install the shock cover.
  4. Install the trunk trim.
  5. Install the shock absorber lower retaining bolts. See Figure. Tighten the shock absorber lower retaining bolts to 18 Ft. Lbs. (24 N.m).
  6. Connect the automatic level control air tube to the shock.
  7. Install the tire and wheel.
  8. Lower the vehicle.
