Hub & Bearing Assembly: Installation

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

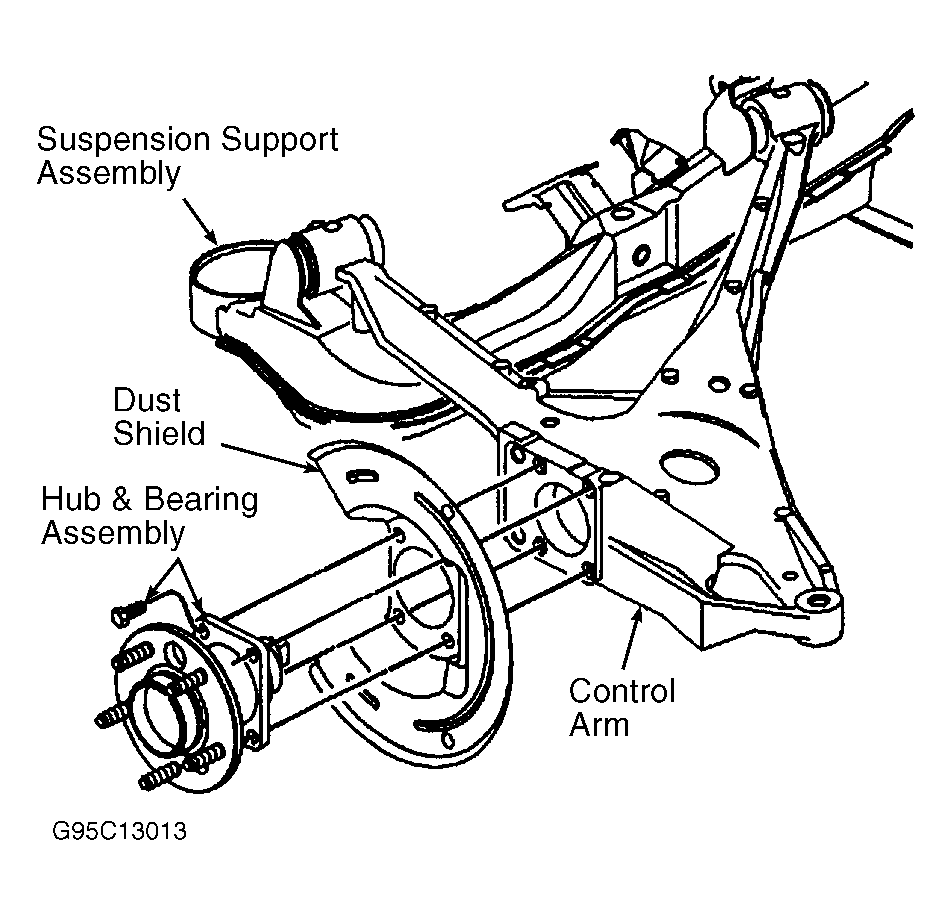

  1. Install the brake shield and the hub and the bearing to the control arm with the 4 bolts. See Figure. Tighten the hub and bearing bolts to 52 Ft. Lbs. (70 N.m).
  2. Connect the ABS sensor harness connector.
  3. Install the brake rotor. See BRAKE ROTORS .
  4. Install the tire and wheel.
  5. Lower the vehicle.
