Coil Spring: Removal
WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Tools Required: Steering Linkage & Tie Rod Puller (J-24319-B).
- Raise and support the vehicle.
- Remove the tires and wheels.
- Support the control arm with a suitable jack.
- Remove the automatic level control air tube from the shock.
- Remove the lower shock absorber retaining bolts. See Fig 1.

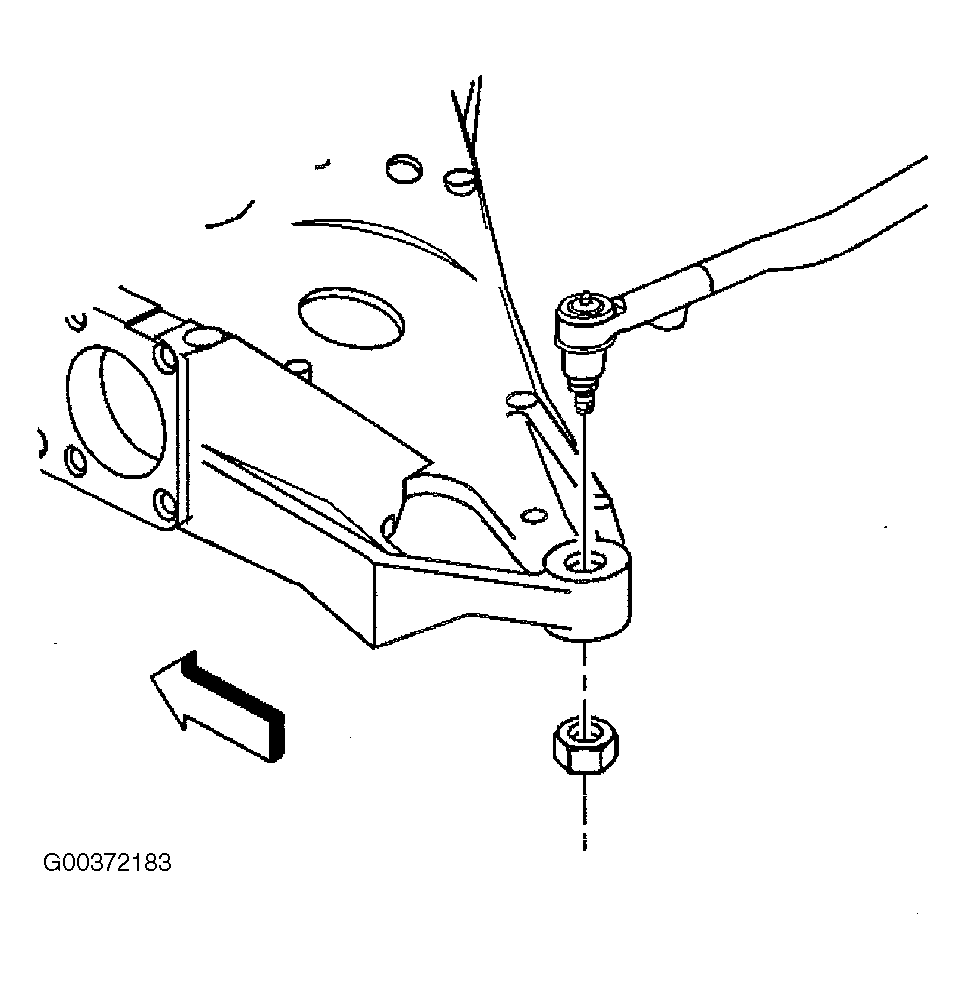

- Remove the adjustment link retaining nut. See Figure.
- Using J-24319-B separate the adjustment link from the lower control arm. See Figure.
- Slowly lower the control arm until it bottoms on the support assembly.
- Using a pry bar, pry under the lower spring insulator and remove the spring with the insulator.

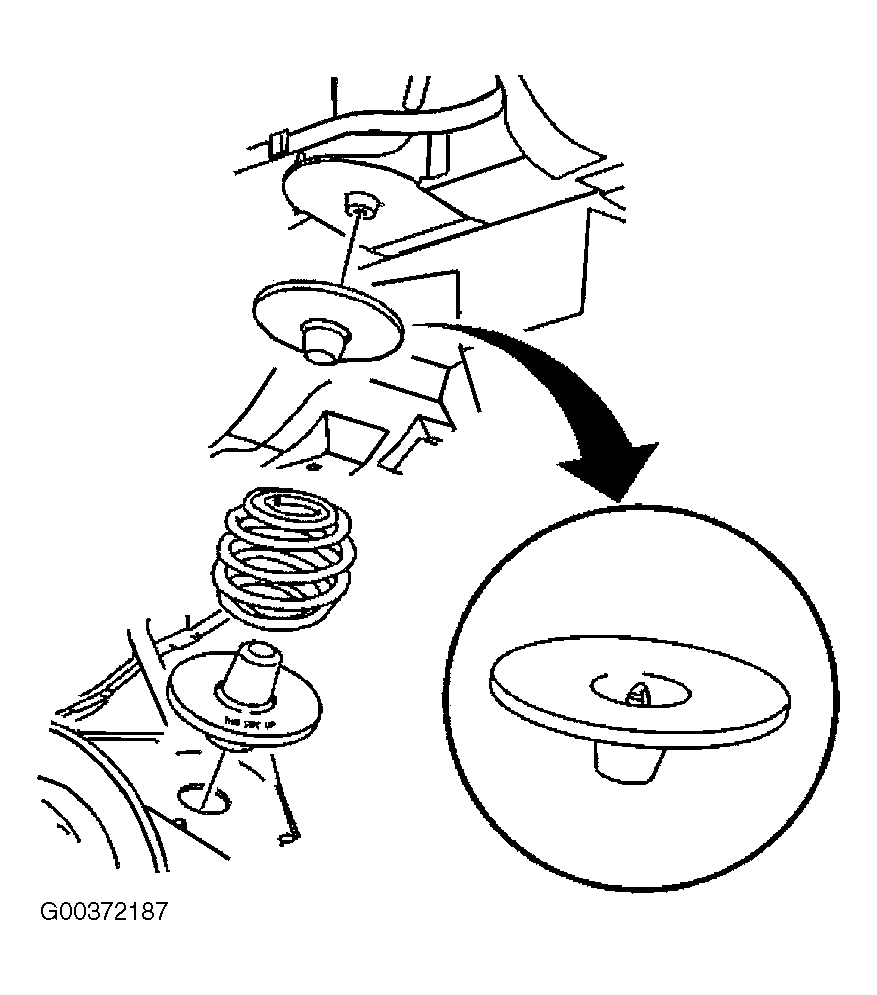

- Remove the upper insulator by pulling downward. See Fig 2.
