Body Mount (Front): Removal

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle.
  2. Remove the tire and wheels.
  3. Remove the exhaust system.
  4. Use a jack stand in order to support the forward end of the rear suspension support assembly.
  5. Remove the brackets from the body retaining bolts. See Fig 1.
  6. Remove the bolts that secure the front of the support assembly to the body of the vehicle.
  7. Lower the front end of the support assembly in order to enable mount removal.
  8. Use a punch in order to perform the following actions:
    1. Bend the tabs on the inboard mount. See Fig 2.
    2. Tap the mount downward and out of the support assembly.
Fig 1: Removing Brackets From Body Retaining Bolts
G00372185Courtesy of GENERAL MOTORS CORP.

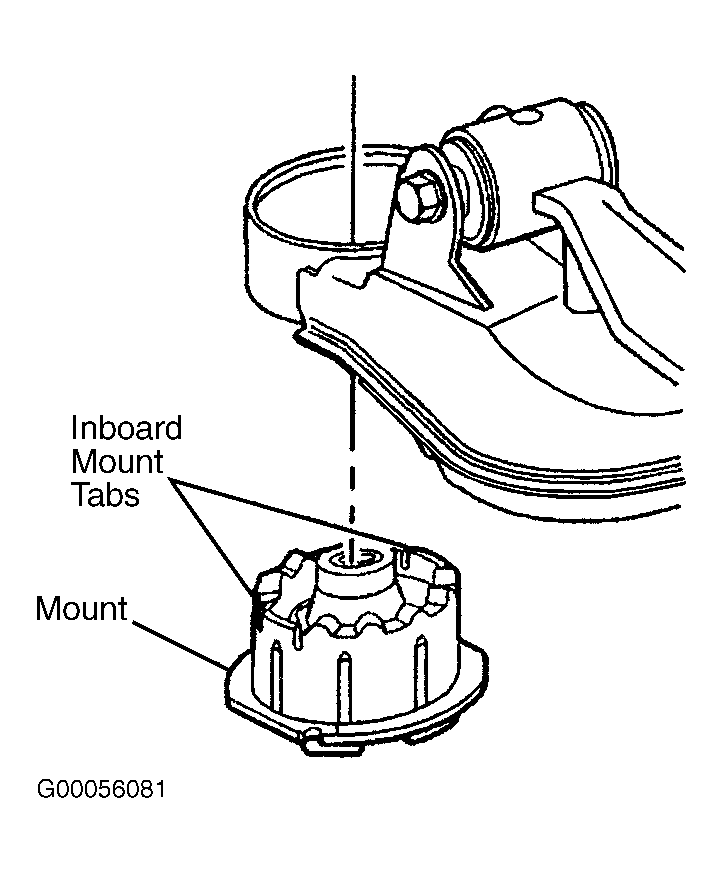

Fig 2: Removing Forward Body Mount
G00056081Courtesy of GENERAL MOTORS CORP.
