Adjustment Link: Installation

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

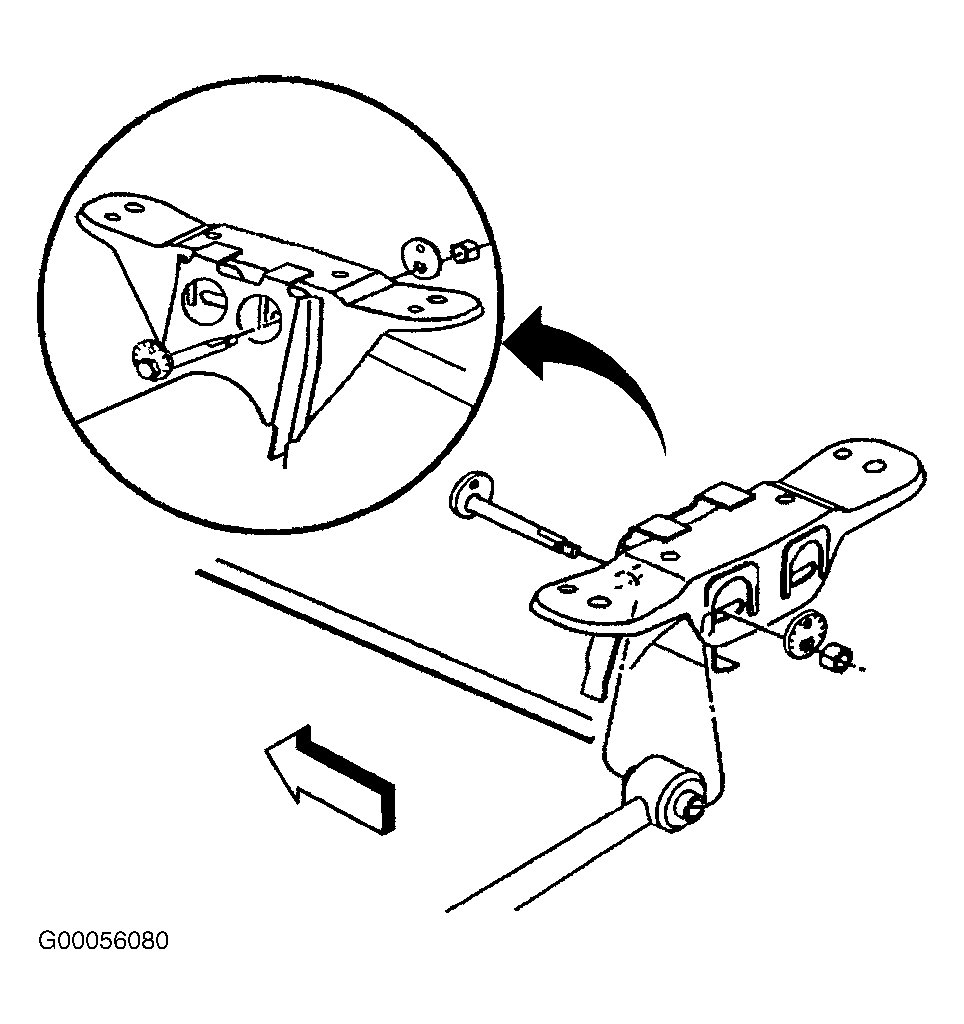

  1. Install the adjustment link to the vehicle. See Figure.
  2. Install the adjustment link inner bolt and nut.
  3. Raise the rear support to the vehicle.
  4. Install the rear support mounting bolts. Tighten the rear support mounting bolts to 141 Ft. Lbs. (191 N.m).
  5. Install the adjustment link to the lower control arm.
  6. Install the adjustment link retaining nut. See Figure. Tighten the adjustment link retaining nut to 22 Ft. Lbs. (30 N.m) plus an additional 180 degrees.
  7. Install the tire and wheel.
  8. Lower the vehicle.
  9. Adjust the rear toe.
