Flywheel/Flex Plate Torque

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

Tighten the engine flywheel bolts in sequence to 100 N.m (74 lb ft).

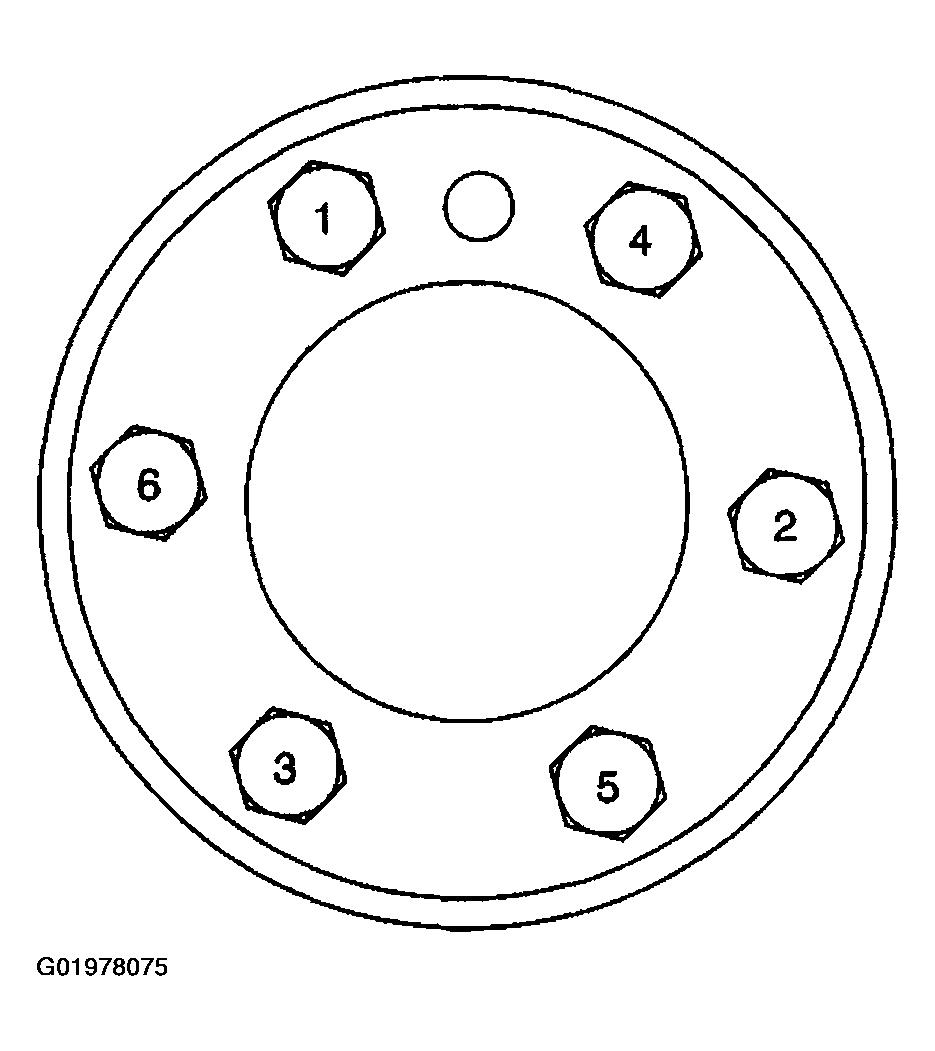

Fig 1: Engine Flywheel Bolts Tightening Sequence
G01978075Courtesy of GENERAL MOTORS CORP.
