Removal & Installation (Head Impact)

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

Before proceeding, see AIR BAG SAFETY PRECAUTIONS . Disable air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM .
Remove headliner. See HEADLINER . Unsnap applicable air bag tether retainer and remove tether from A-Pillar. Remove head impact air bag module bolts. Remove head impact air bag module. Remove plastic guides and clips. See Fig 1.
NOTE: Plastic guides and clips are designed for one time use. Always use new clips and guides when installing head impact air bag module. Install air bag module working from rear to front of vehicle.
To install, reverse removal procedure. Install new clips and guides supplied with head impact air bag module. Tighten head impact air bag module bolts to specification. See TORQUE SPECIFICATIONS . Activate air bag system.

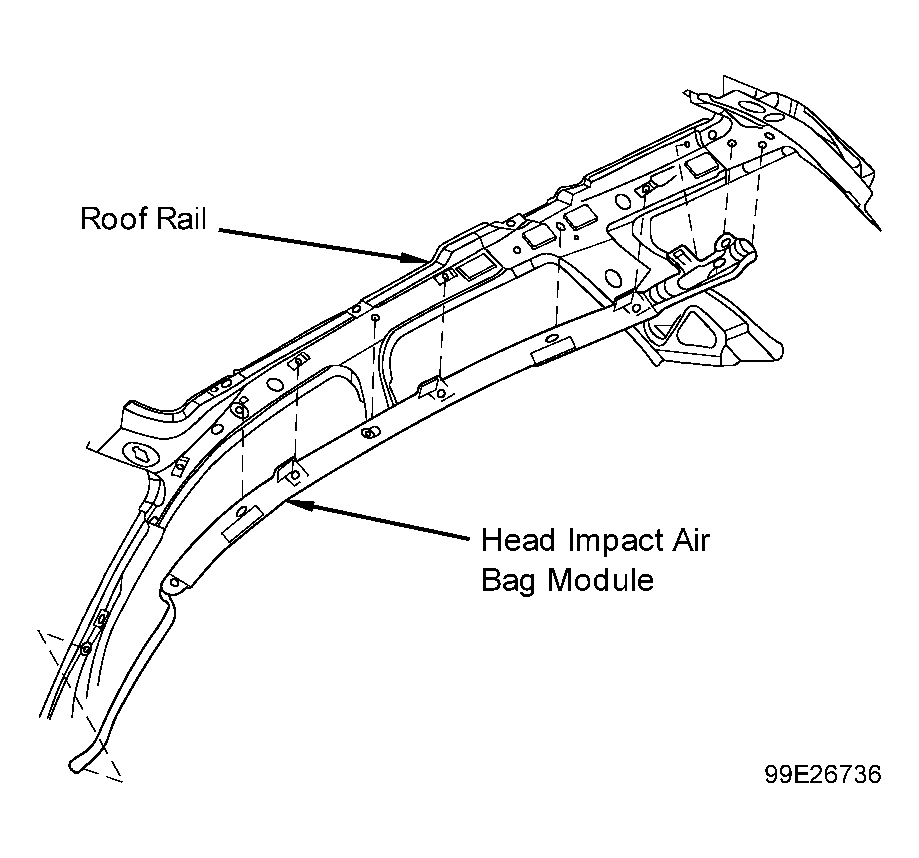

Fig 1: Identifying Head Impact Air Bag Module

Courtesy of GENERAL MOTORS CORP.
