Activating System

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

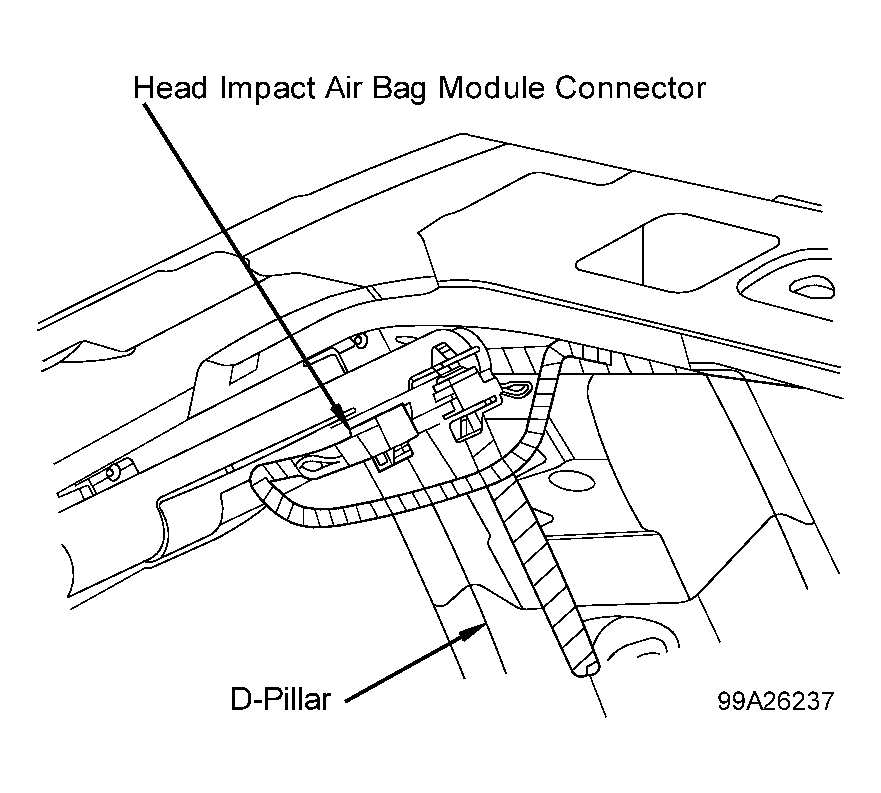

  1. Ensure ignition is off and key is removed. Connect driver and passenger head impact air bag module connectors. See Figure. Install Connector Position Assurance (CPA) clips. Raise headliner and install coat hooks. Install left and right D-pillar trim panels. Install rear upper head liner trim panel.

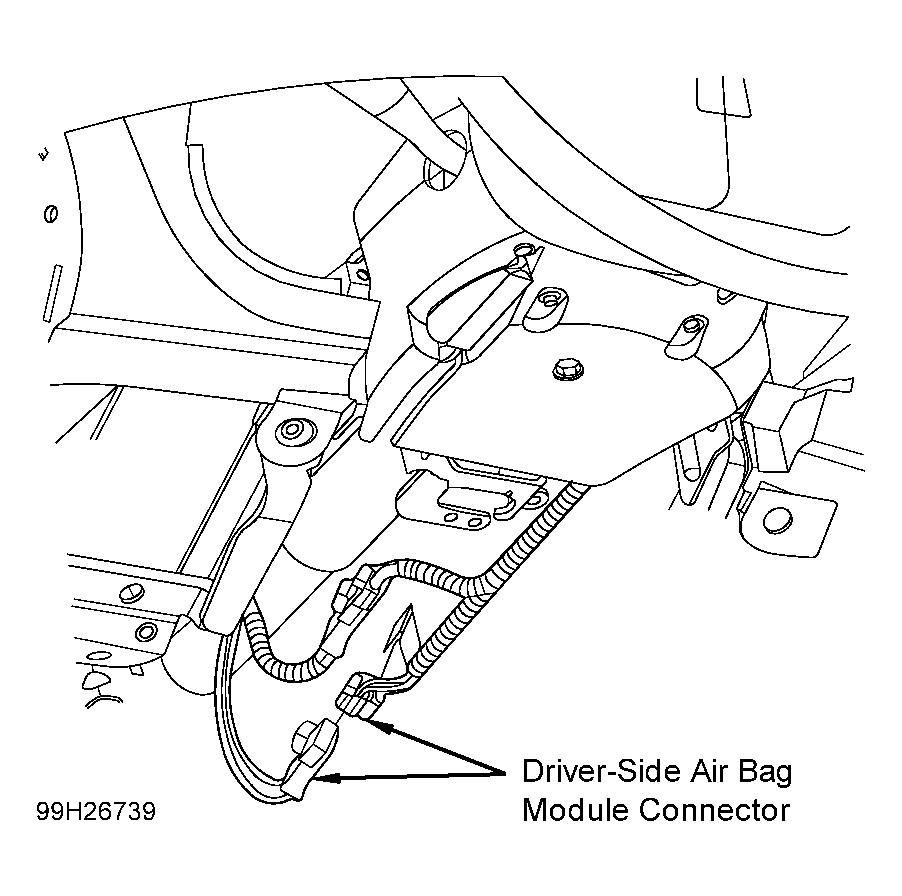

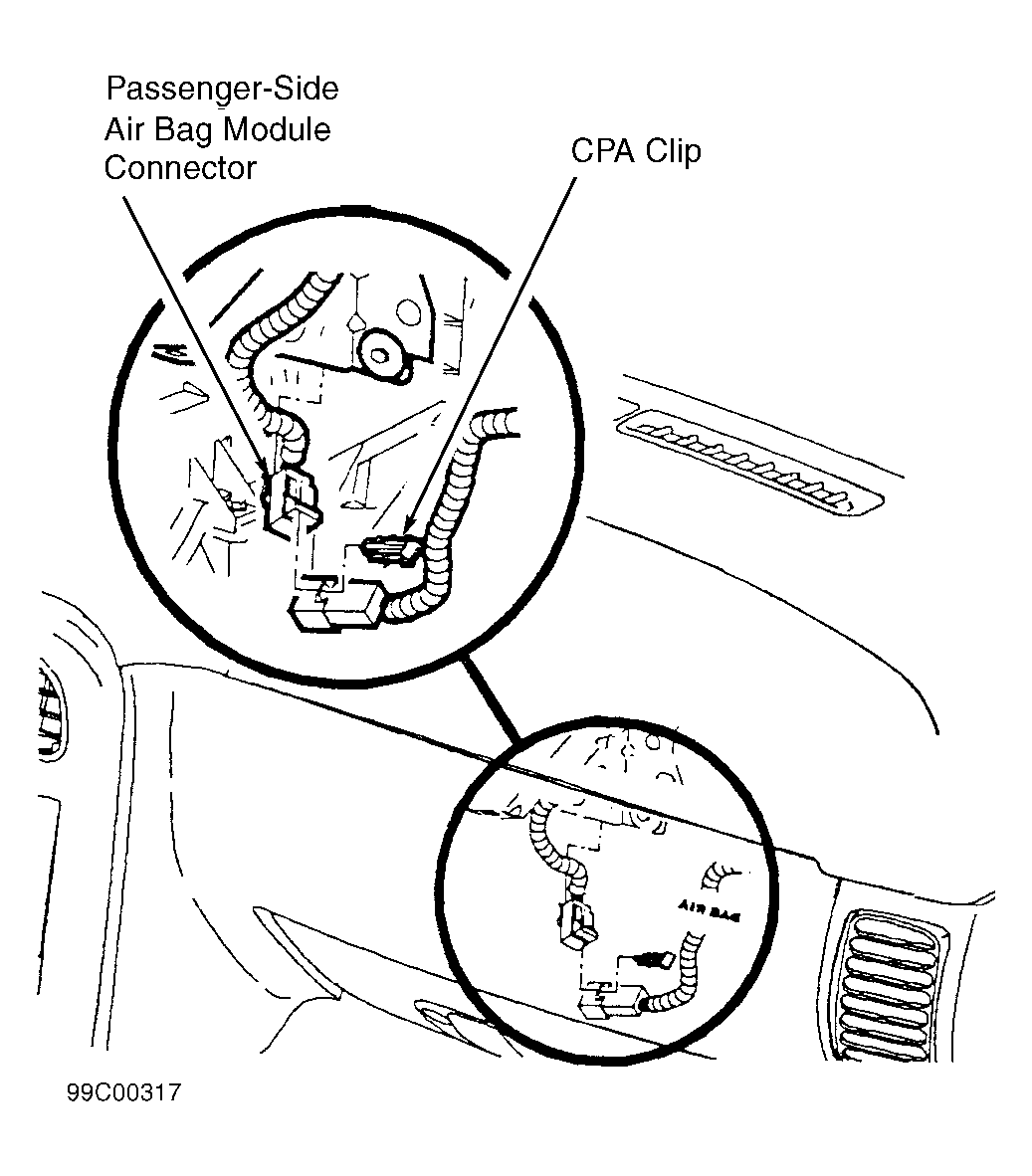

  2. Connect passenger-side air bag module connector. See Figure. Install CPA clip. Connect driver-side air bag module connector. See Figure. Install CPA clip. Install AIR BAG fuse. Check SIR system for proper operation. Go to SYSTEM OPERATION CHECK .
