Zone 3

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn steering wheel to place vehicle wheels in straight-ahead position. Turn ignition off and remove key.

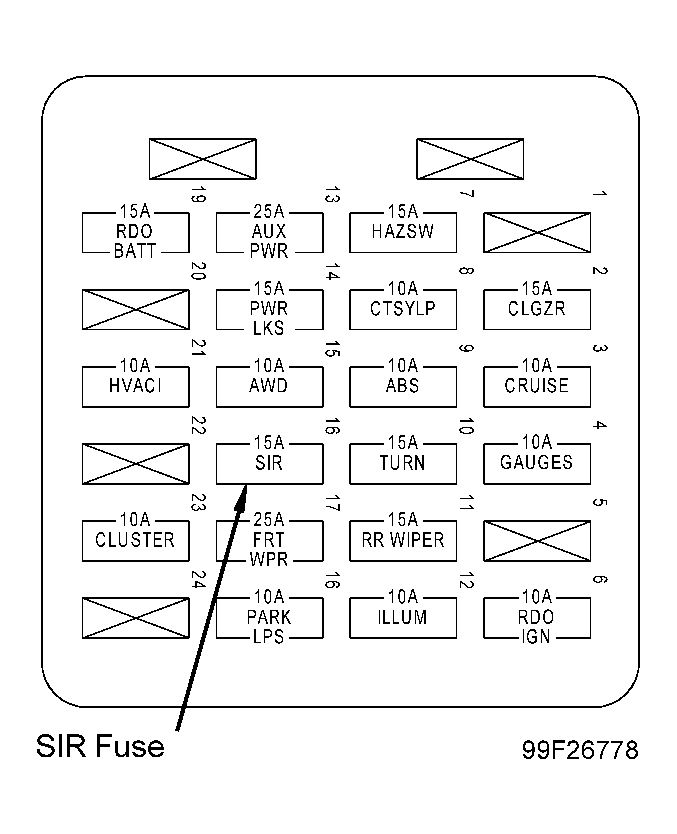

  2. Remove SIR fuse, located in instrument panel fuse block on left end of instrument panel. See Figure. Remove driver-side knee bolster. Remove Connector Position Assurance (CPA) clip from driver-side air bag module connector. See Fig 1. Disconnect driver-side air bag module connector.

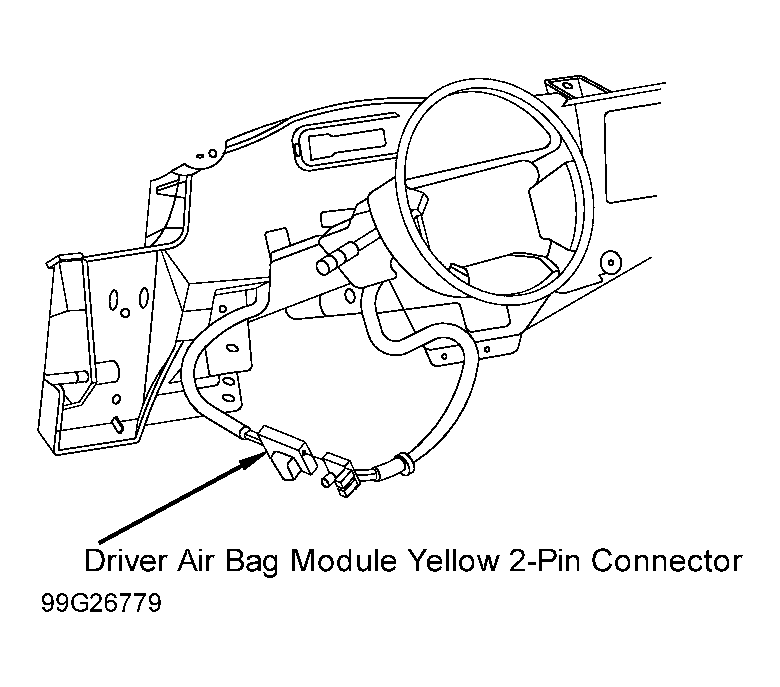

Fig 1: Identifying Driver-side Air Bag Module Yellow 2-pin Connector
G99G26779Courtesy of GENERAL MOTORS CORP.
