Zone 6

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

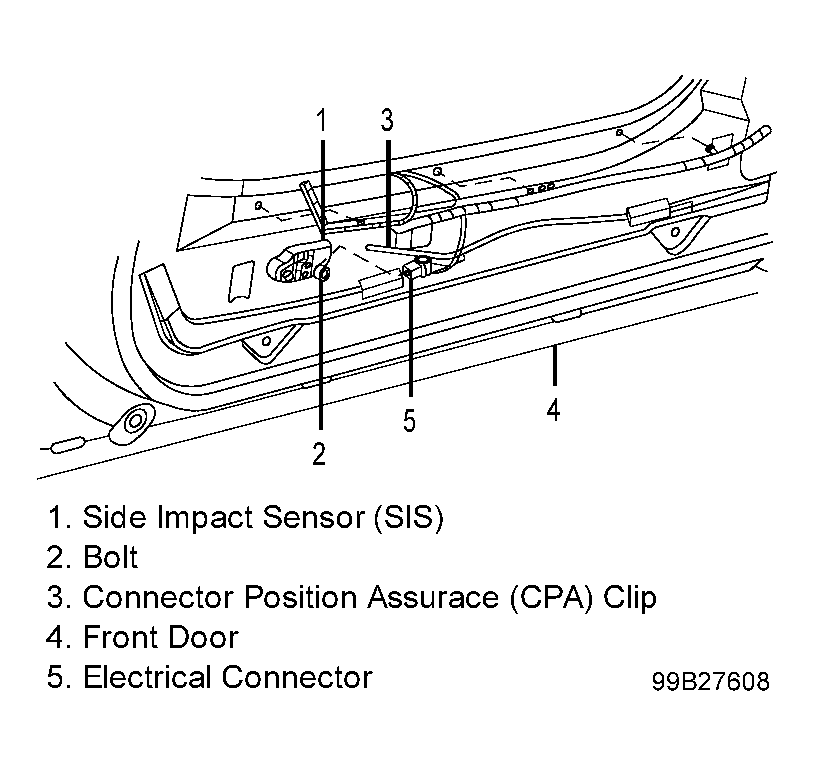

  1. Connect electrical connector to passenger-side Side Impact Sensor (SIS). See Figure. Install Connector Position Assurance (CPA) clip. Install passenger-side door trim panel.
  2. Install SIR fuse in fuse block. See Figure. Staying well away from air bag modules, turn ignition on. Check air bag system for proper operation. See SYSTEM OPERATION CHECK .
