Without Centering Window Or Service Lock

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

Hold SIR coil assembly face up. See Fig 1. Rotate coil hub in direction of arrow until it stops. Rotate coil hub in opposite direction 2 1/2 turns. Prevent coil hub from moving until installed on steering column.

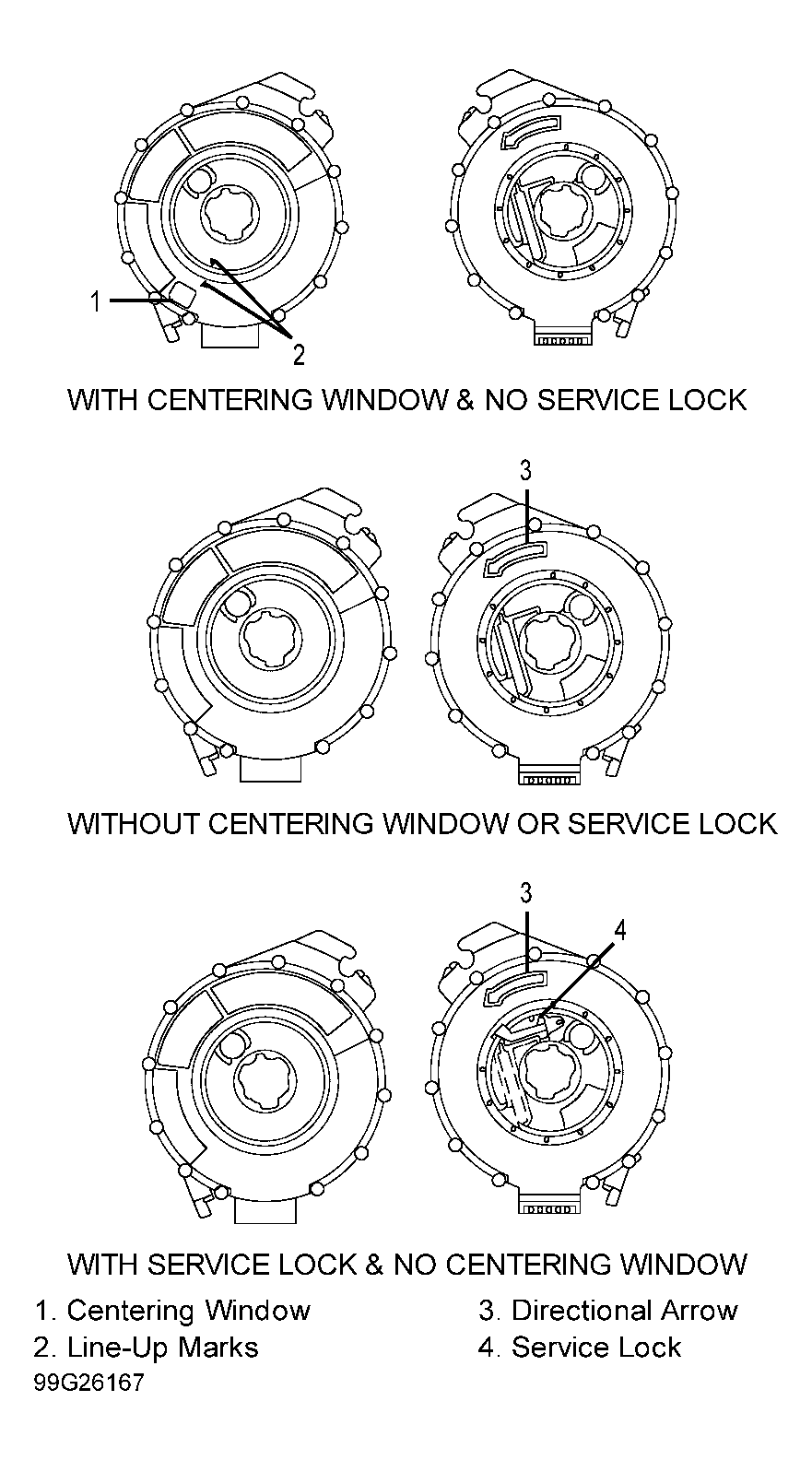

Fig 1: Identifying SIR Coil Assembly Types

Courtesy of GENERAL MOTORS CORP.
