Zone 1

WARNING: This page is about a different car, the 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

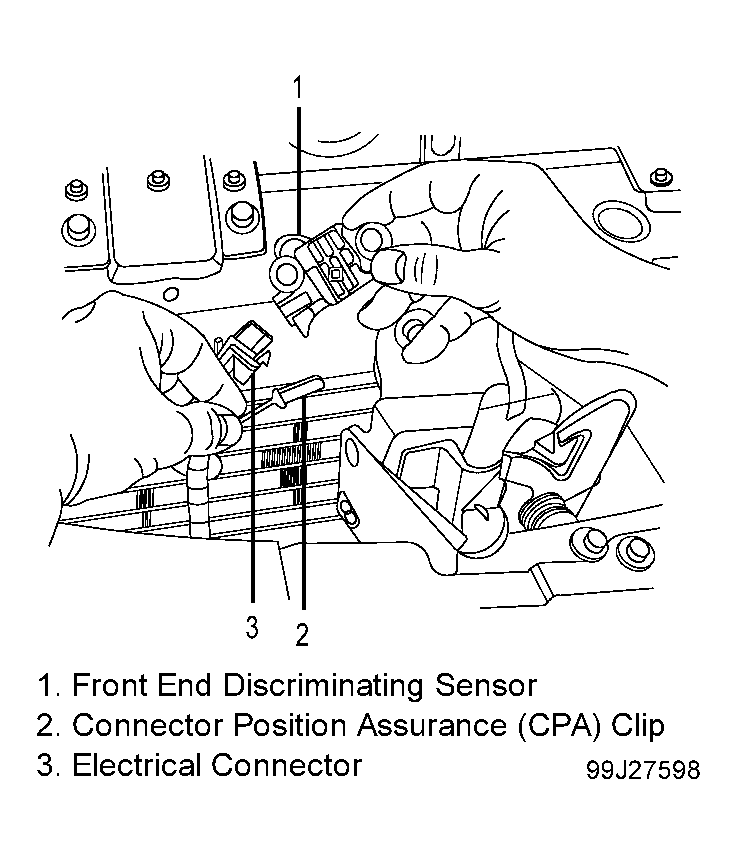

  1. Ensure ignition is off and key is removed. Connect driver-side front end discriminating sensor connector. Install Connector Position Assurance (CPA) clip. See Figure. Connect passenger-side front end discriminating sensor connector and install CPA clip.
  2. Install SIR fuse in fuse block. See Figure. Staying well away from air bag modules, turn ignition on. Check air bag system for proper operation. See SYSTEM OPERATION CHECK .
