Removal & Installation

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Before proceeding, see AIR BAG SAFETY PRECAUTIONS . Set parking brake. On models with automatic transmission, move shift lever to down-most position. On all models, tilt steering wheel to full down position.
  2. Remove Instrument Panel Cluster (IPC) trim plate by pulling gently rearward on corners of trim plate. Remove left and right instrument panel end panels. Remove passenger-side air outlets. Remove assist handle by depressing release tabs accessed through air outlet duct holes.
  3. Remove driver-side and passenger-side A-pillar trim. Remove screws from instrument panel upper trim pad. Lift upper trim pad up. Disconnect ambient light sensor electrical connector. Remove instrument panel upper trim pad. See Fig 1.
  4. To install, reverse removal procedure. Tighten instrument panel upper trim pad screws to specification. See TORQUE SPECIFICATIONS .

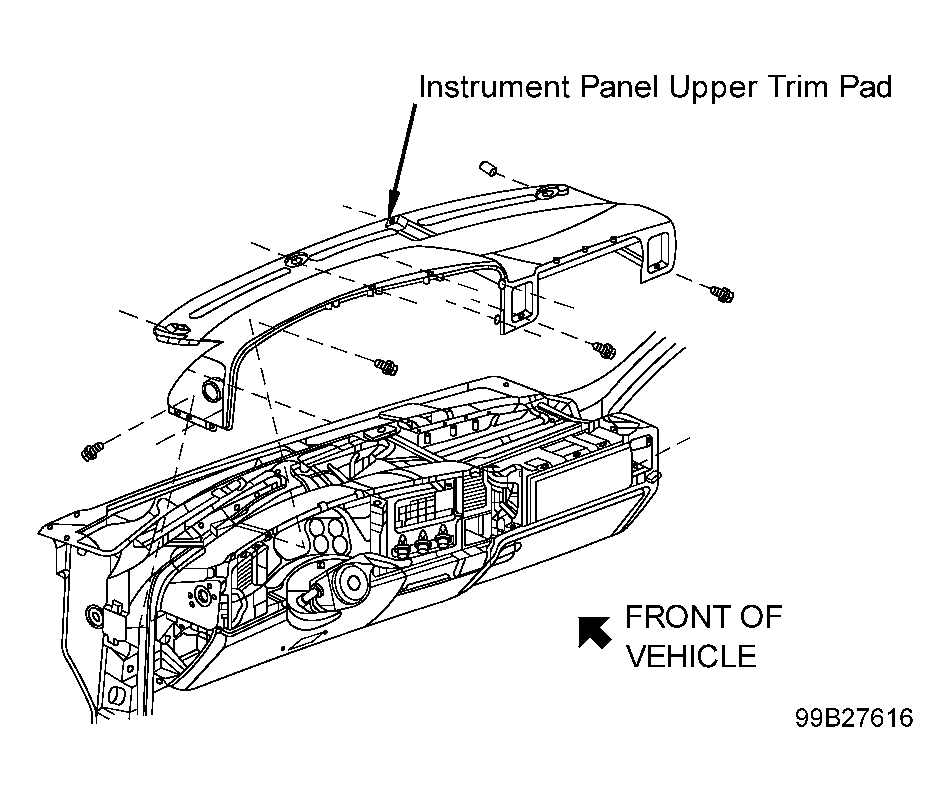

Fig 1: Identifying Instrument Panel Upper Trim Pad
G99B27616Courtesy of GENERAL MOTORS CORP.
