Removal & Installation

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Before proceeding, see AIR BAG SAFETY PRECAUTIONS . Disconnect applicable under seat electrical connectors. Remove seat from vehicle.
Disconnect electrical connector from SPS. See Fig 1. Drill out rivets retaining SPS to seat track. Remove SPS.
To install, reverse removal procedure. Tighten seat mounting bolts and nuts to specification. See TORQUE SPECIFICATIONS .

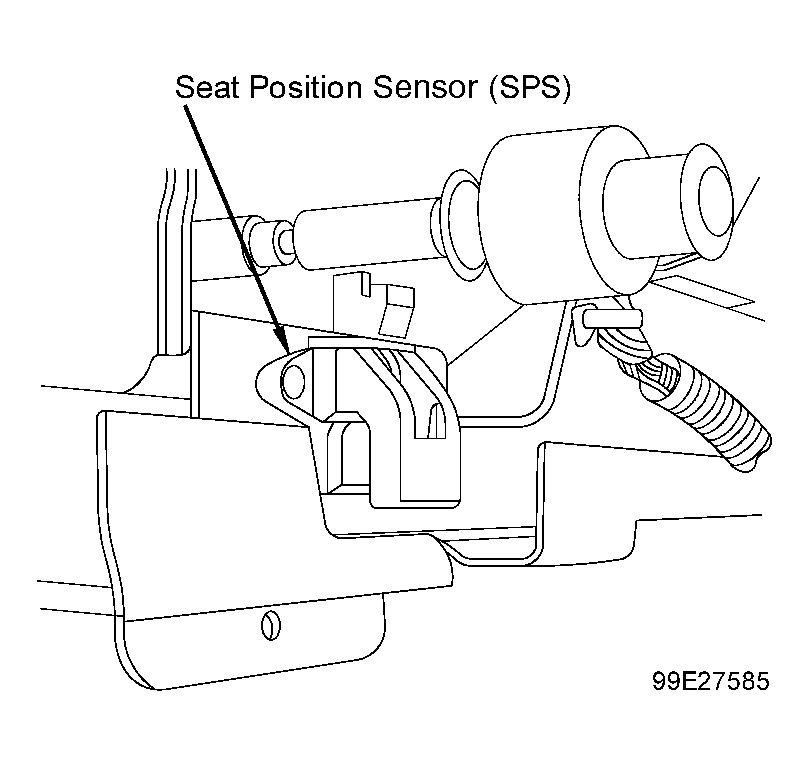

Fig 1: Identifying Seat Position Switch (SPS)

Courtesy of GENERAL MOTORS CORP.
