Zone 7

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

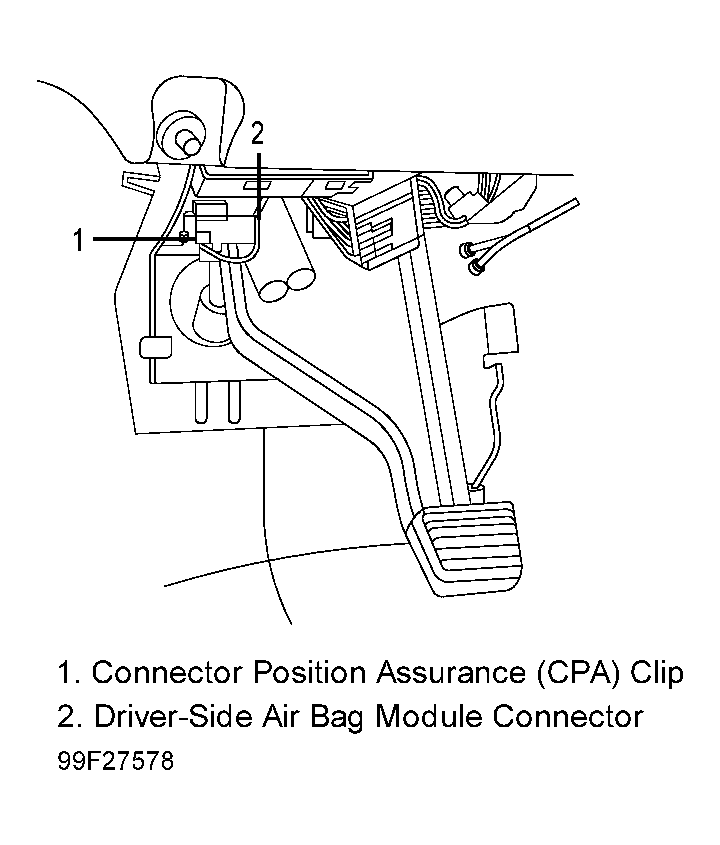

  1. Ensure ignition is off and key is removed. Connect driver-side air bag module connector. See Figure. Install Connector Position Assurance (CPA) clip.
  2. Connect passenger-side air bag module connector, located behind instrument panel support. Install CPA clip.

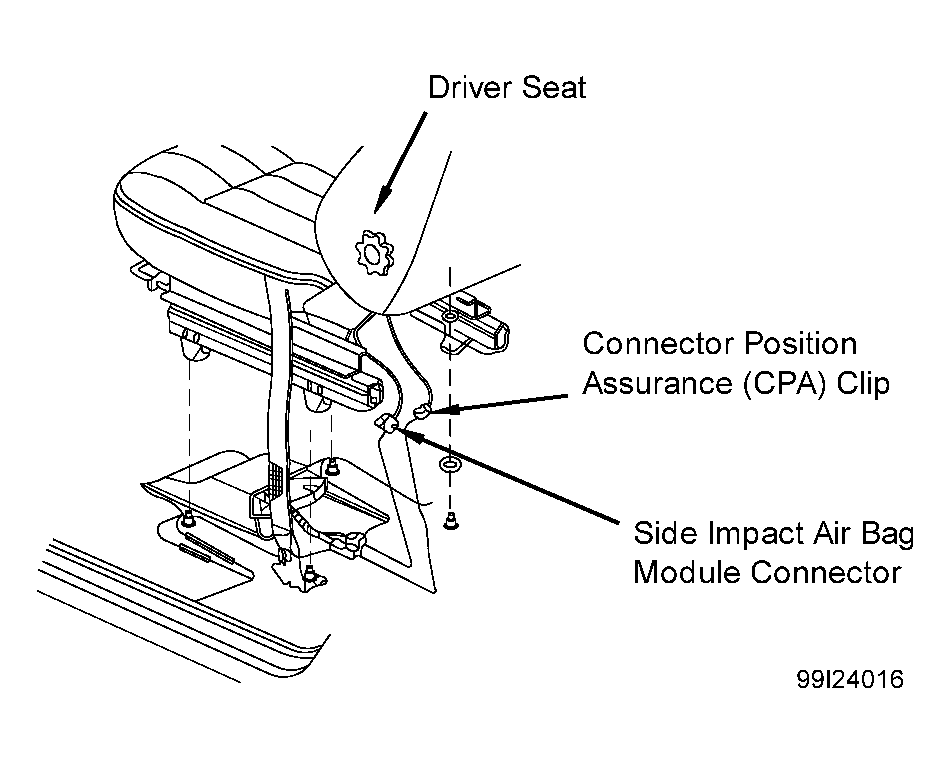

  3. Connect driver side impact air bag module connector. See Figure. Install CPA clip. Connect passenger side impact air bag module connector and install CPA clip.
  4. Install SIR fuse in fuse block. Staying well away from air bag modules, turn ignition on. Check air bag system for proper operation. See SYSTEM OPERATION CHECK .
