Zone 1

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn steering wheel to place vehicle wheels in straight-ahead position. Turn ignition off and remove key. Remove AM2 fuse from junction block, located in lower left side of instrument panel. See Fig 1. Disconnect negative battery cable.
  2. Remove Connector Position Assurance (CPA) clip from passenger-side front end discriminating sensor and disconnect electrical connector. See Fig 2. Disconnect CPA clip from driver-side front end discriminating sensor and disconnect electrical connector. See Fig 3.
Fig 1: Identifying Junction Block
G99H27646Courtesy of GENERAL MOTORS CORP.

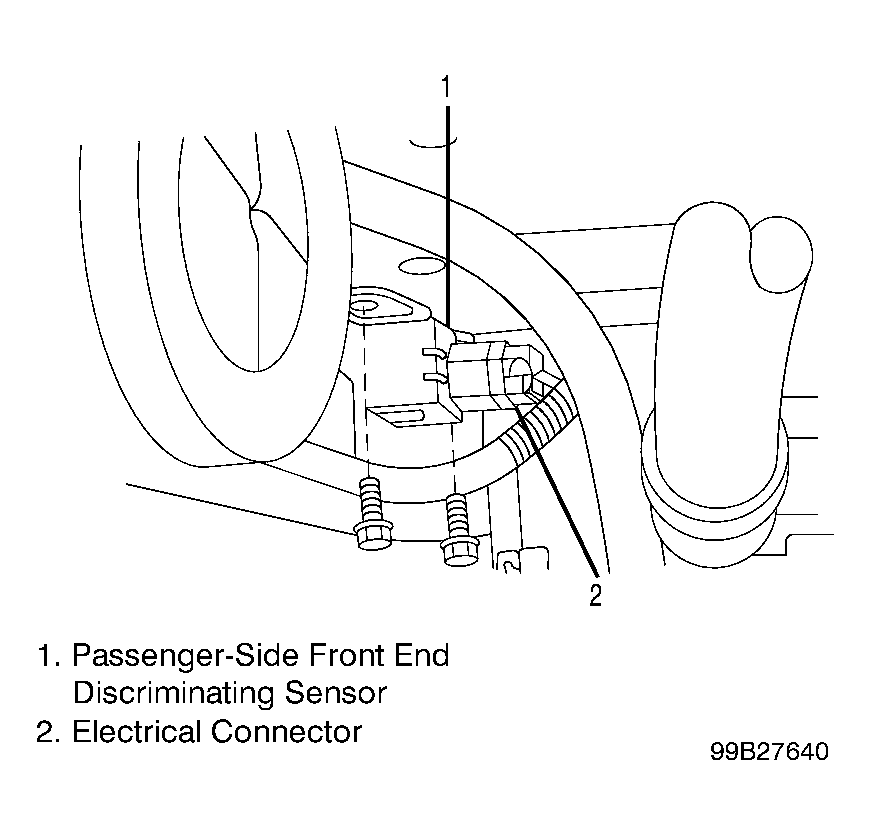

Fig 2: Identifying Passenger-side Front End Discriminating Sensor Connector
G99B27640Courtesy of GENERAL MOTORS CORP.

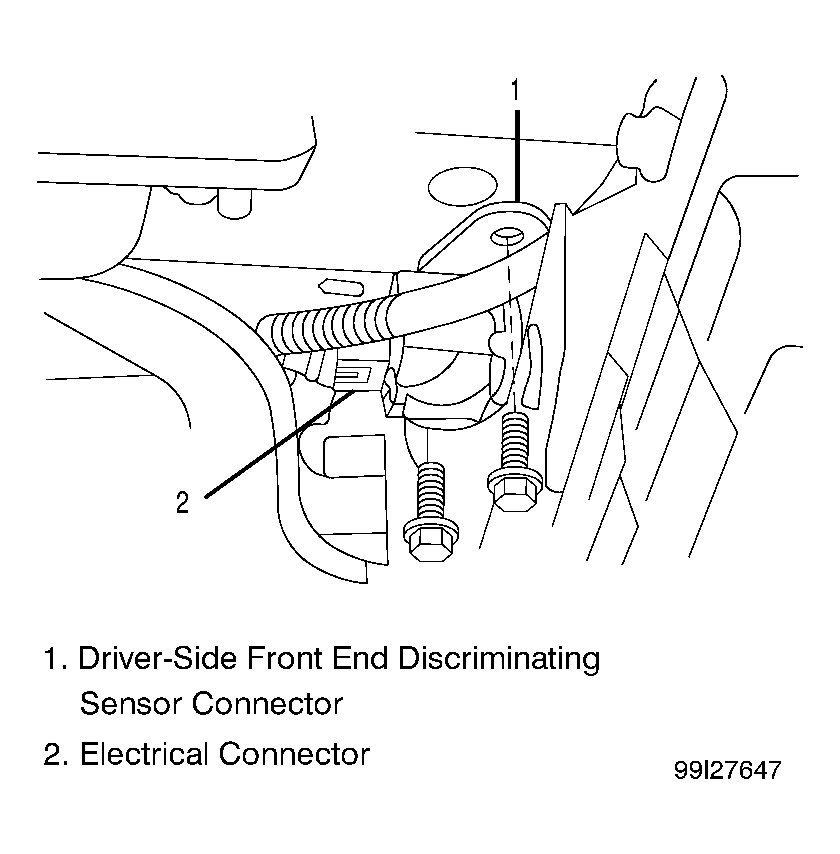

Fig 3: Identifying Driver-side Front End Discriminating Sensor Connector
G99I27647Courtesy of GENERAL MOTORS CORP.
