Section 452 (Engine Controls - Self-Diagnostics - 6.0L Bi-Fuel & CNG)
>>
Connector Identification
Connector Identification
WARNING:
This page is about a different car, the 2003 GMC Sierra and 2003 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

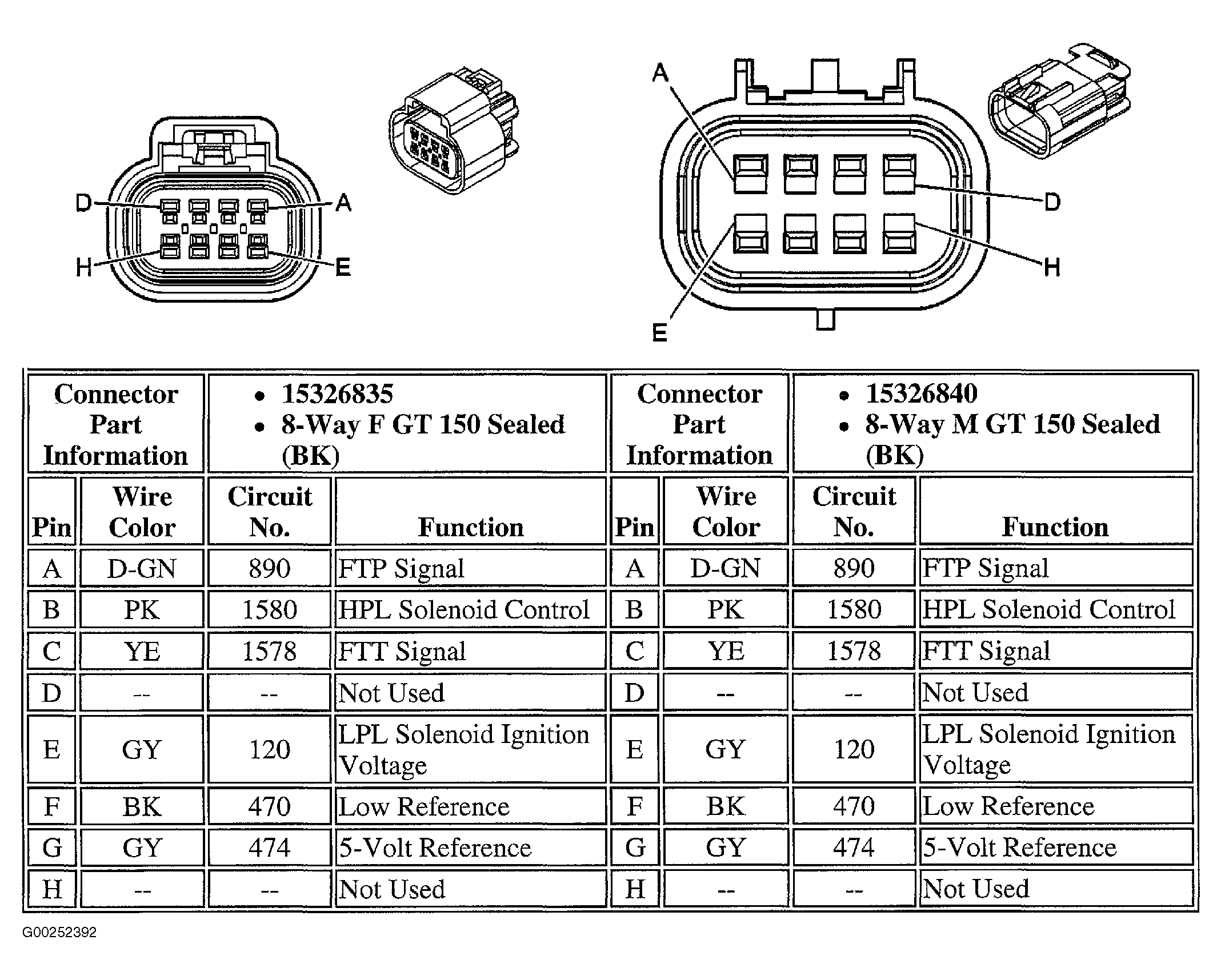

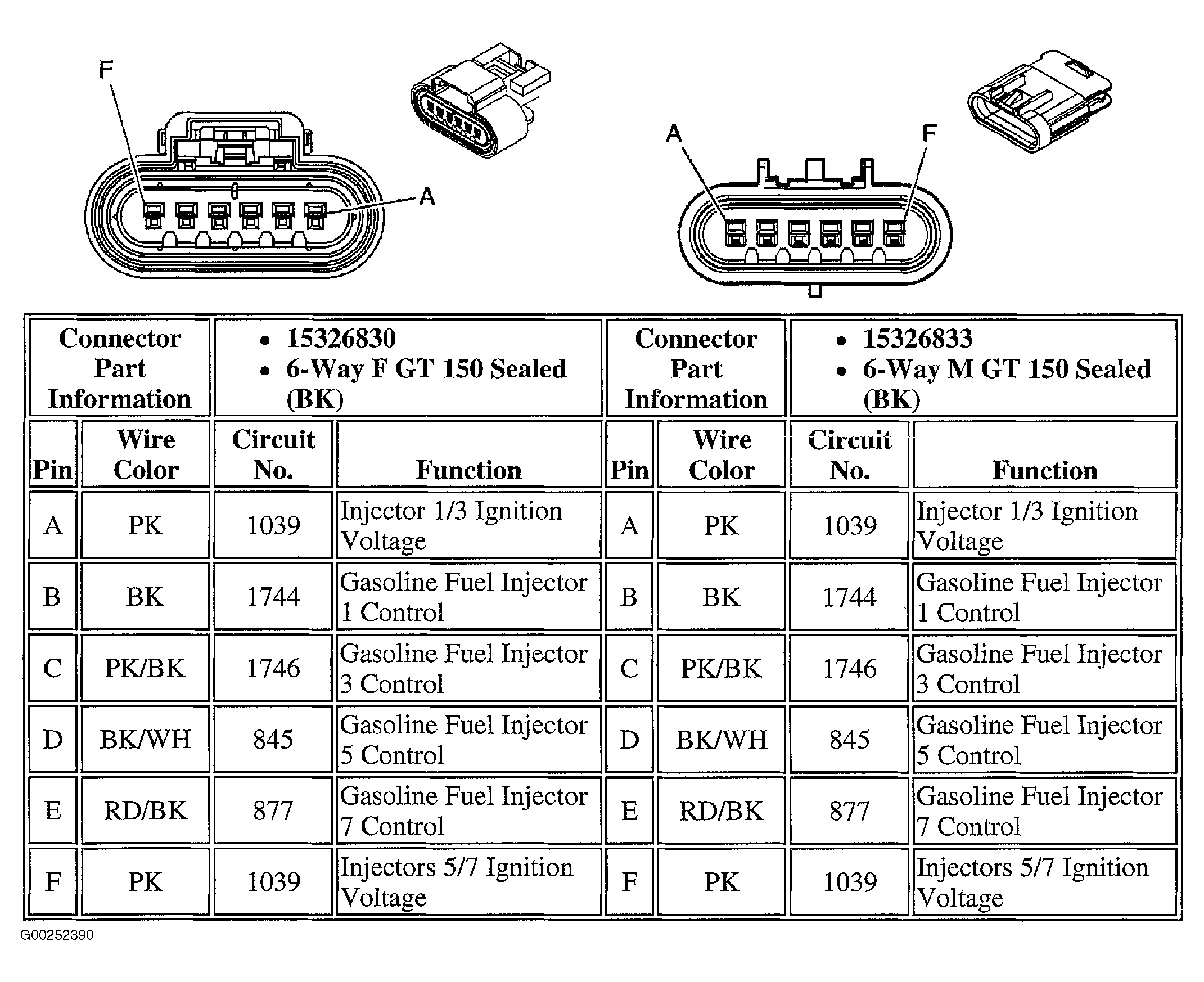

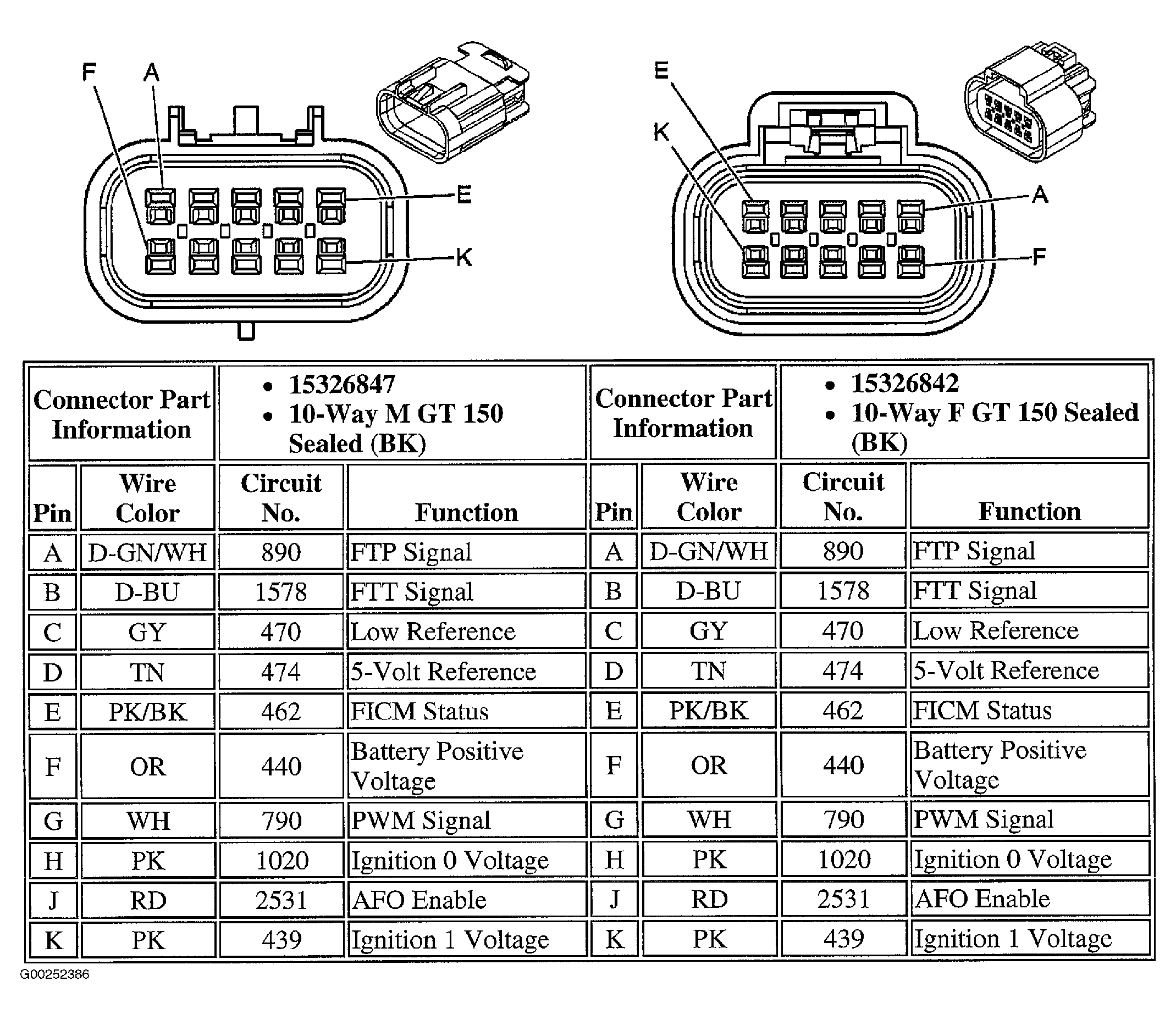

Fig 1: Identifying Connector C002 Terminals
Courtesy of GENERAL MOTORS CORP.

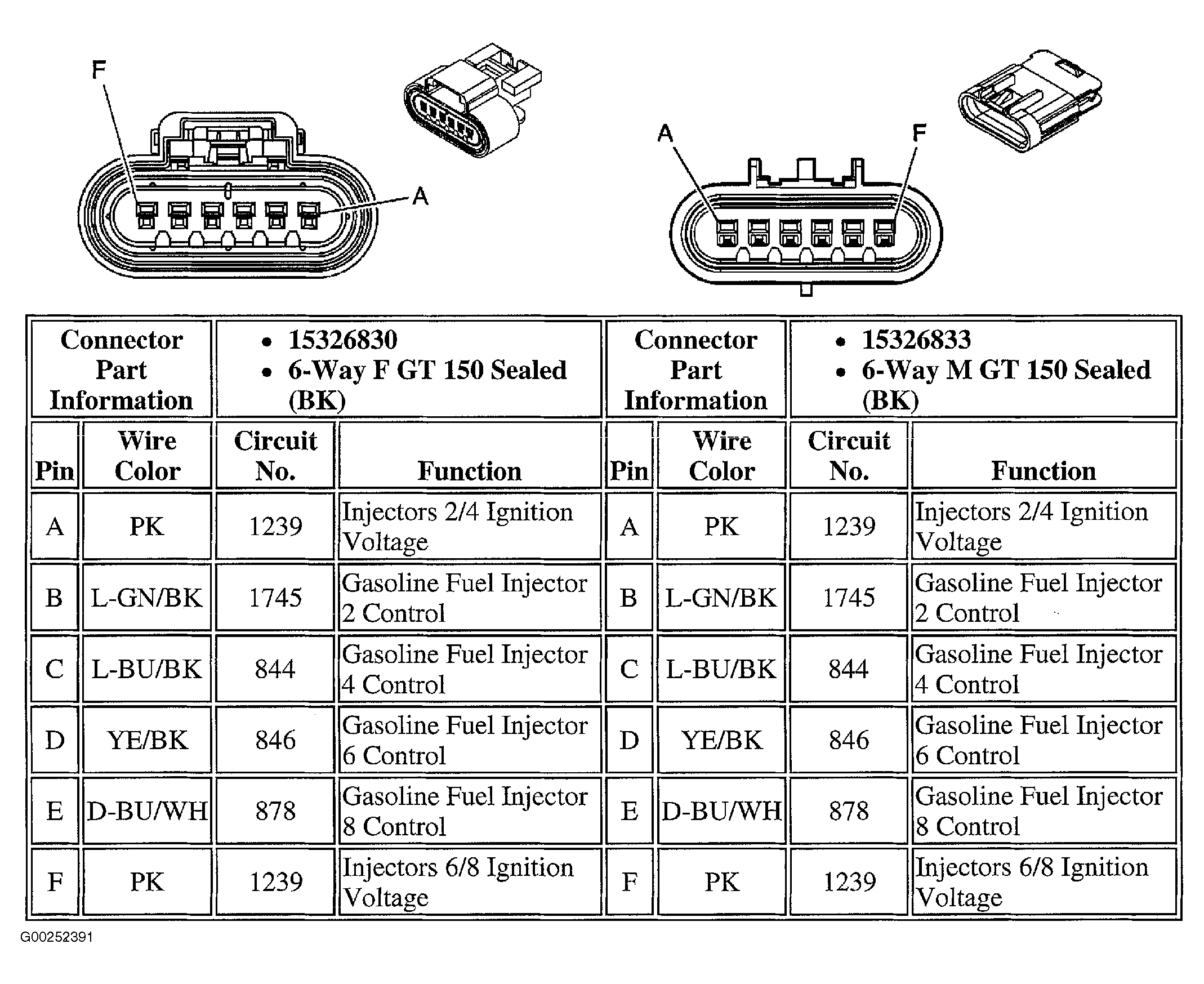

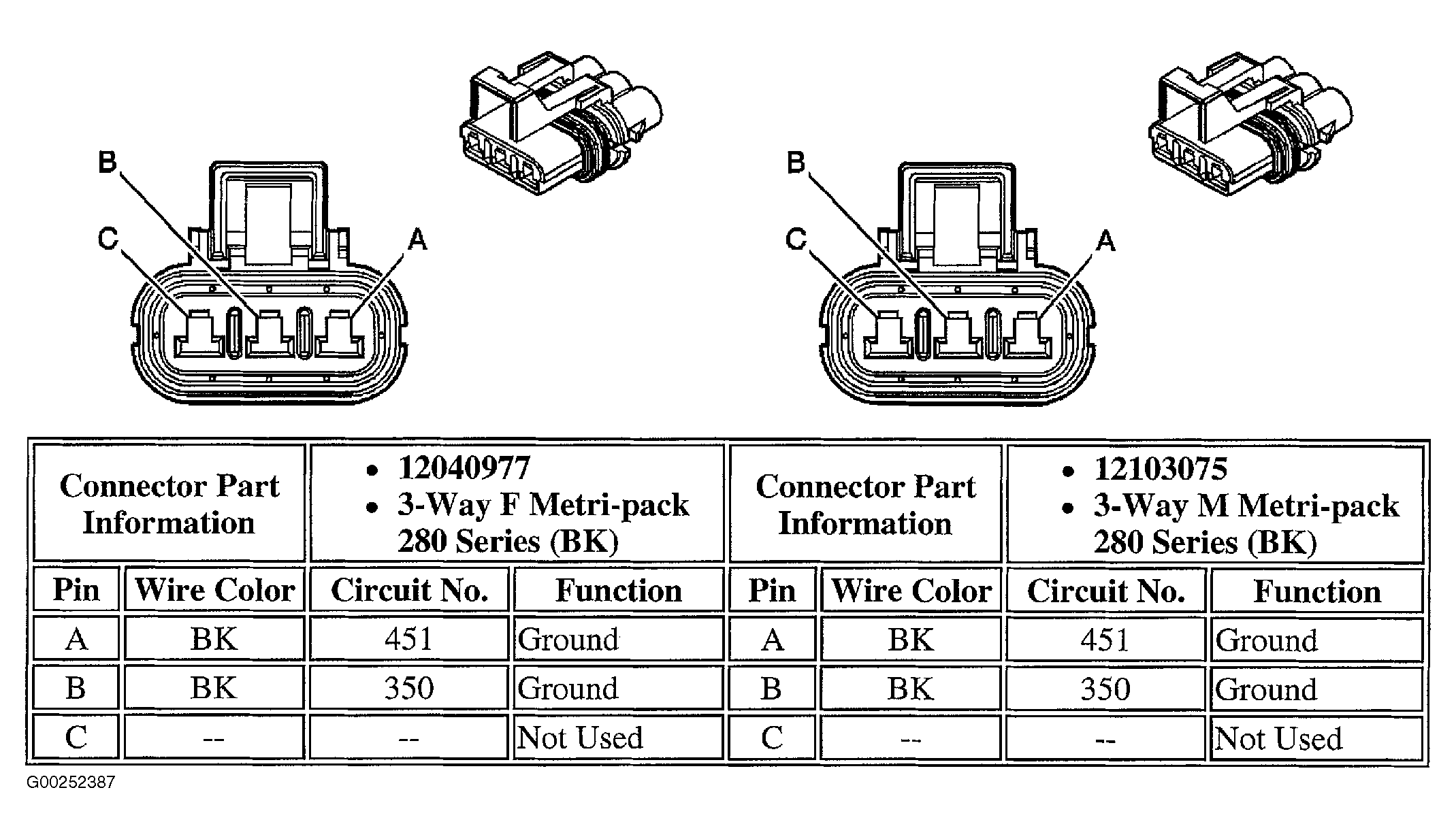

Fig 2: Identifying Connector C003 Terminals
Courtesy of GENERAL MOTORS CORP.

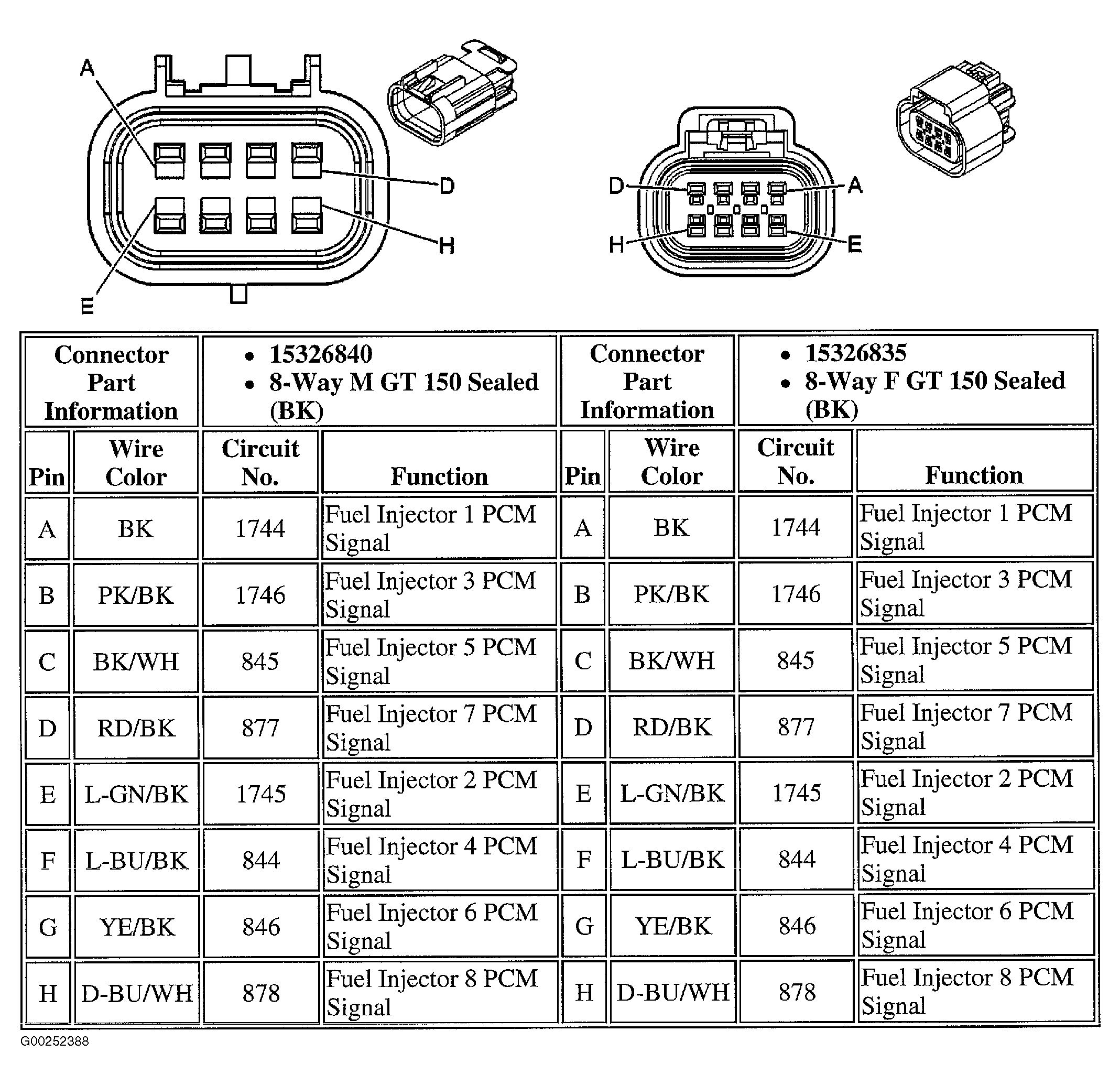

Fig 3: Identifying Connector C004 Terminals
Courtesy of GENERAL MOTORS CORP.

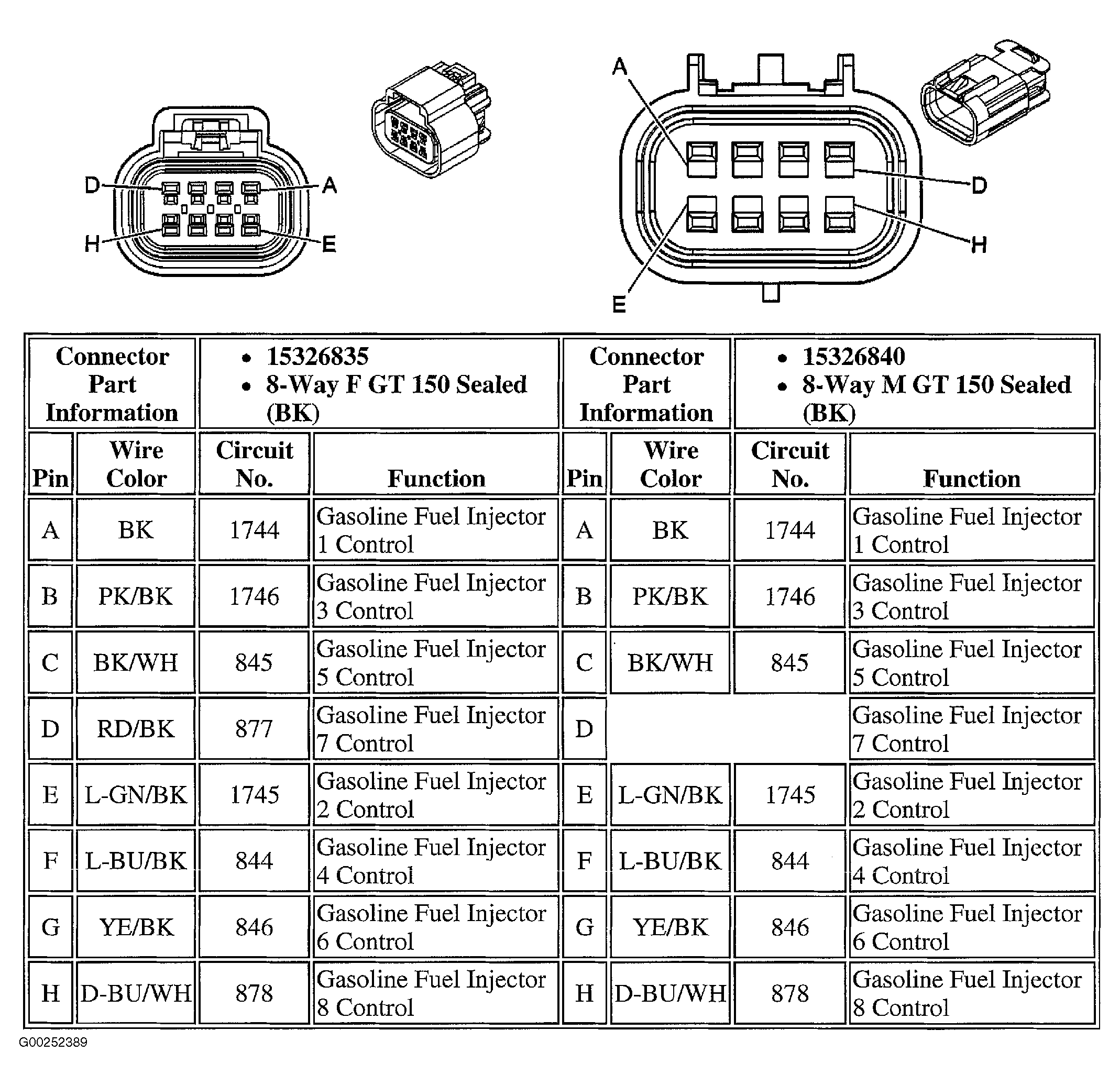

Fig 4: Identifying Connector C005 Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 5: Identifying Connector C006 Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 6: Identifying Connector C007 Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 7: Identifying Connector C008 Terminals
Courtesy of GENERAL MOTORS CORP.

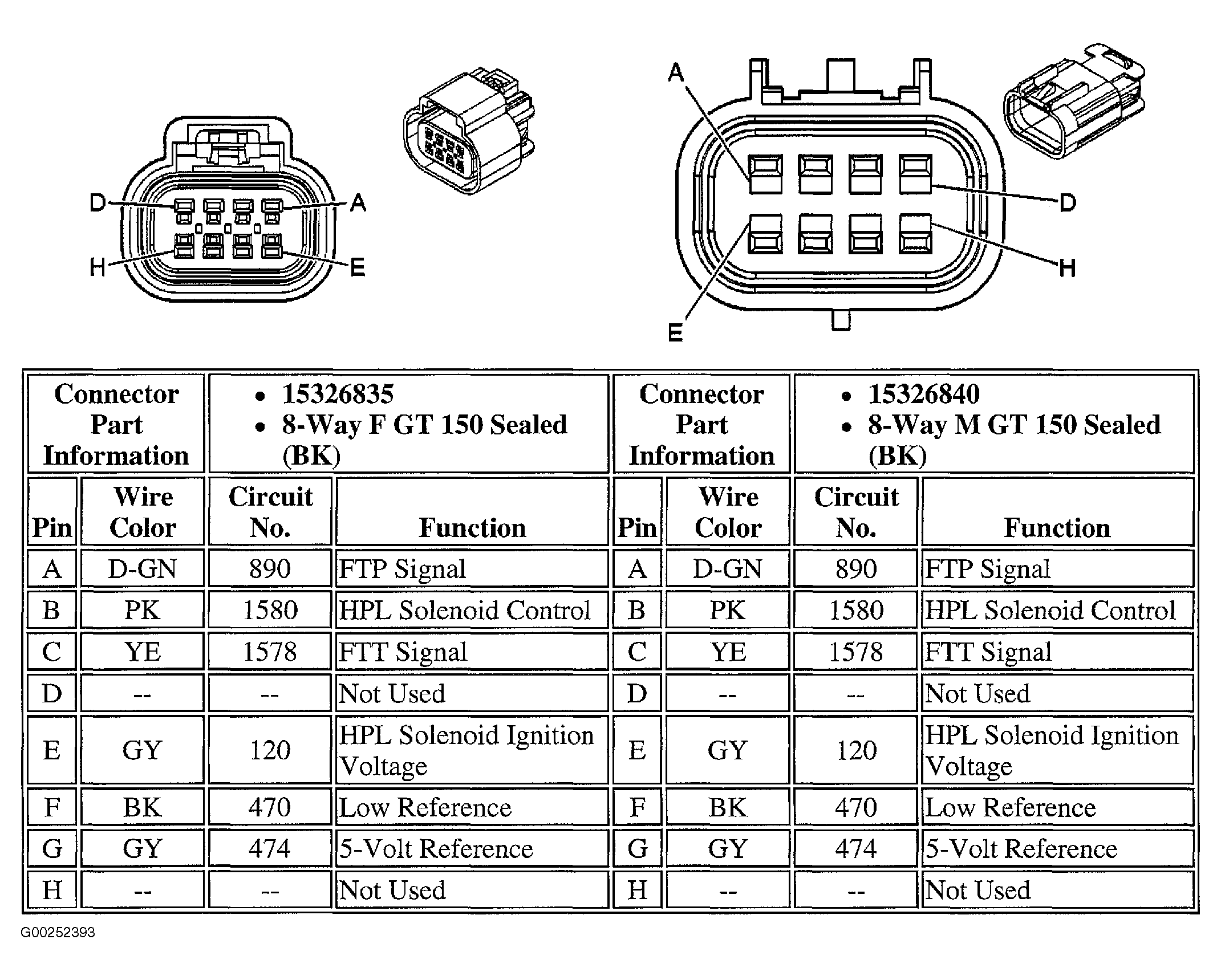

Fig 8: Identifying Connector C009 Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 9: Identifying Connector C010 Terminals
Courtesy of GENERAL MOTORS CORP.

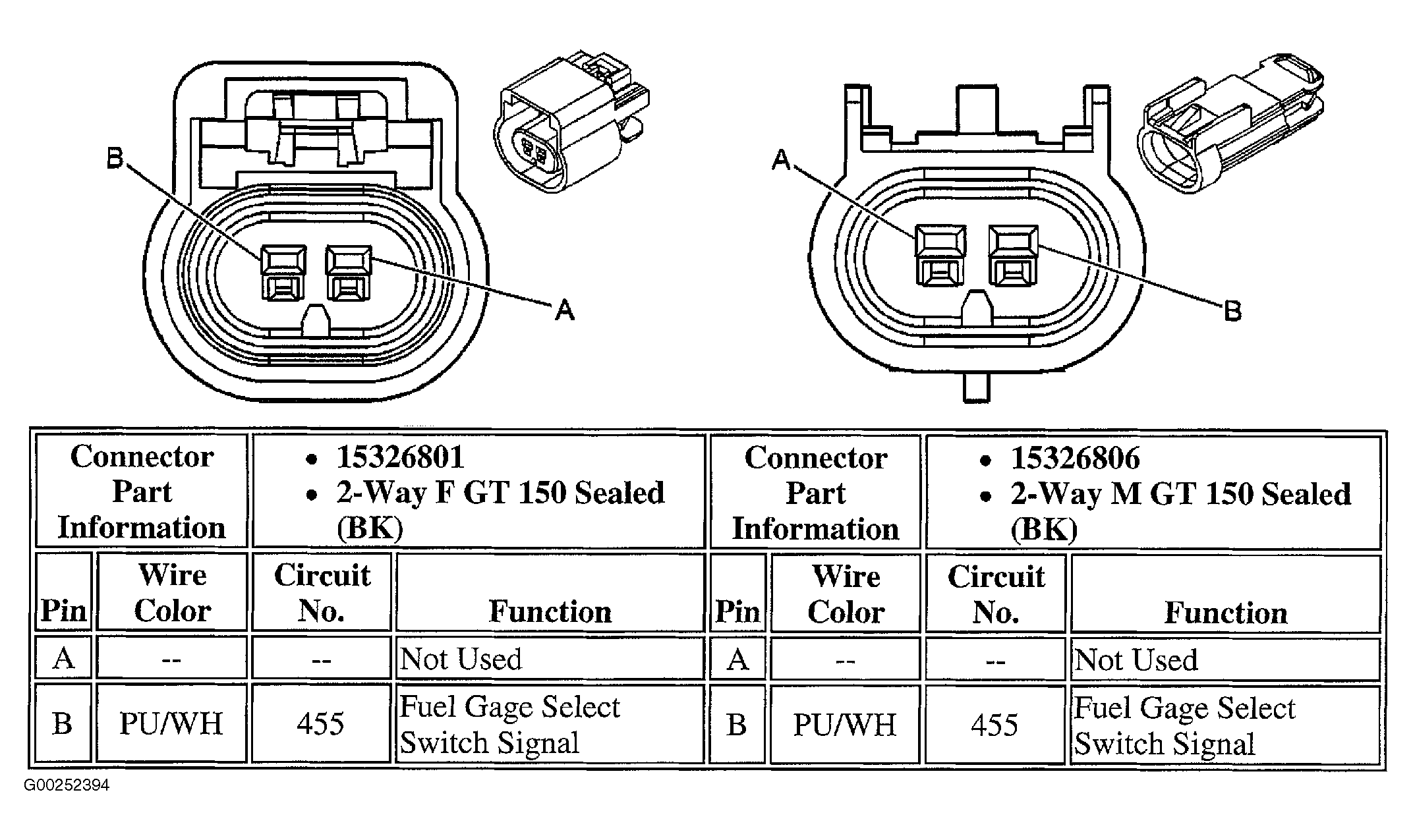

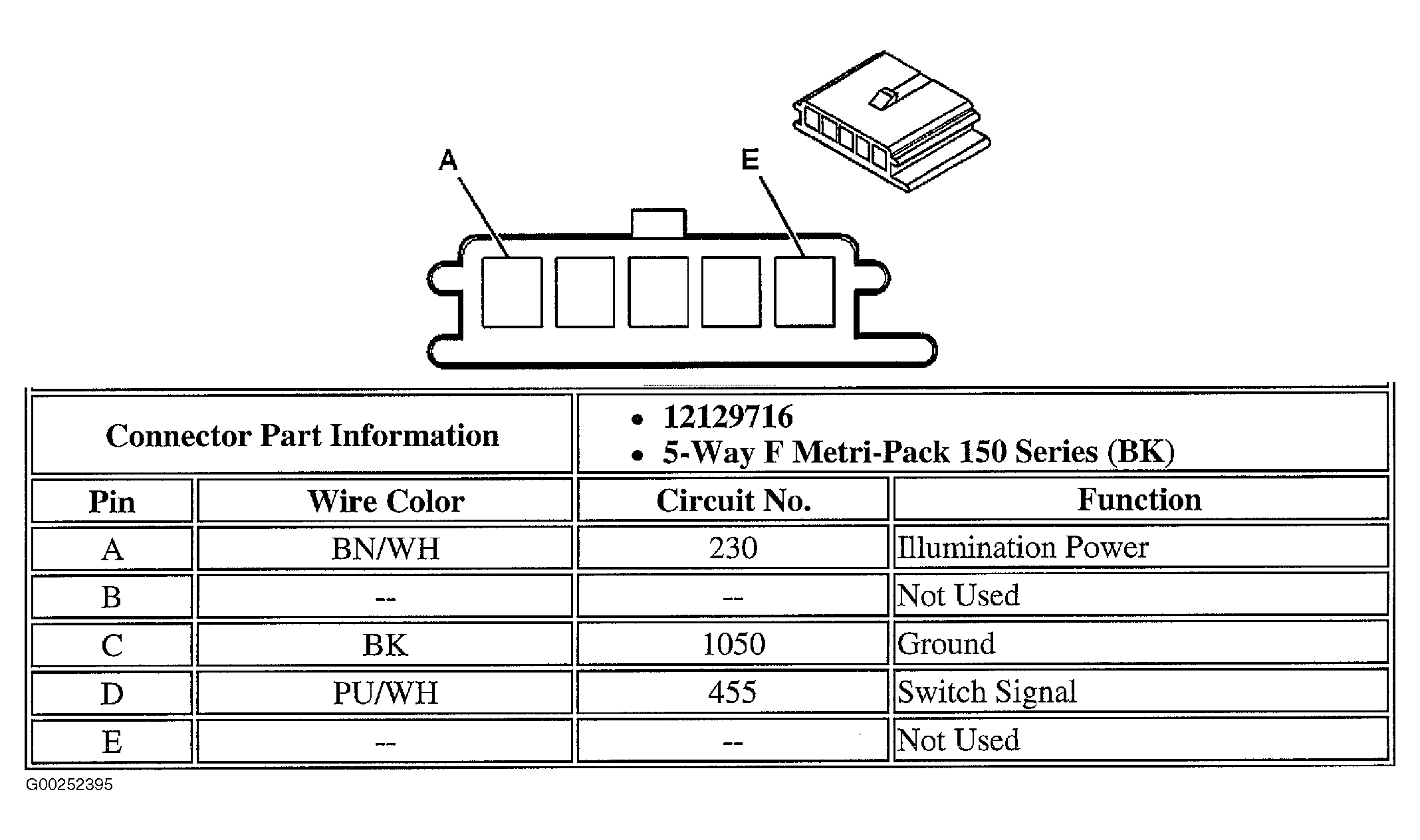

Fig 10: Identifying Fuel Gauge Select Switch Connector Terminals
Courtesy of GENERAL MOTORS CORP.

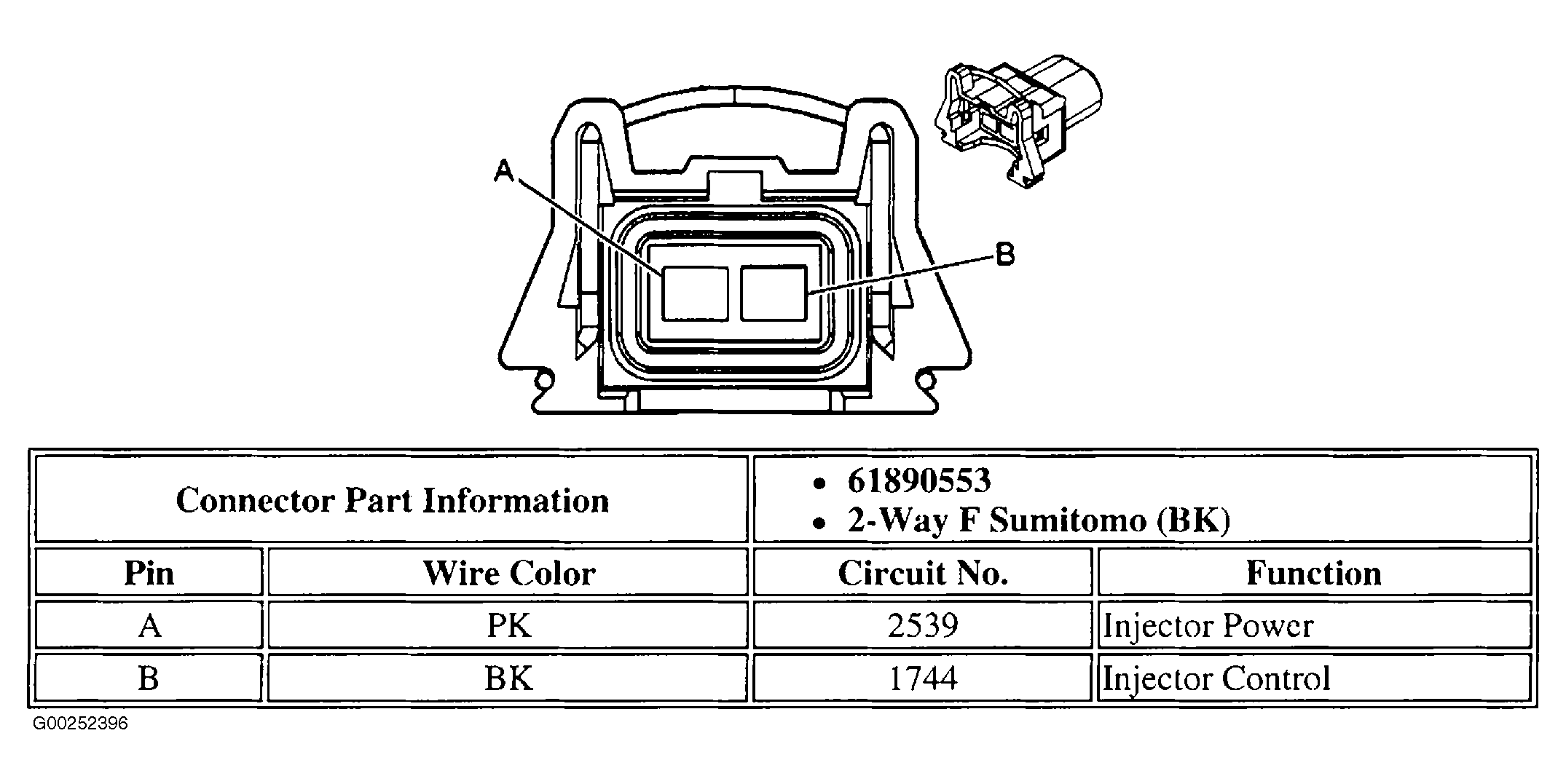

Fig 11: Identifying Fuel Injector No. 1 Connector Terminals - Alternative Fuel
Courtesy of GENERAL MOTORS CORP.

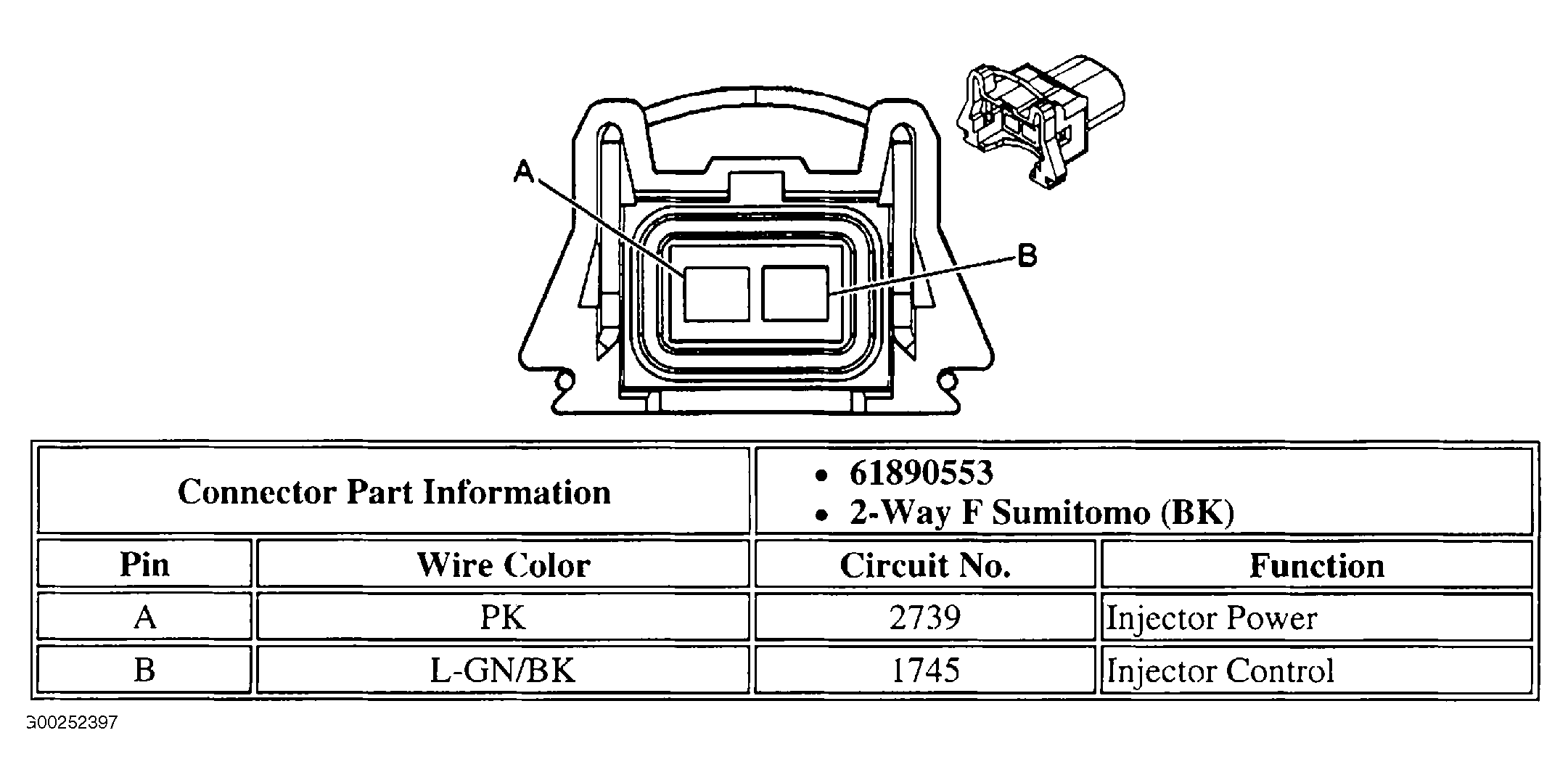

Fig 12: Identifying Fuel Injector No. 2 Connector Terminals - Alternative Fuel
Courtesy of GENERAL MOTORS CORP.

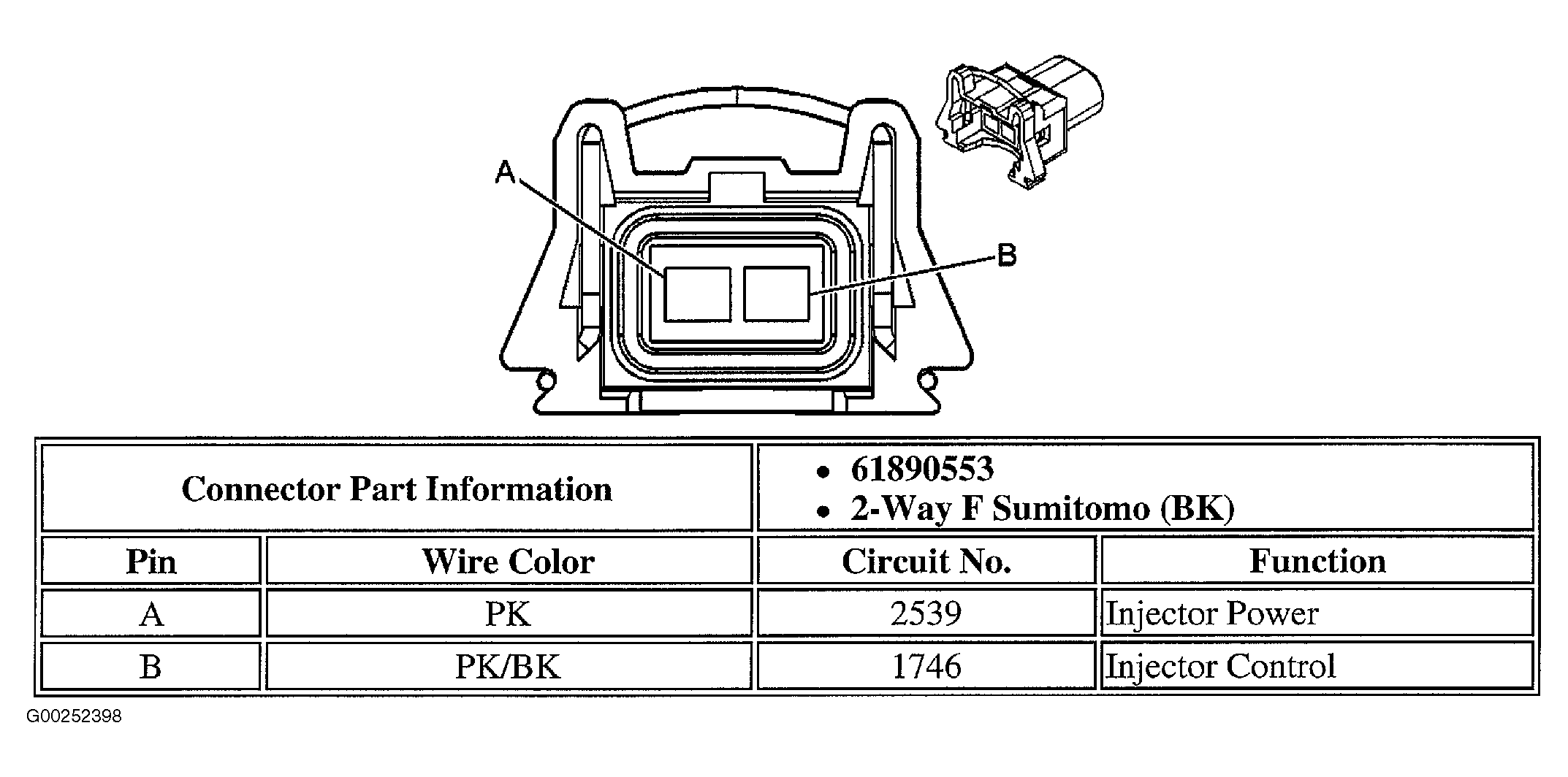

Fig 13: Identifying Fuel Injector No. 3 Connector Terminals - Alternative Fuel
Courtesy of GENERAL MOTORS CORP.

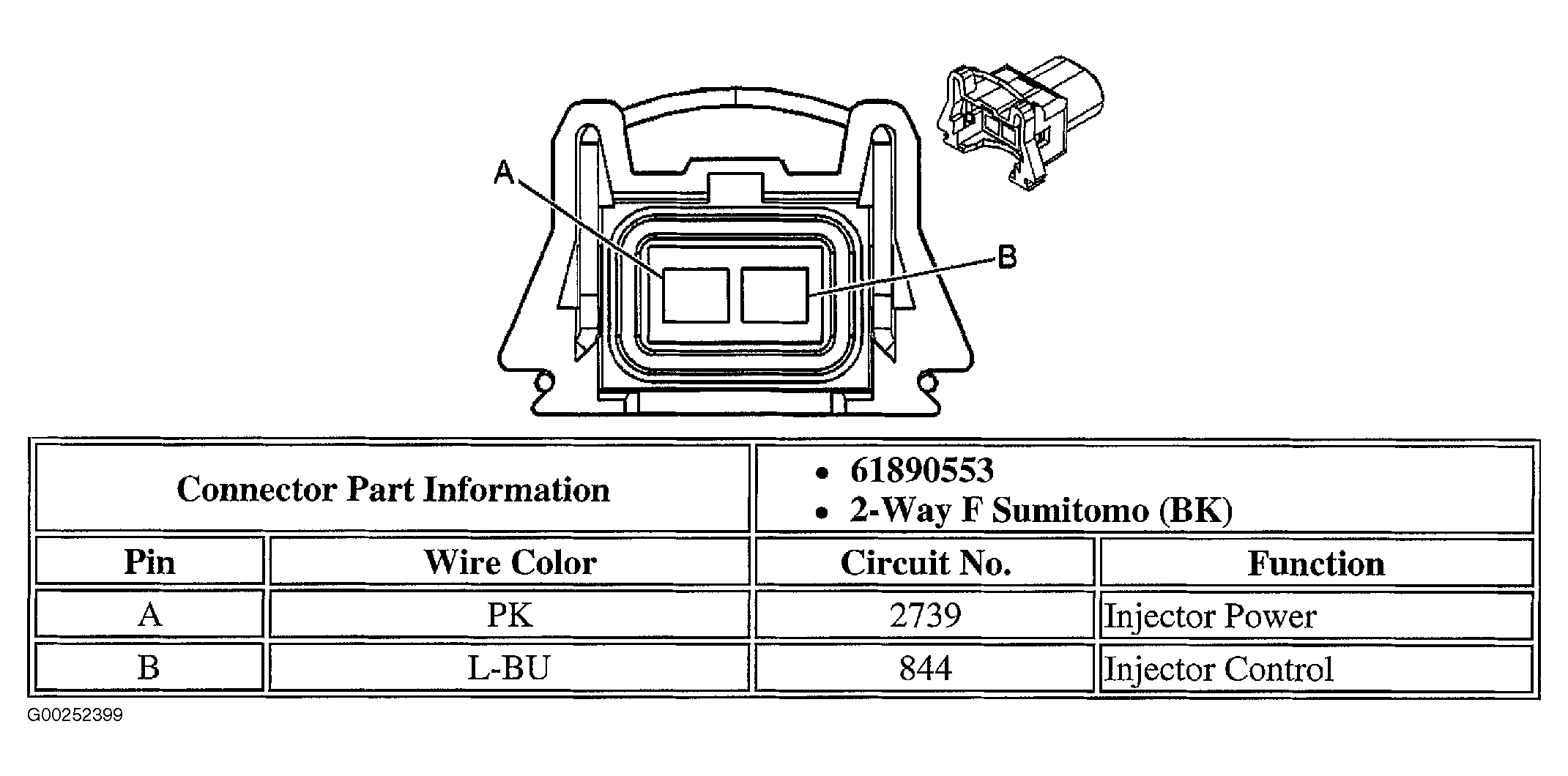

Fig 14: Identifying Fuel Injector No. 4 Connector Terminals - Alternative Fuel
Courtesy of GENERAL MOTORS CORP.

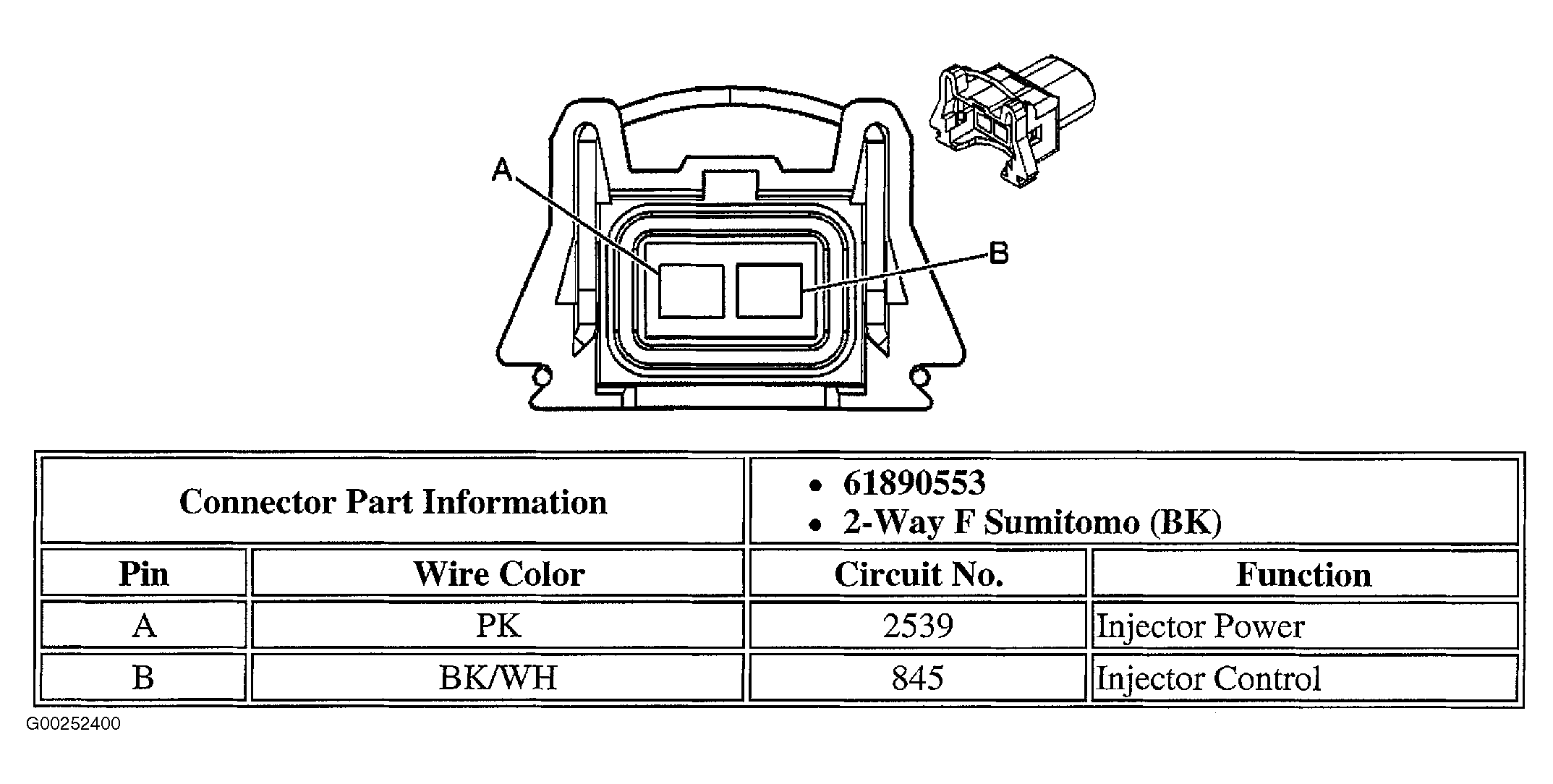

Fig 15: Identifying Fuel Injector No. 5 Connector Terminals - Alternative Fuel
Courtesy of GENERAL MOTORS CORP.

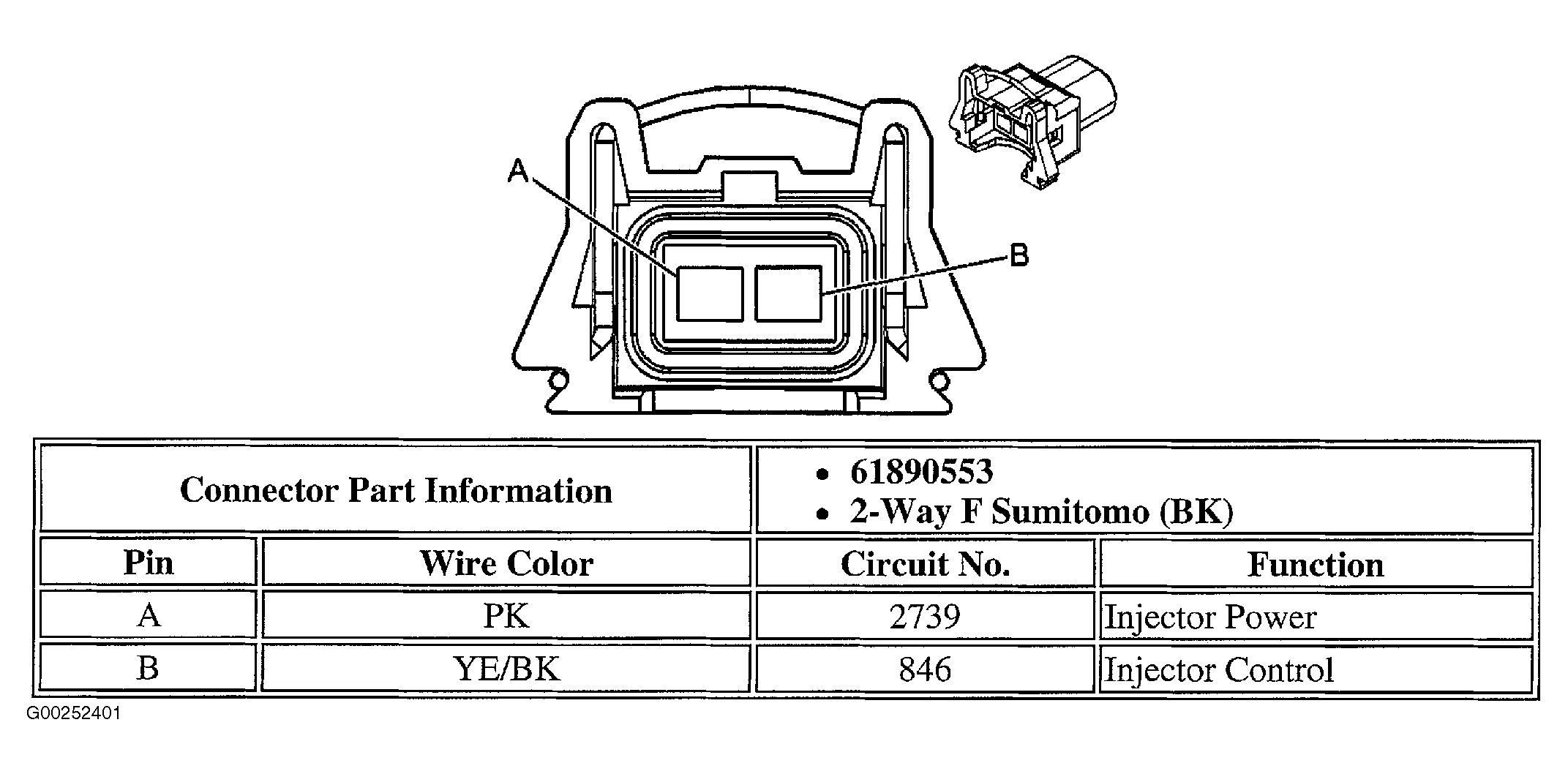

Fig 16: Identifying Fuel Injector No. 6 Connector Terminals - Alternative Fuel
Courtesy of GENERAL MOTORS CORP.

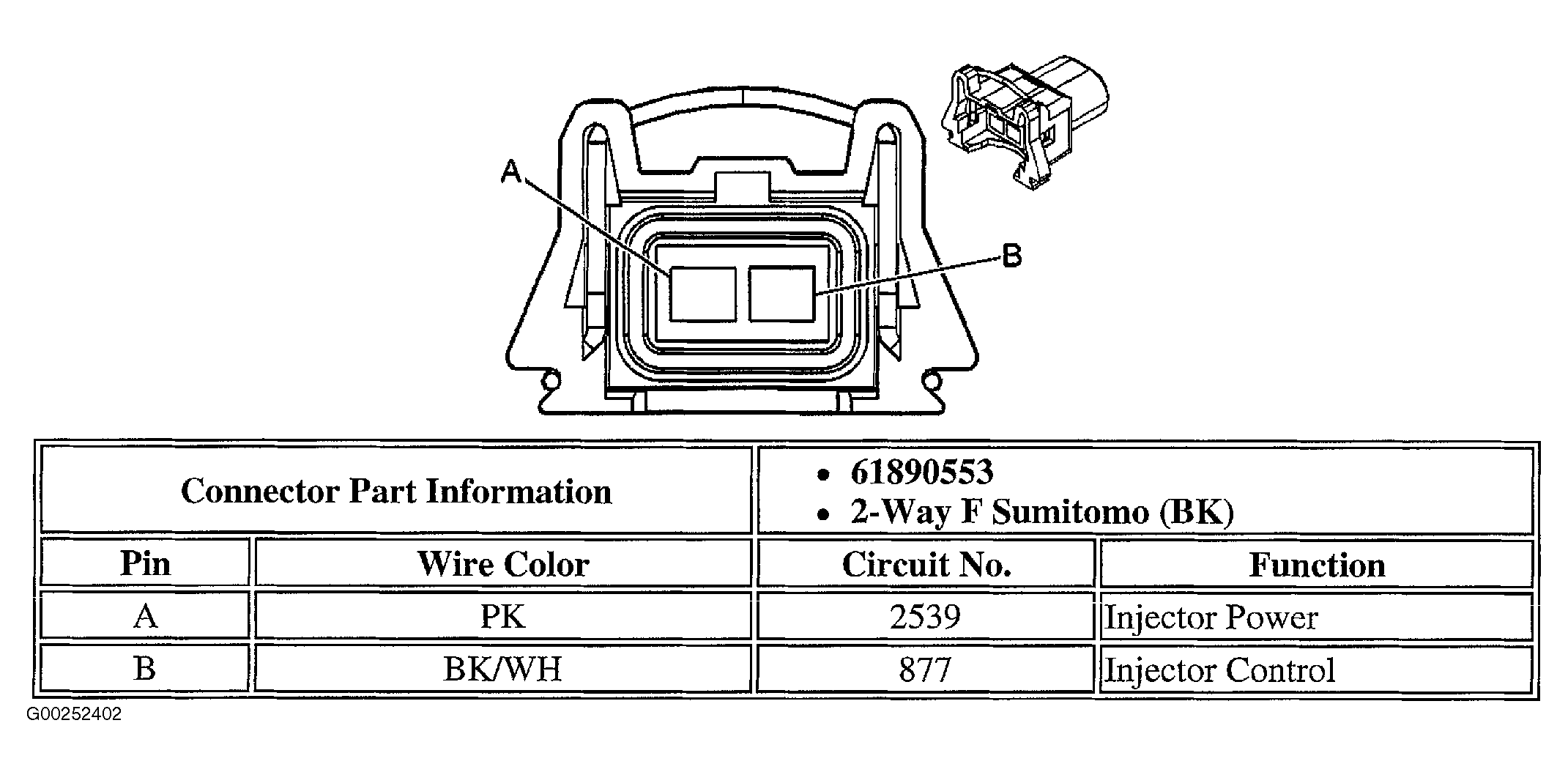

Fig 17: Identifying Fuel Injector No. 7 Connector Terminals - Alternative Fuel
Courtesy of GENERAL MOTORS CORP.

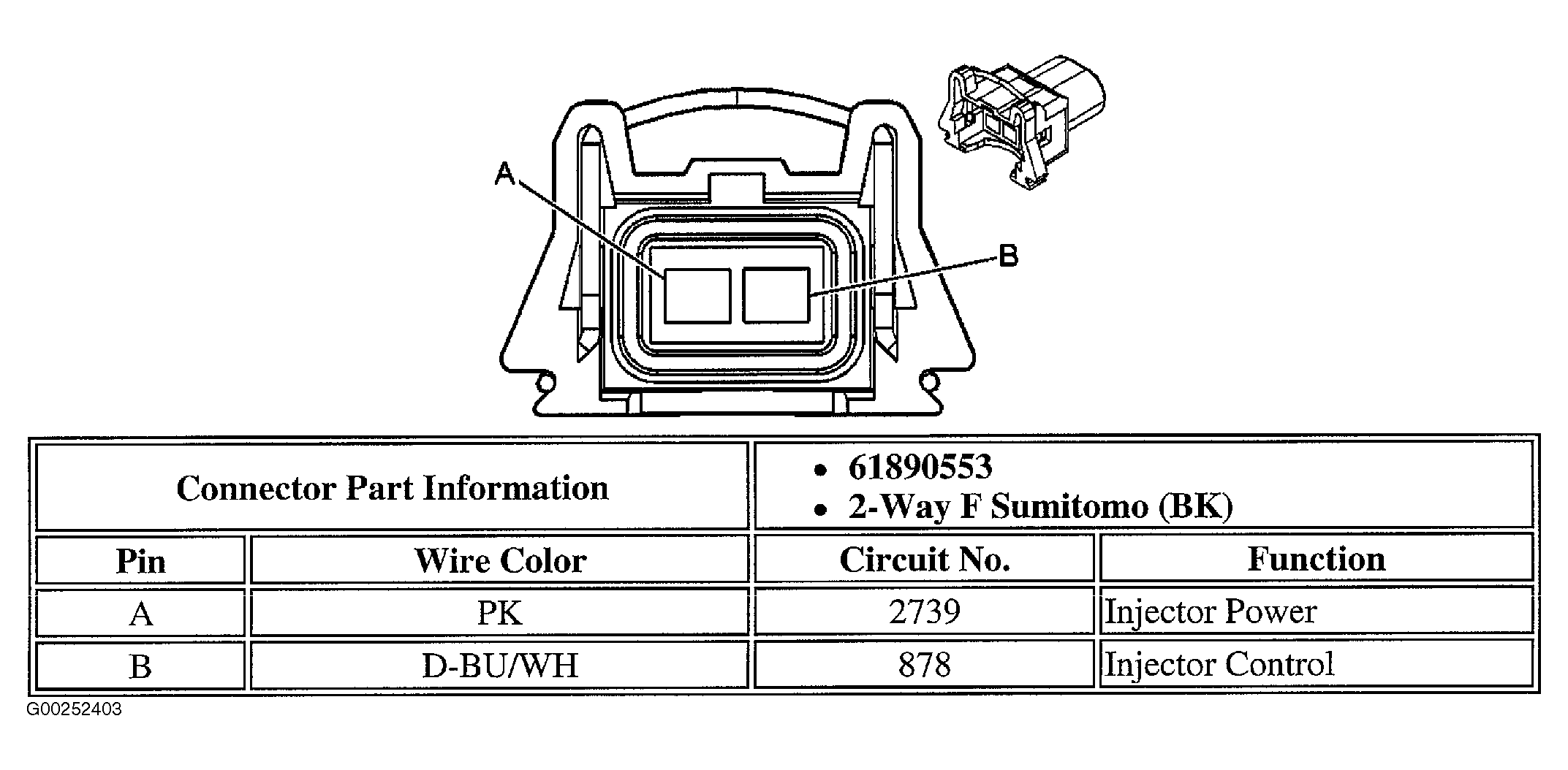

Fig 18: Identifying Fuel Injector No. 8 Connector Terminals - Alternative Fuel
Courtesy of GENERAL MOTORS CORP.

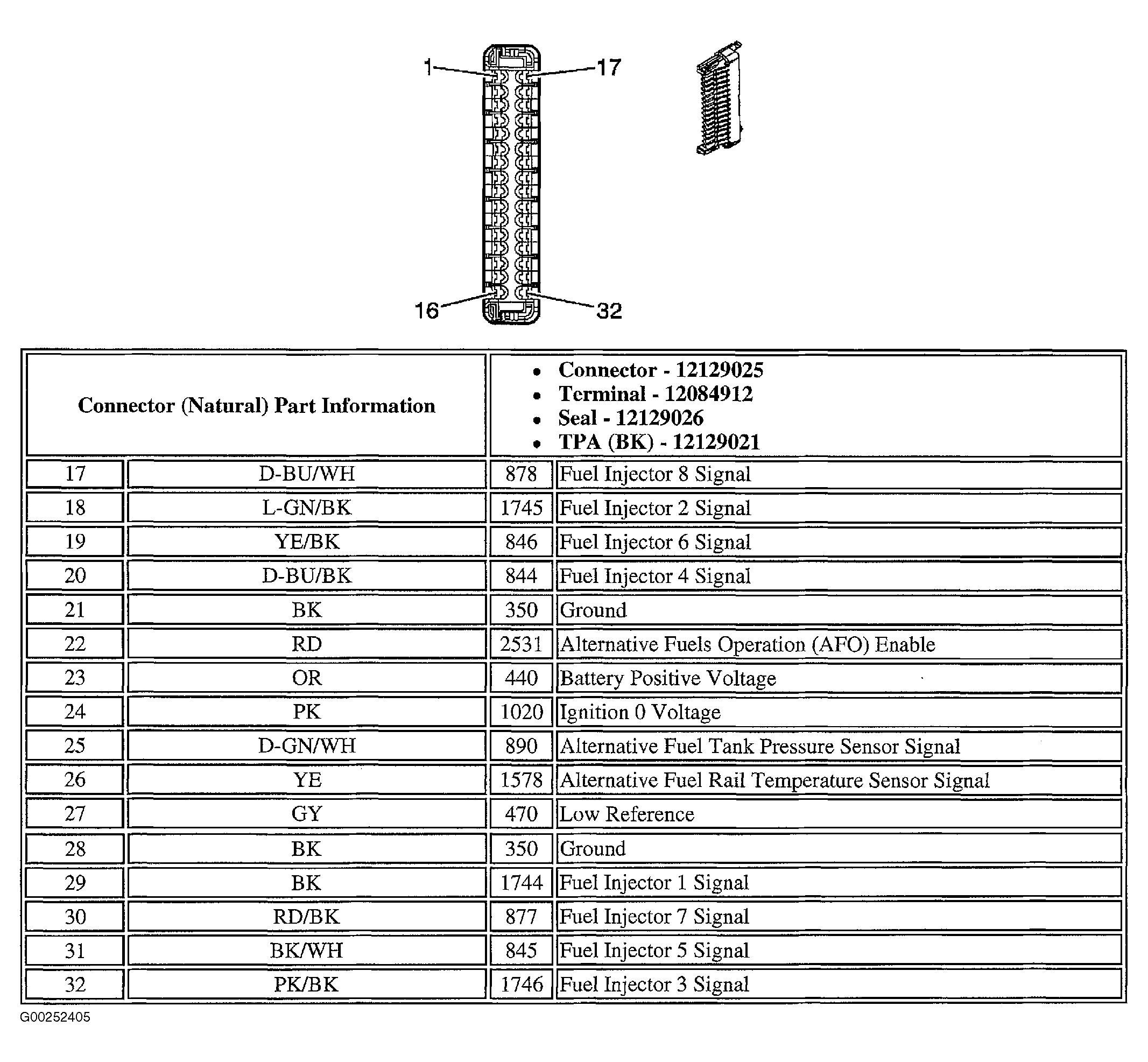

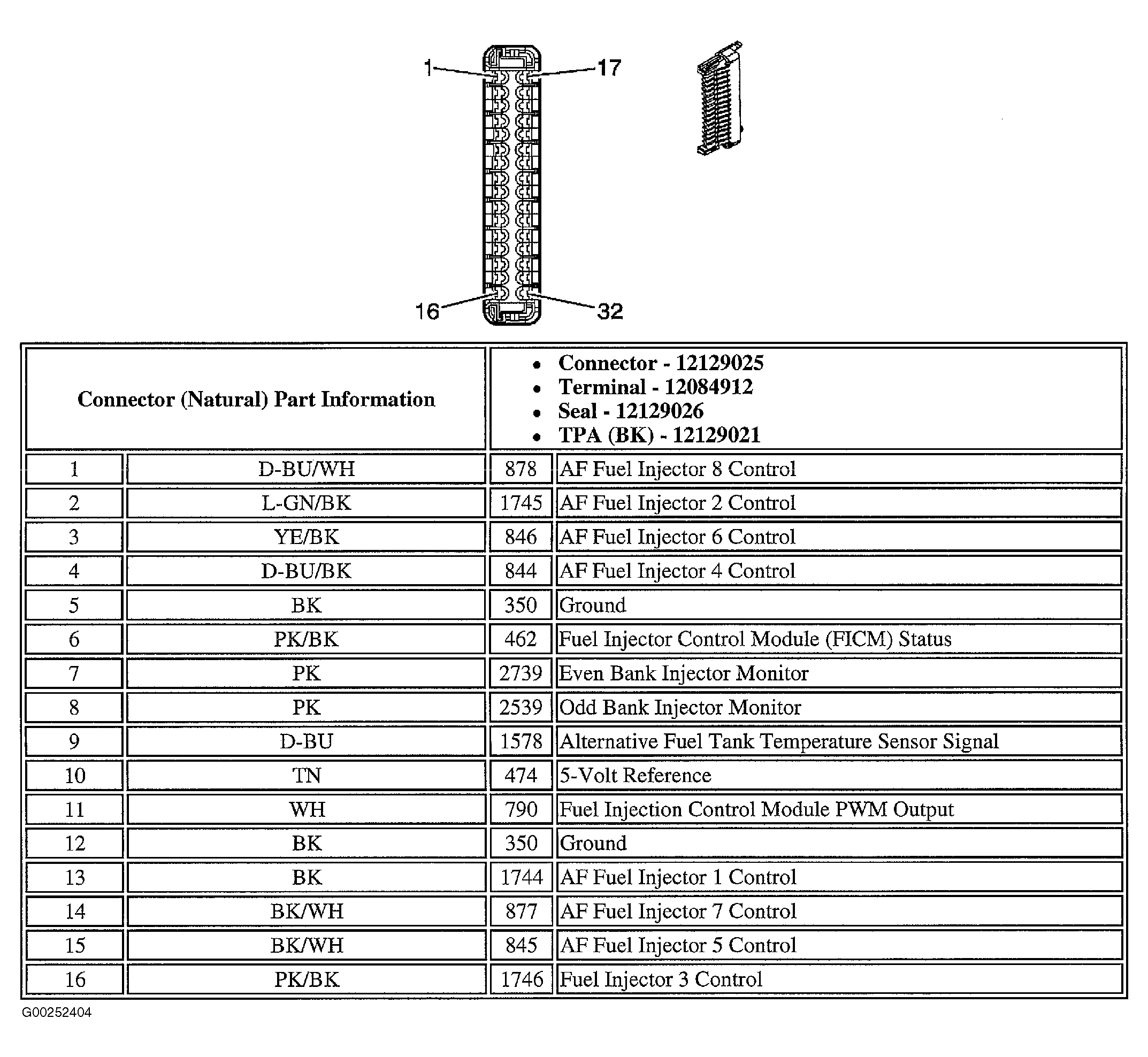

Fig 19: Identifying Fuel Injection Control Module Connector Terminals (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 20: Identifying Fuel Injection Control Module Connector Terminals (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

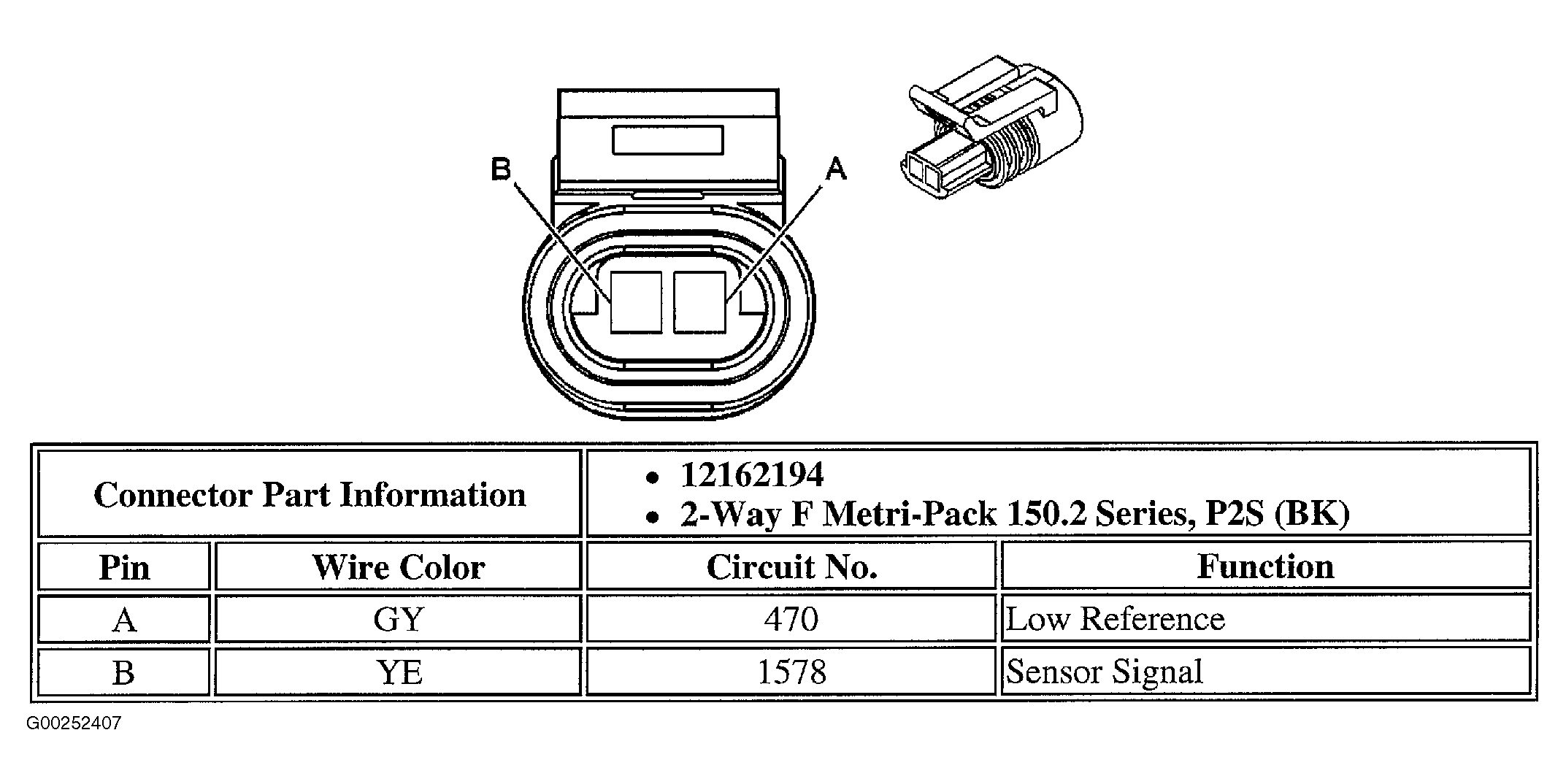

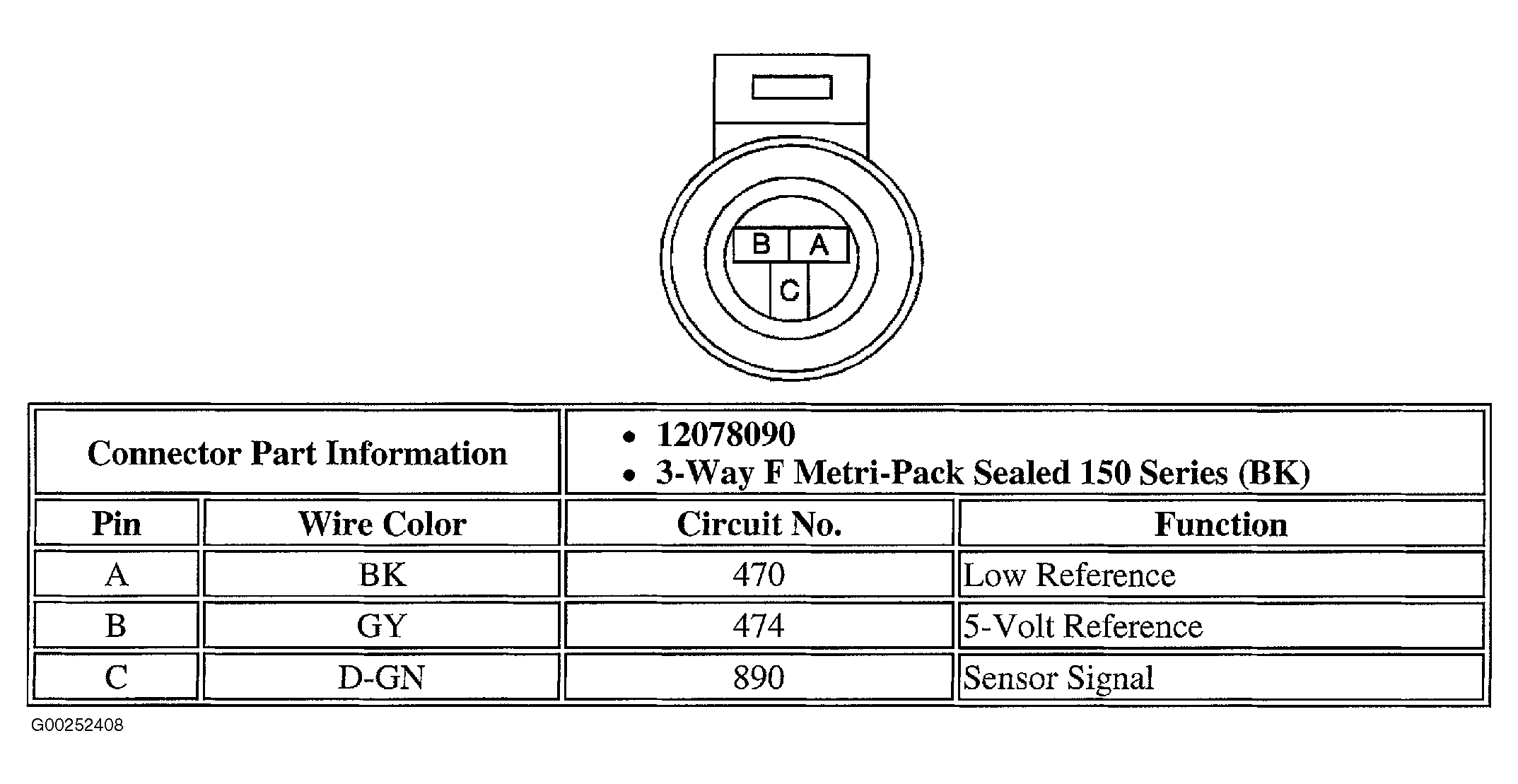

Fig 21: Identifying Fuel Rail Pressure Sensor Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 22: Identifying Fuel Rail Temperature Sensor Connector Terminals
Courtesy of GENERAL MOTORS CORP.

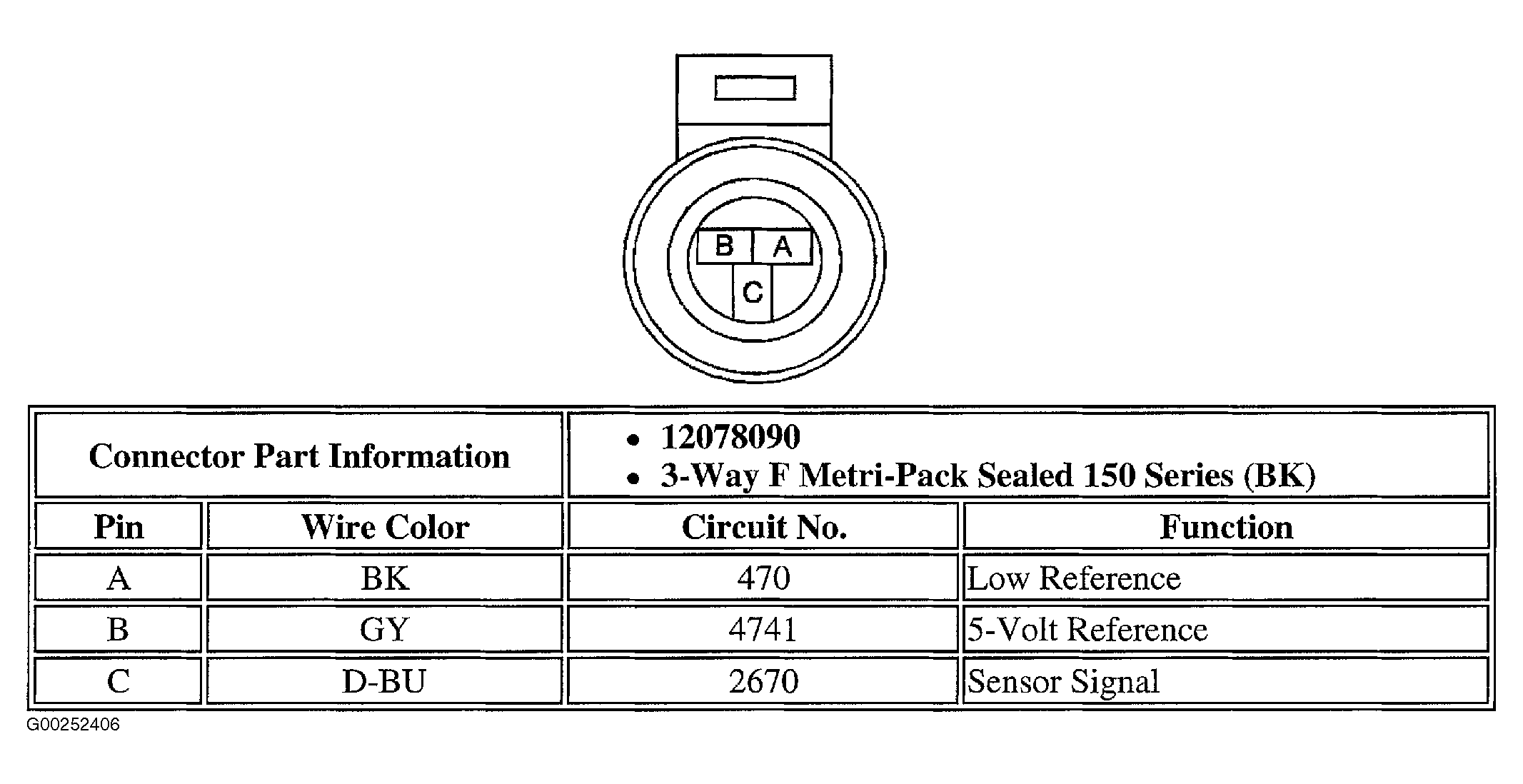

Fig 23: Identifying Fuel Tank Pressure Sensor Connector Terminals
Courtesy of GENERAL MOTORS CORP.

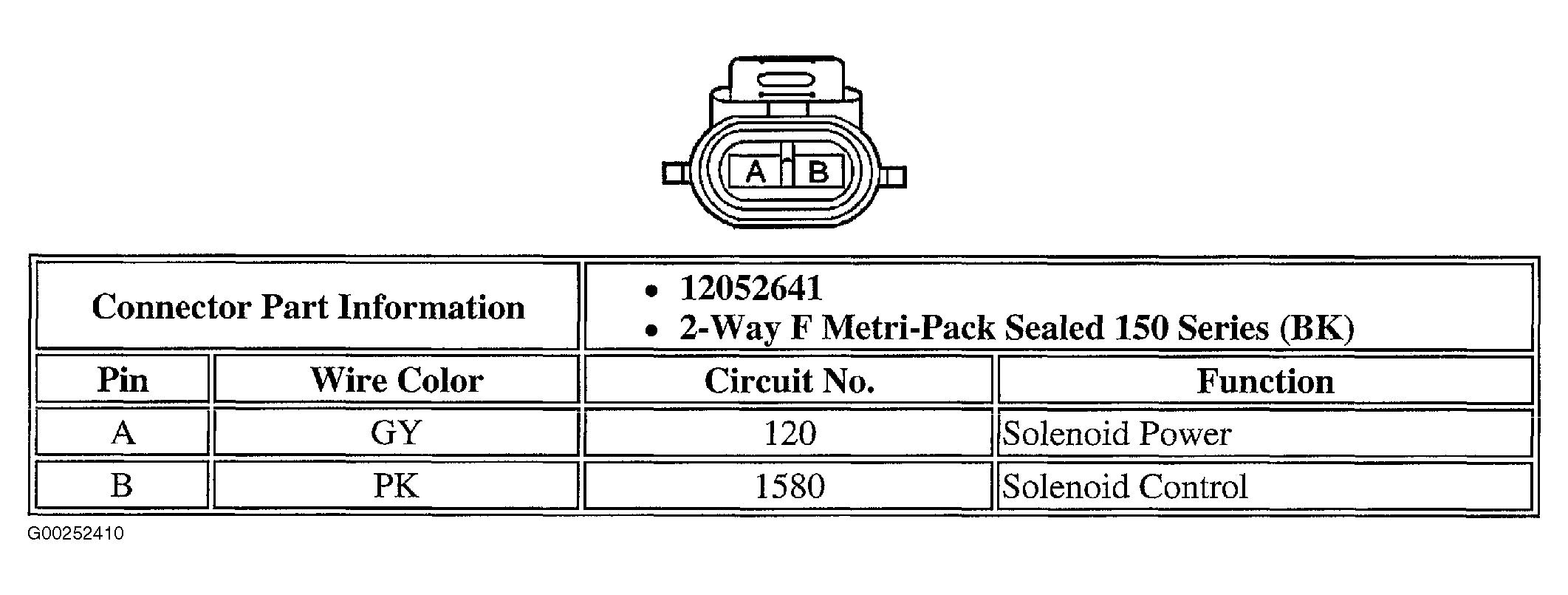

Fig 24: Identifying High Pressure Lock-Off Solenoid Connector Terminals
Courtesy of GENERAL MOTORS CORP.

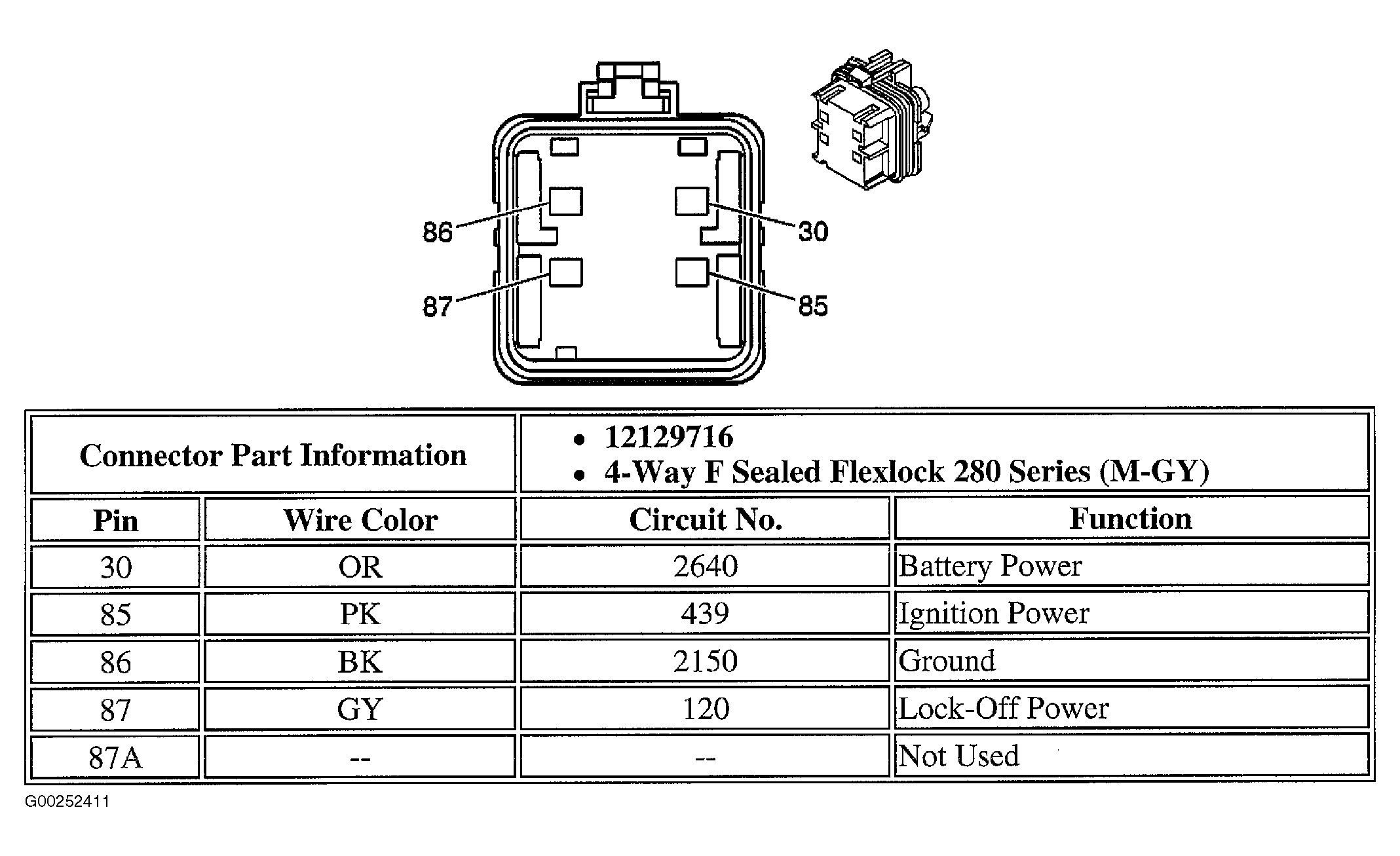

Fig 25: Identifying Lock-Off Relay Connector Terminal - Alternative Fuel
Courtesy of GENERAL MOTORS CORP.

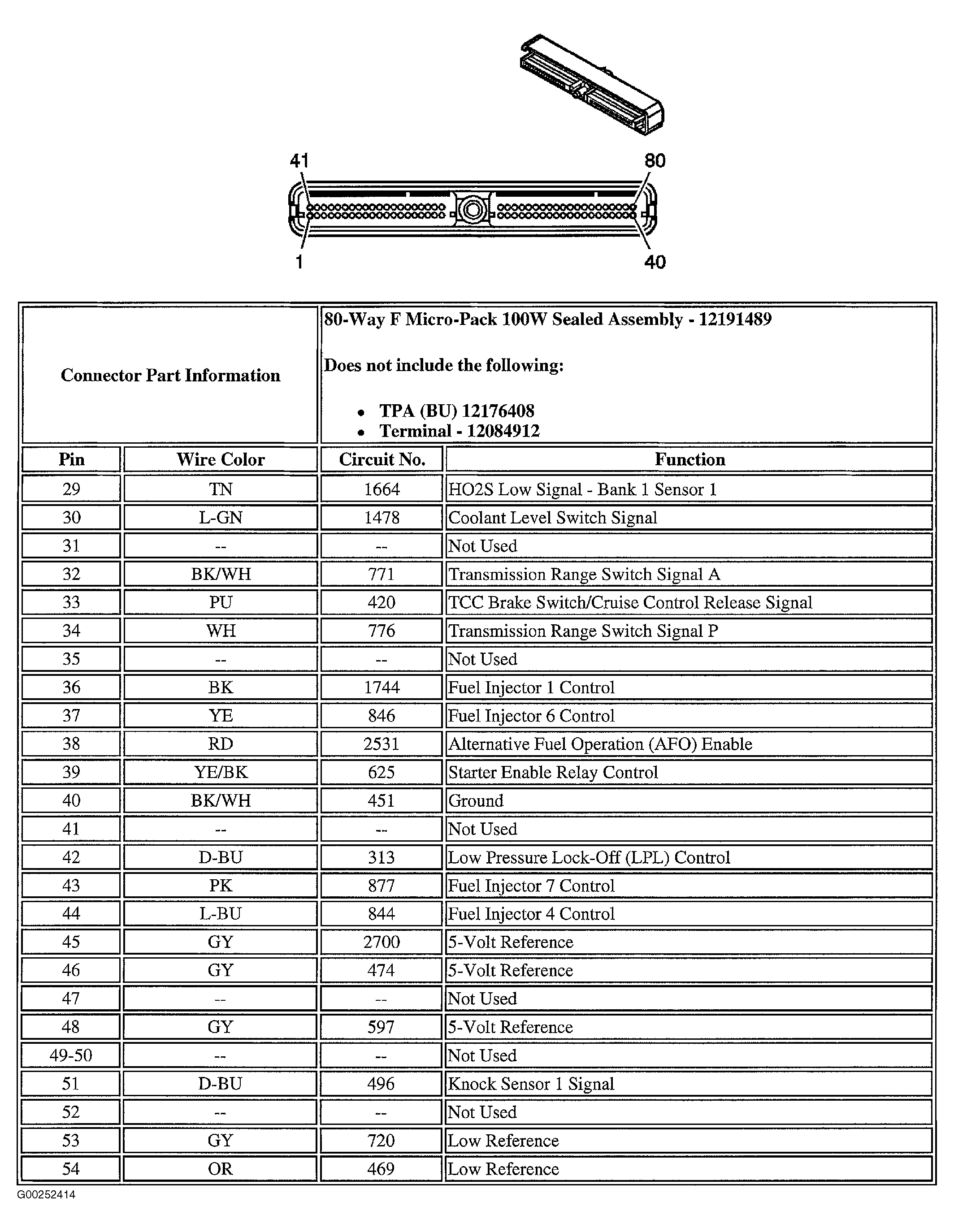

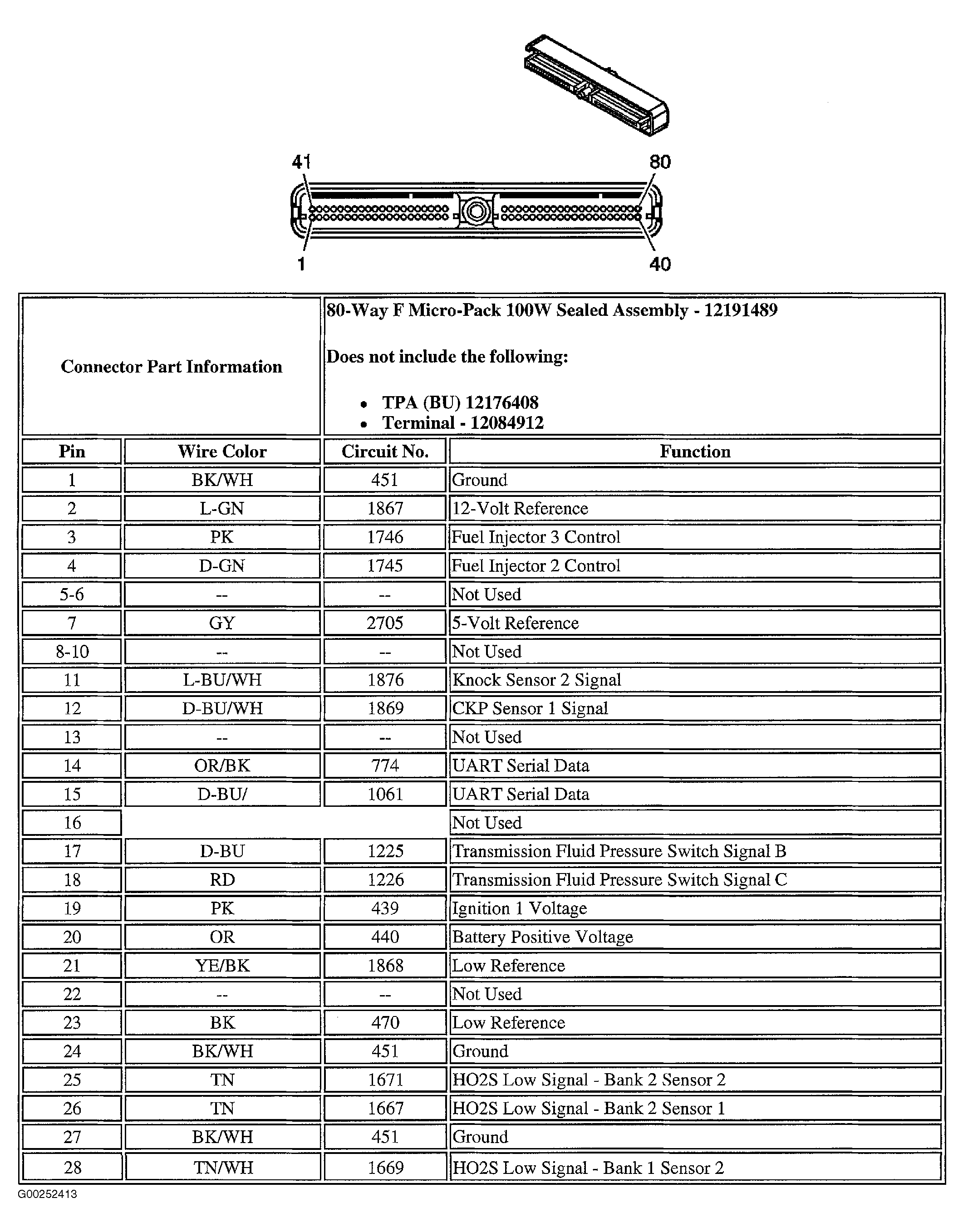

Fig 26: Identifying PCM Connector - C1 Terminals (1 Of 3)
Courtesy of GENERAL MOTORS CORP.
Fig 27: Identifying PCM Connector - C1 Terminals (2 Of 3)
Courtesy of GENERAL MOTORS CORP.
Fig 28: Identifying PCM Connector - C1 Terminals (3 Of 3)
Courtesy of GENERAL MOTORS CORP.

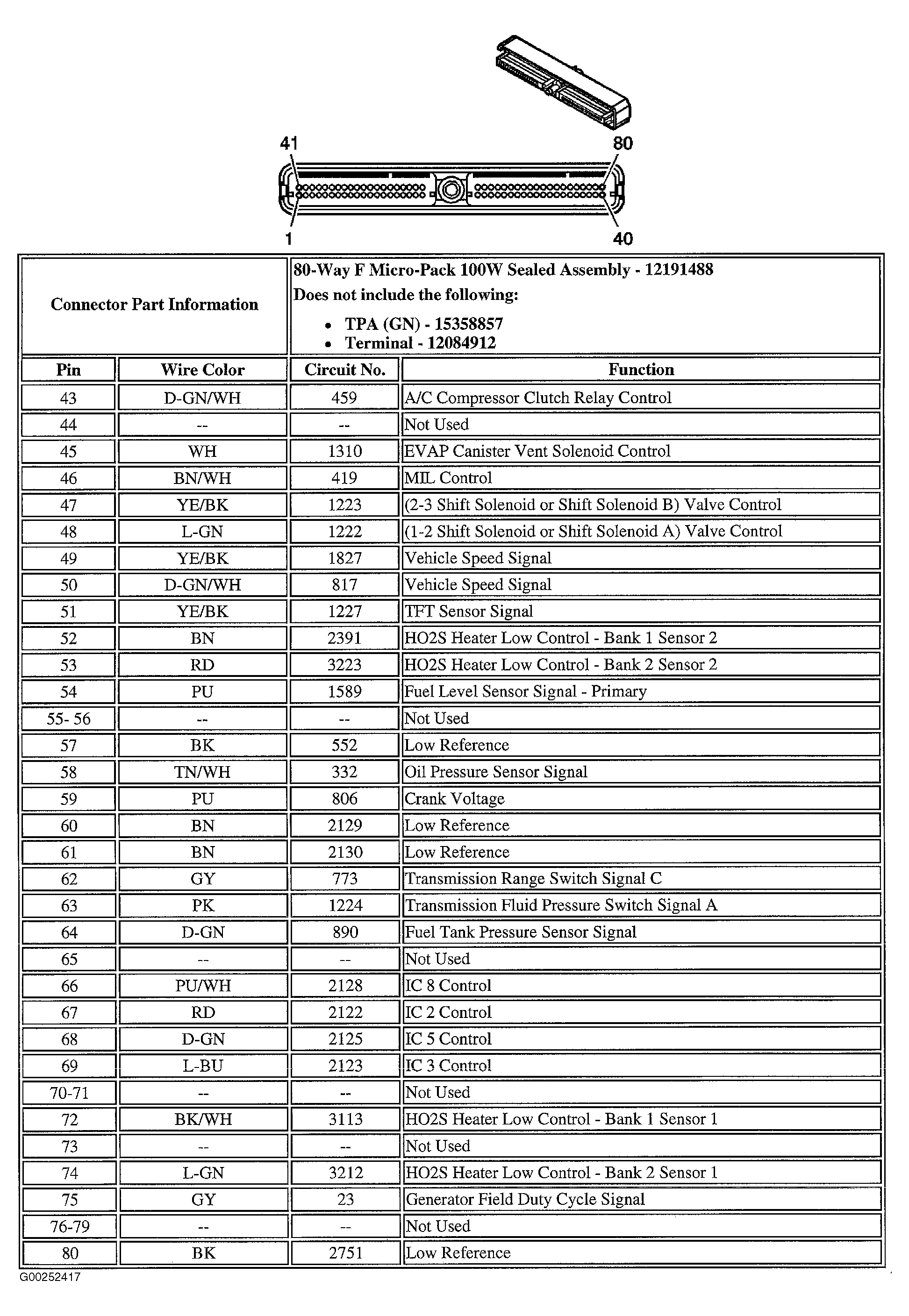

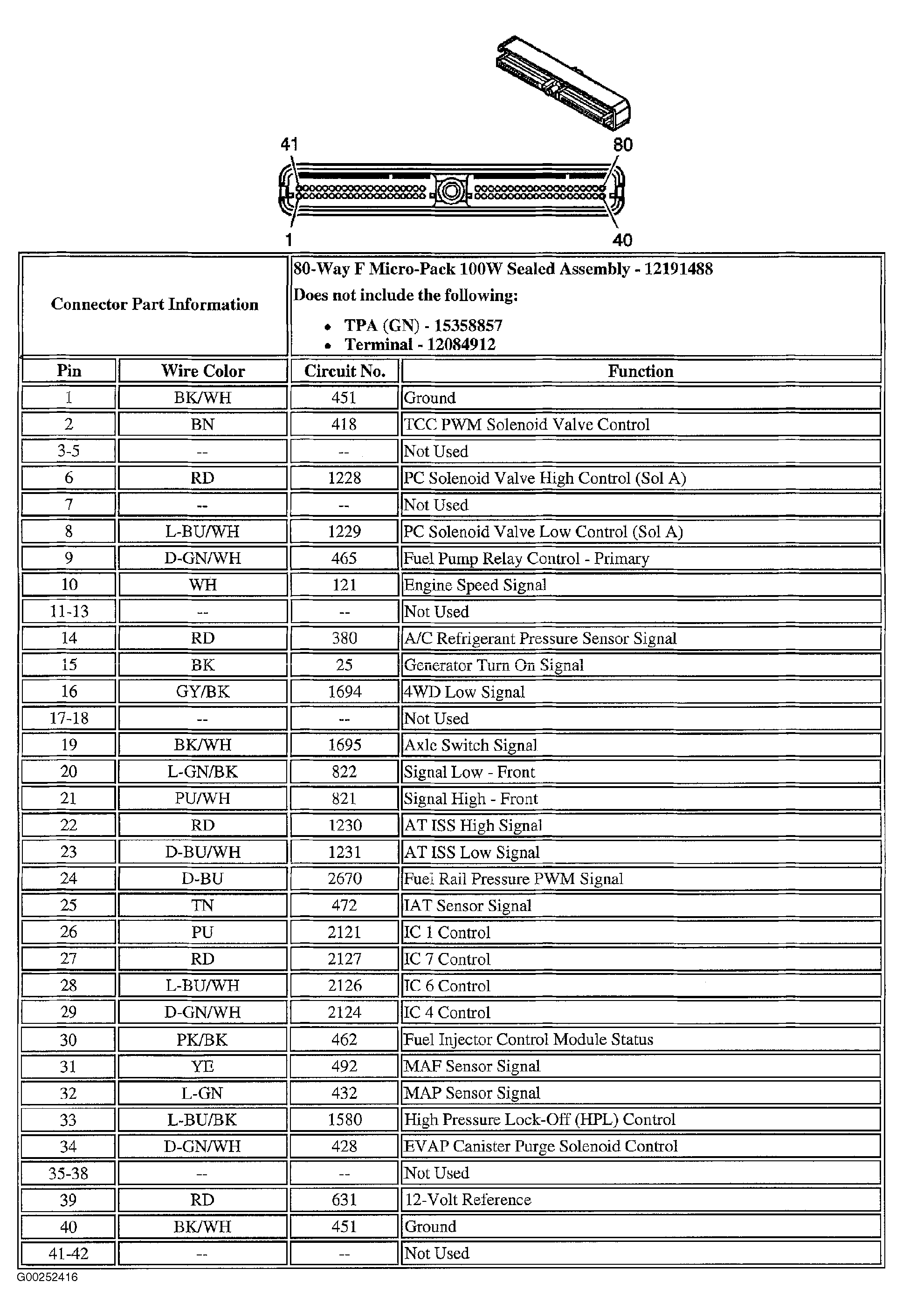

Fig 29: Identifying PCM Connector - C2 Terminals (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

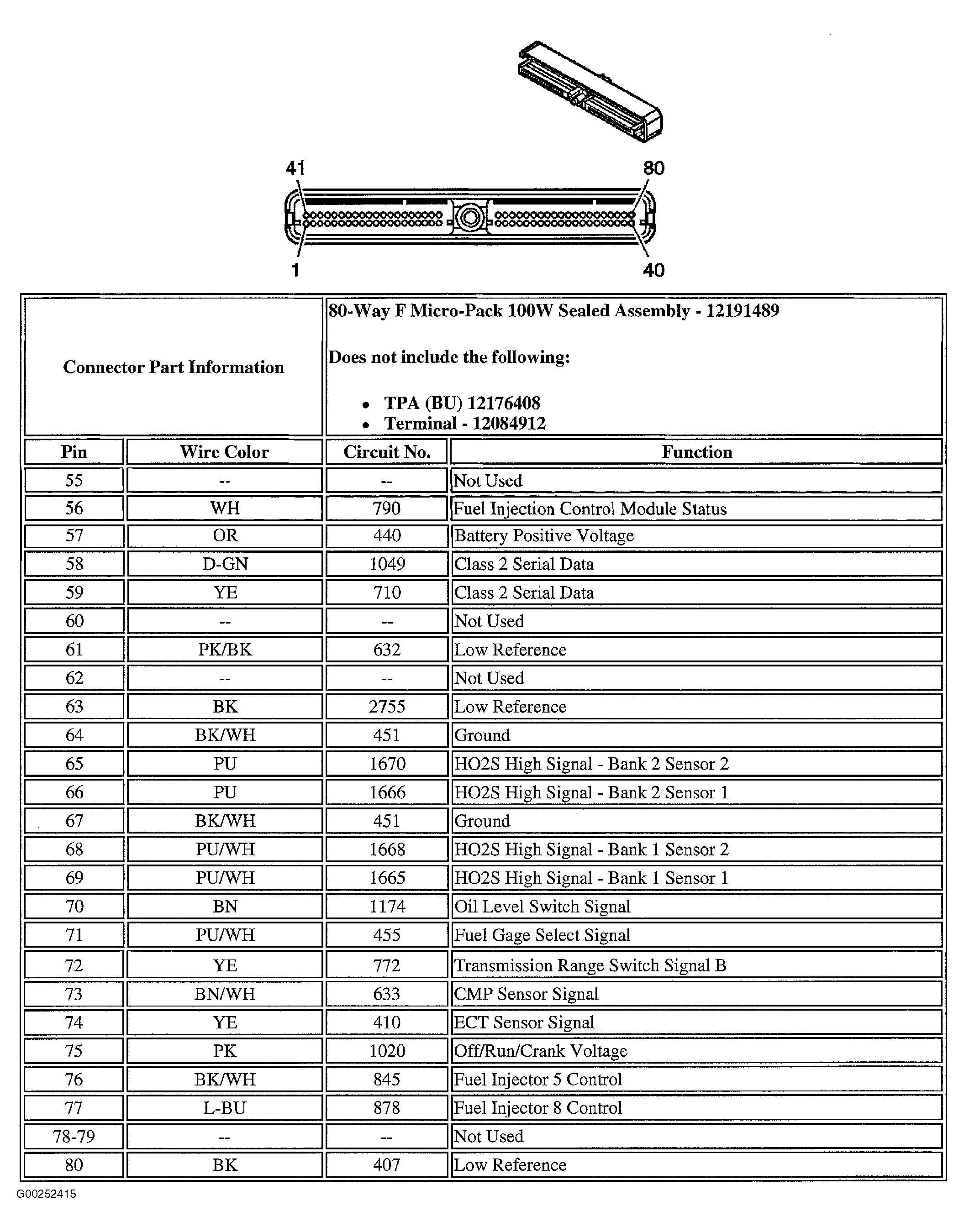

Fig 30: Identifying PCM Connector - C2 Terminals (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
