Low Pressure Lock-Off Solenoid: Removal

WARNING: This page is about a different car, the 2003 GMC Sierra and 2003 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Release fuel pressure. See FUEL SYSTEM PRESSURE RELEASE  under FUEL SYSTEMS. Disconnect the negative battery cable(s).
  2. Disconnect the Low Pressure Lock-Off (LPL) solenoid electrical connector. Disconnect the fuel inlet line from the LPL fitting. Remove the Intermediate Pressure Regulator (IPR) fuel outlet line hold-down nut. See Fig 1 . Remove the fuel outlet line hold down. Disconnect the IPR fuel outlet lines from the IPR.
  3. Remove the IPR/LPL bracket nuts. See Fig 2 . Remove the IPR/LPL assembly from the vehicle. Remove the bolts that retain the IPR/LPL assembly to the bracket. While holding the line union rotate and remove the IPR or the LPL as required. See Fig 3 .
Fig 1: Removing/Installing IPR-To-Fuel Rail Lines
G00079517Courtesy of GENERAL MOTORS CORP.

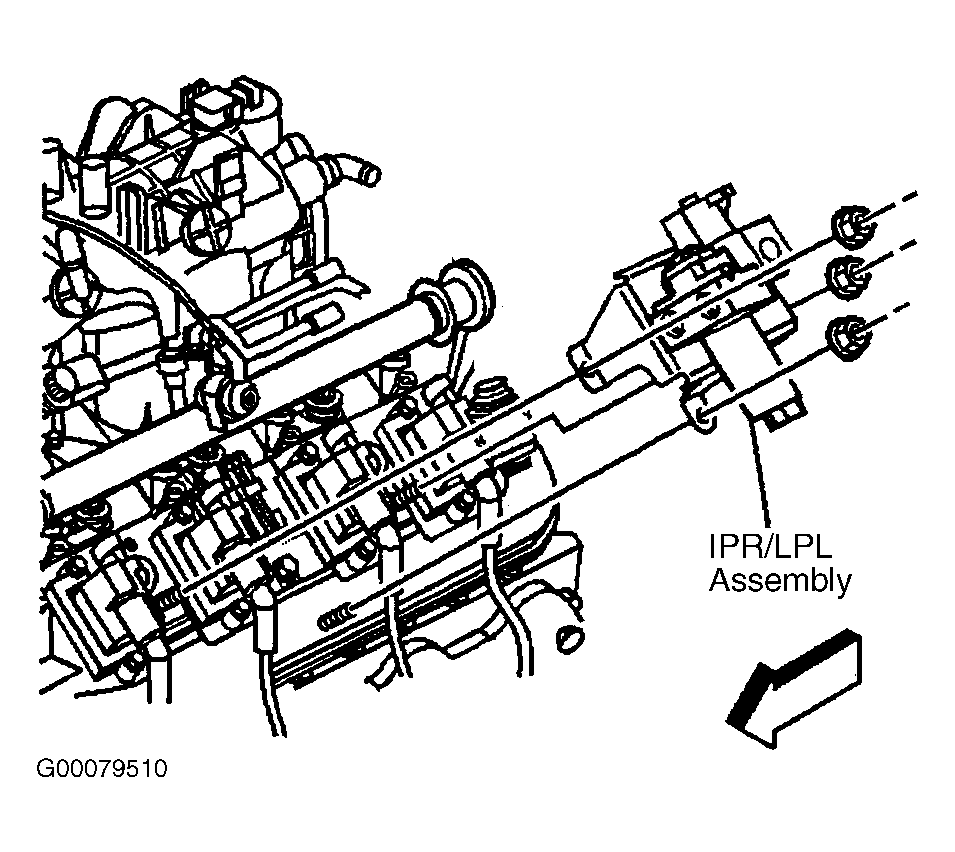

Fig 2: Removing/Installing IPR/LPL Assembly
G00079510Courtesy of GENERAL MOTORS CORP.
Fig 3: Separating IPR and LPL
G00079511Courtesy of GENERAL MOTORS CORP.
