Removal (Pickup)

WARNING: This page is about a different car, the 2003 GMC Sierra and 2003 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Combustible Gas Detector (J-45878) is required for this procedure. See Figure .

Relieve the fuel system pressure. See FUEL SYSTEM PRESSURE RELEASE . Disconnect the negative battery cable(s). Remove the tank cover. See FUEL TANK COVER .

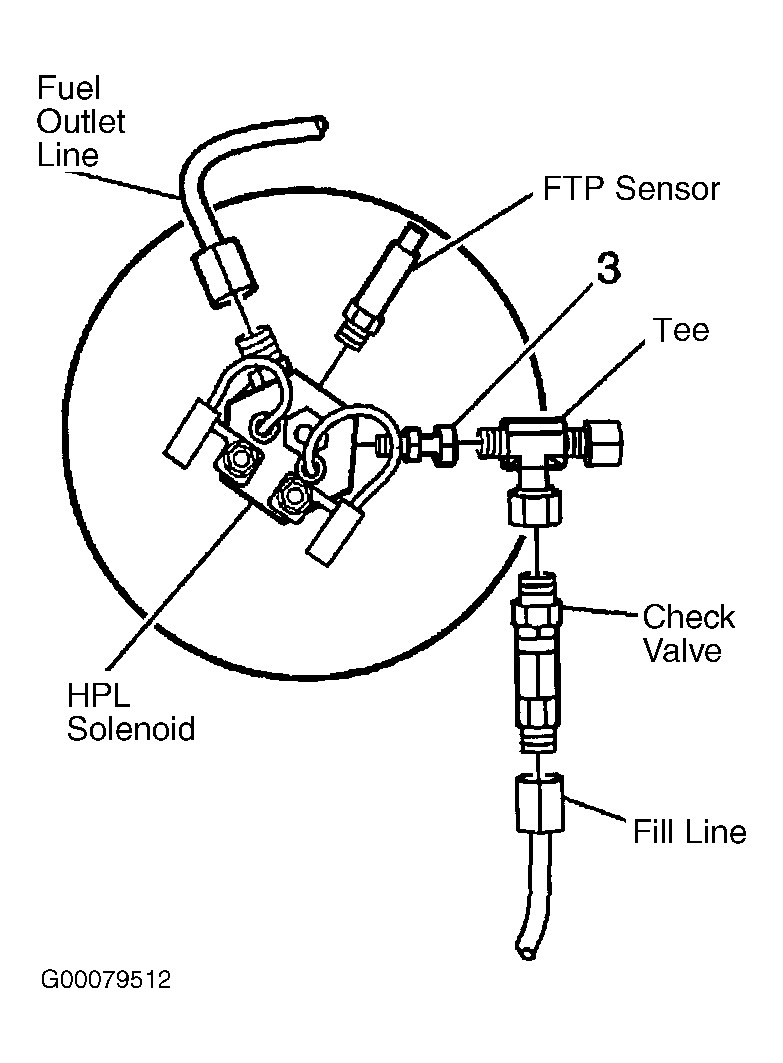

Disconnect the fill line from the check valve. See Figure . Disconnect the check valve from the tee. Remove the fill line check valve from the vehicle.
