Fuel Injection Control Module: Removal
WARNING: This page is about a different car, the 2003 GMC Sierra and 2003 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

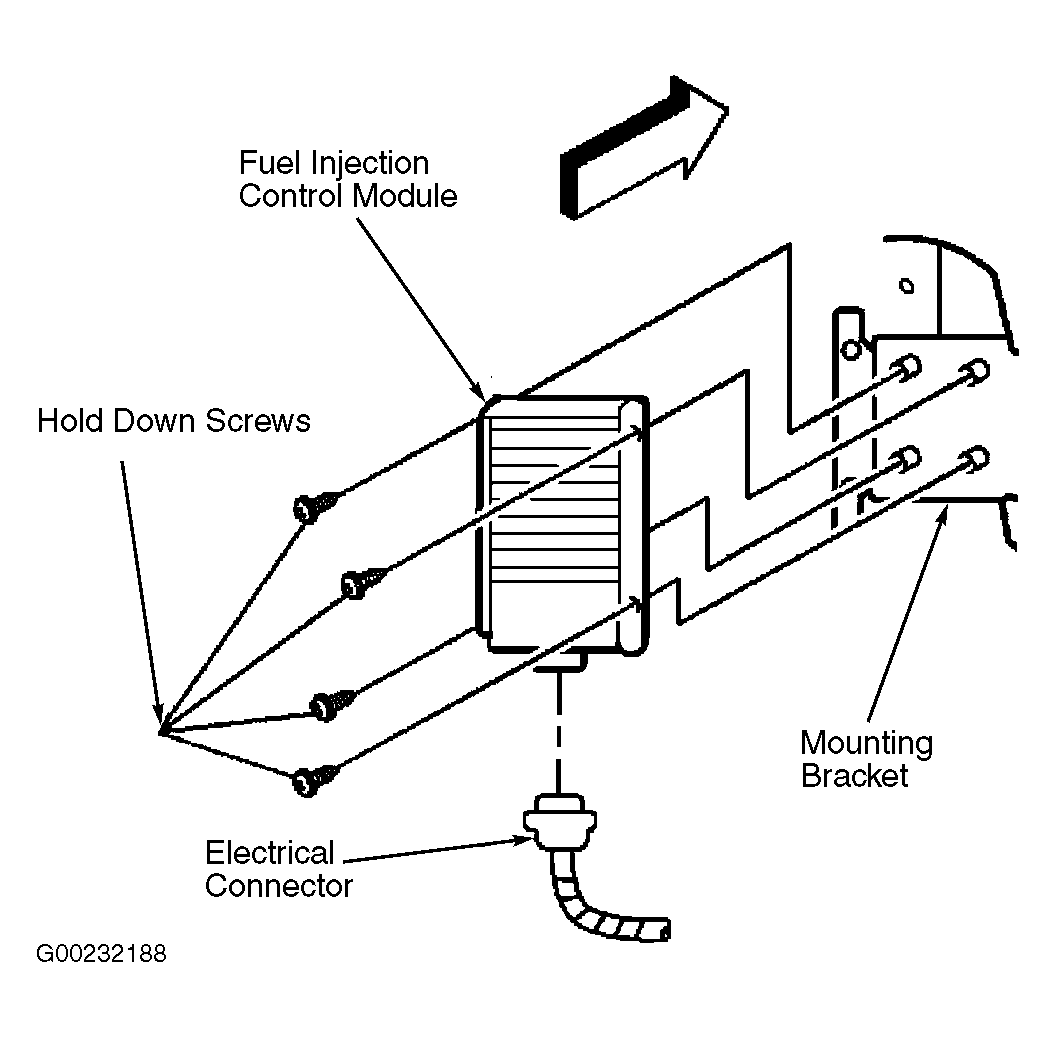

Disconnect the negative battery cable(s). Raise and support the vehicle. Remove the right side wheelhouse panel. Remove the FICM hold-down screws from the mounting bracket. See Figure . Remove the connector position assurance lock and disconnect the electrical connector from the FICM. Remove the FICM.
