Air Cleaner Assembly: Installation
WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
- Install the lower air filter housing/washer solvent tank assembly onto the mounting studs.

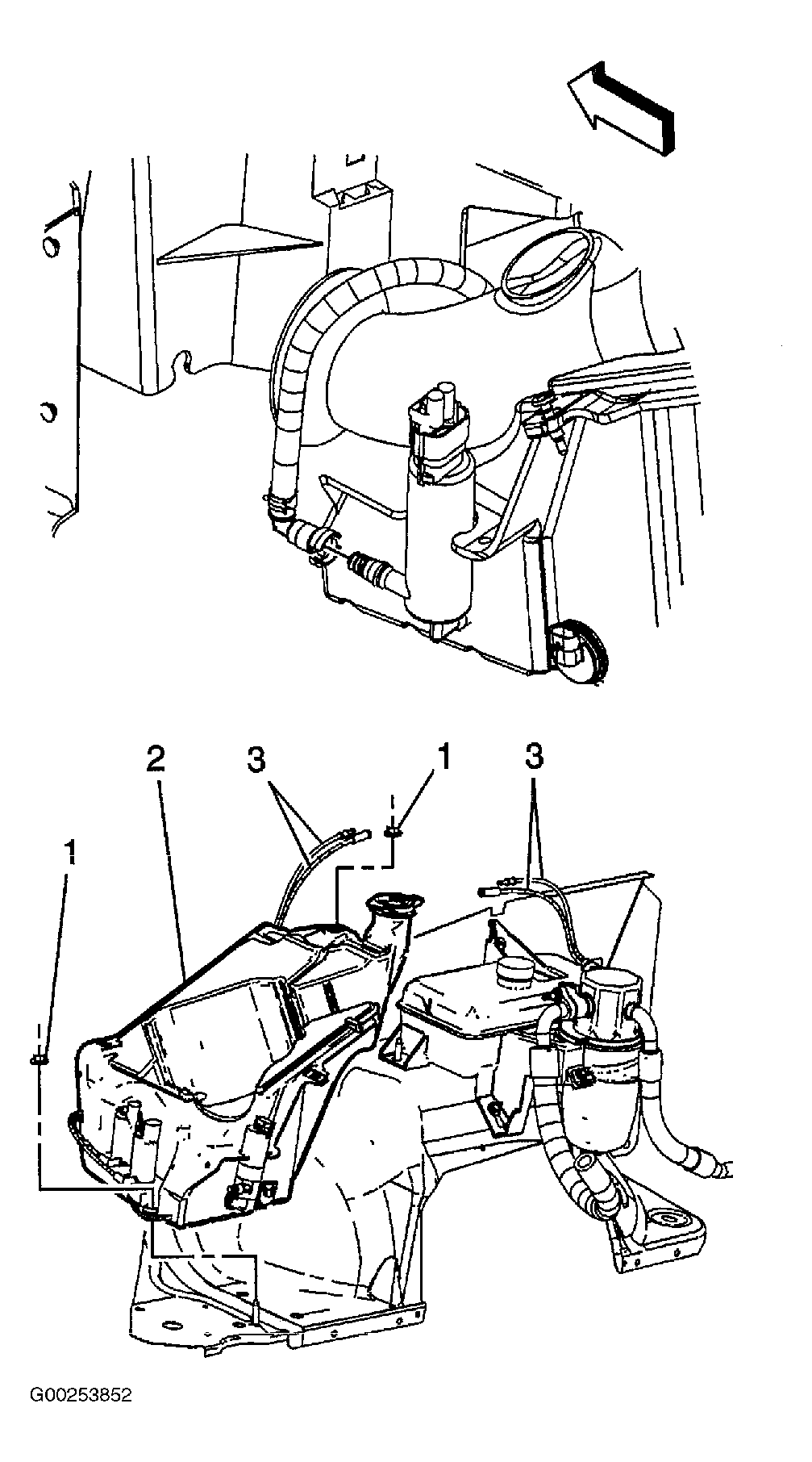

- Connect the washer pump hoses (3) to the washer pumps. See Fig 2.
- Install the 2 air cleaner housing/washer solvent tank assembly retaining nuts (1) to the mounting studs. Tighten the nuts to specification. See TORQUE SPECIFICATIONS .
- If applicable, Connect the headlamp washer hose to the headlamp washer pump located on the lower air cleaner housing/washer solvent tank.

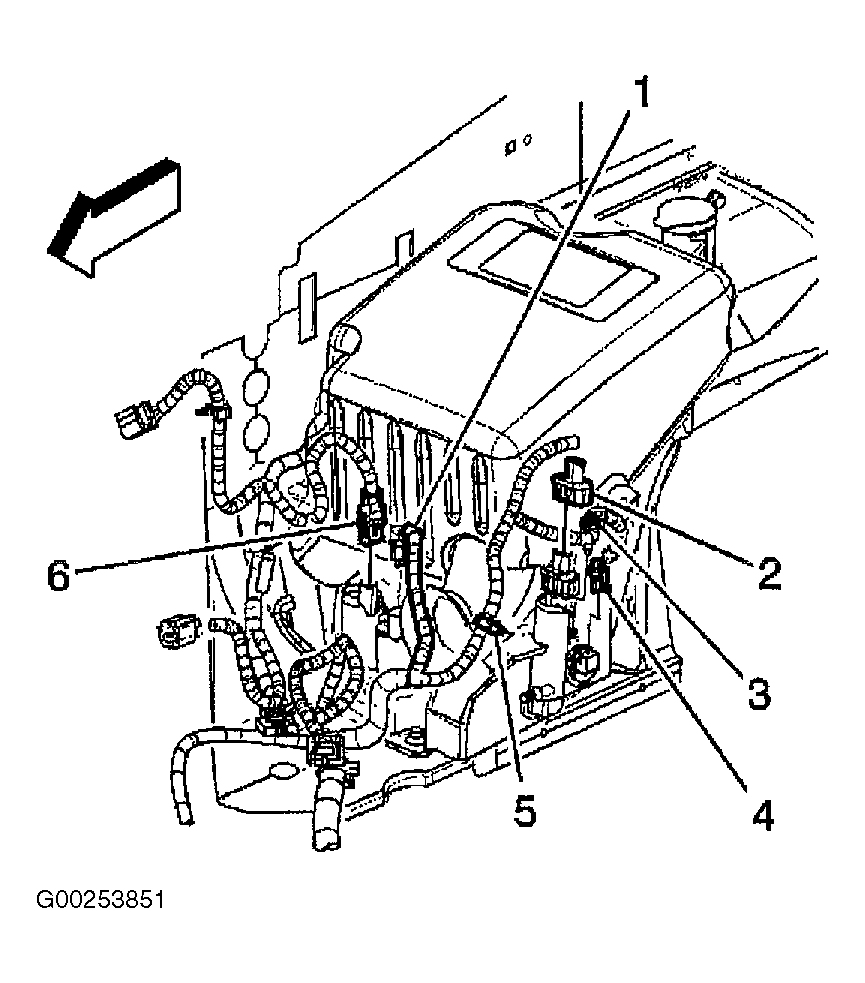

- Connect the following electrical connectors:
- Windshield washer pump (1). See Figure.
- Headlamp washer pump (2), if equipped.
- Low solvent level sensor (4).
- Lift gate washer pump (6), if equipped.
- Install the washer solvent level sensor wire harness to the wire harness retaining clips (3, 5).

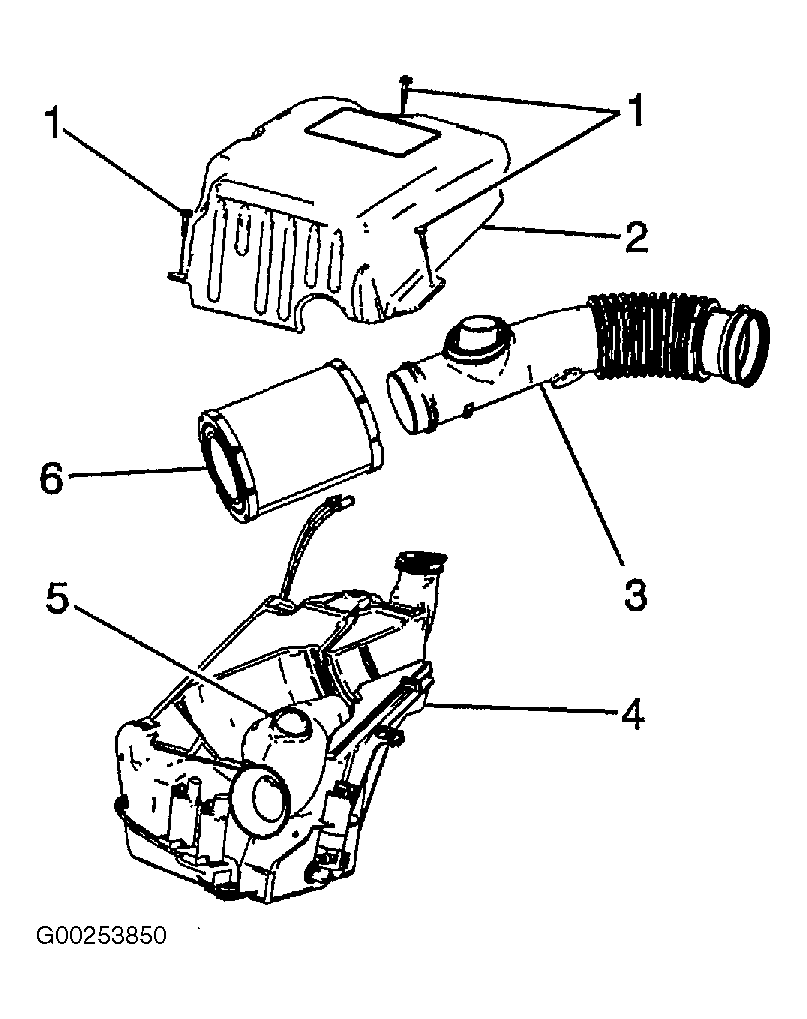

- Install the air inlet duct (5) to the lower air cleaner housing/washer solvent tank assembly (4). See Fig 1.
- Install the air cleaner element (6) and air outlet duct (3) to the lower air cleaner housing/washer solvent tank assembly.
- Install the air cleaner cover/resonator (2).
NOTE:
Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.

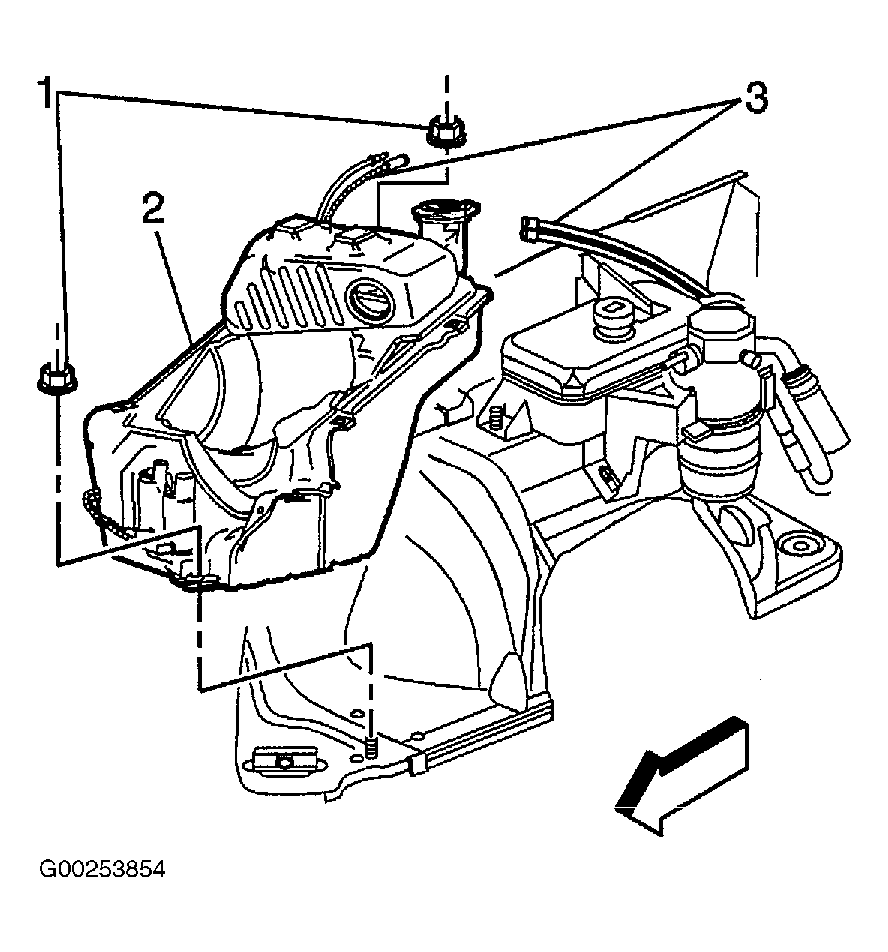

- Install the lower air filter housing/washer solvent tank assembly onto the mounting studs.
- Connect the washer pump hoses (3) to the washer pumps. See Fig 2.
- Install the 2 air cleaner housing/washer solvent tank assembly retaining nuts (1) to the mounting studs. Tighten the nuts to specification. See TORQUE SPECIFICATIONS .
- If applicable, connect the headlamp washer hose to the headlamp washer pump located on the lower air cleaner housing/washer solvent tank.
- Connect the following electrical connectors:
- Windshield washer pump (1). See Fig 3.
- Headlamp washer pump (2), if equipped.
- Low solvent level sensor (4).
- Lift gate washer pump (6), if equipped.
- Install the washer solvent level sensor wire harness to the wire harness retaining clips (3, 5).

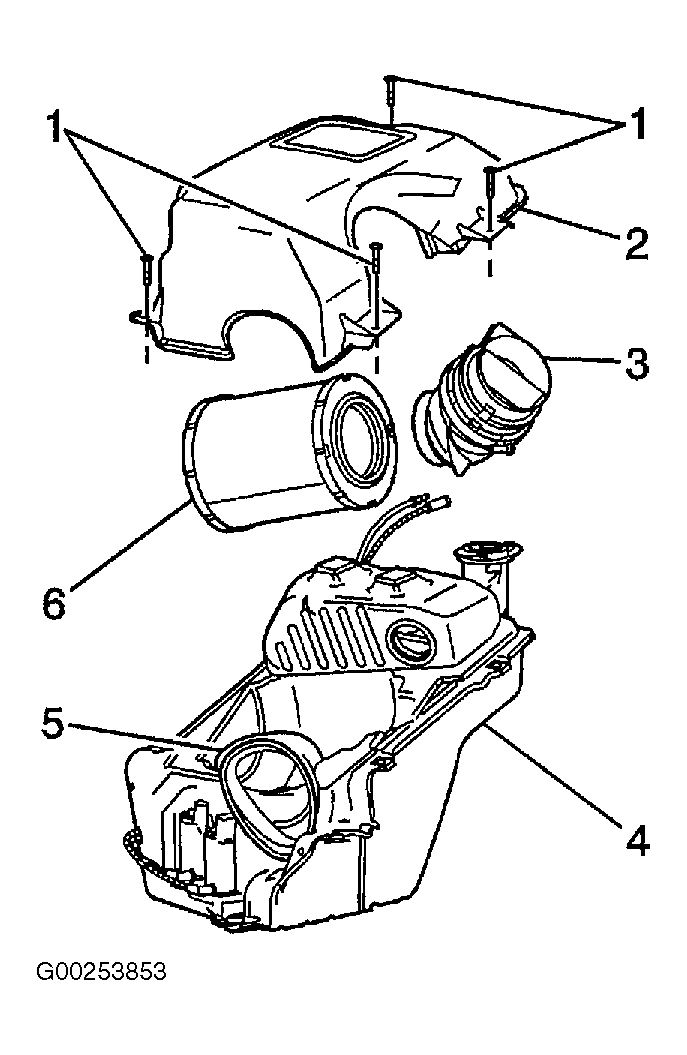

- Install the air cleaner cover (2), the filter element (6), the Mass Air Flow/Intake Air Temperature (MAF/IAT) sensor (3), and the air inlet duct (5) to the lower air cleaner housing/washer solvent tank assembly (4). See Fig 1.
