Removal & Installation (4.8L, 5.3L & 6.0L)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Clean the area around the Camshaft Position (CMP) sensor before removal in order to prevent debris from entering the engine.

Remove the engine cover. Disconnect the CMP sensor electrical connector. Remove the CMP sensor bolt. See Fig 1. Remove the CMP sensor. To install, reverse removal procedure. Tighten fasteners to specification. See TORQUE SPECIFICATIONS .

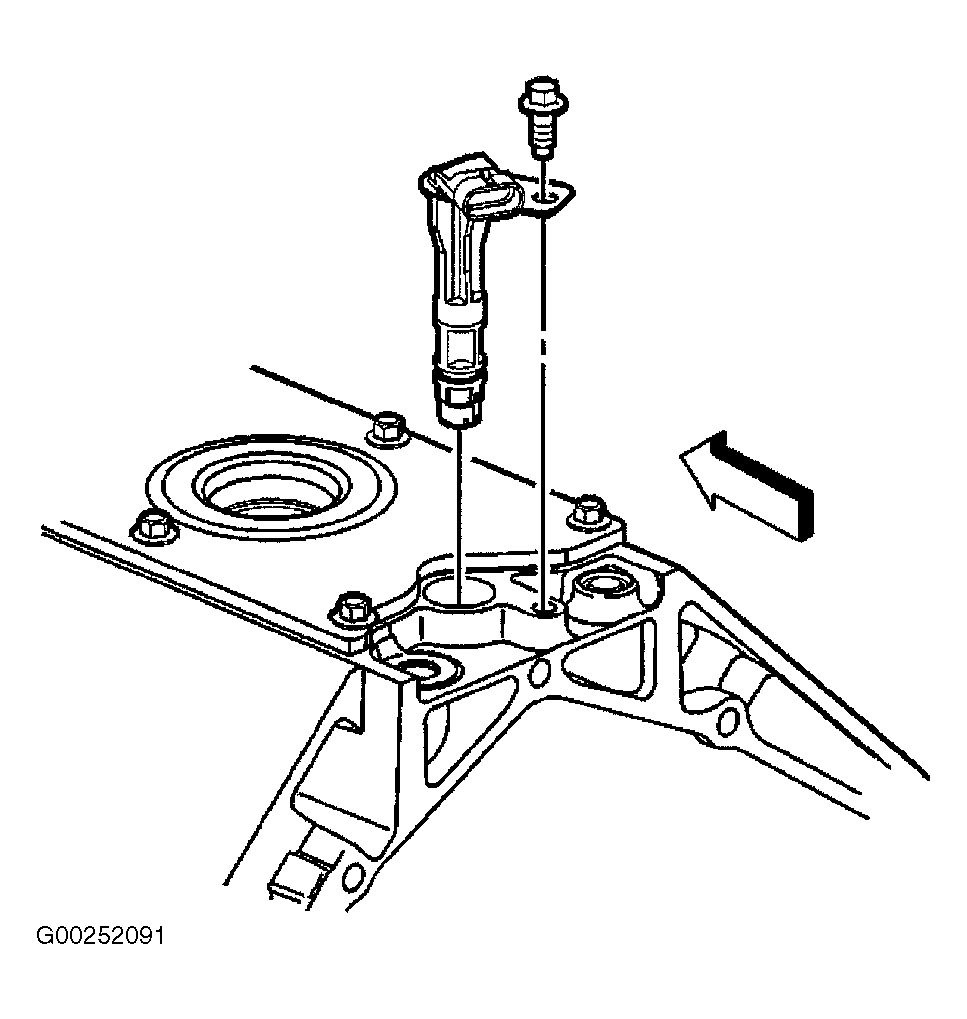

Fig 1: Removing/Installing Camshaft Position Sensor (4.8L, 5.3L & 6.0L)

Courtesy of GENERAL MOTORS CORP.
