Removal & Installation
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Before servicing any electrical component, the ignition key must be in the OFF or LOCK position and all electrical loads must be OFF, unless instructed otherwise in these procedures. If a tool or equipment could easily come in contact with a live exposed electrical terminal, also disconnect the negative battery cable. Failure to follow these precautions may cause personal injury and/or damage to the vehicle or its components.
NOTE:
DO NOT handle the fuel sender assembly by the fuel pipes. The amount of leverage generated by handling the fuel pipes could damage the joints.
- Disconnect the negative battery cable. Relieve the fuel system pressure. See FUEL SYSTEM PRESSURE RELEASE . Drain the fuel tank. Remove the fuel tank. See FUEL TANK .

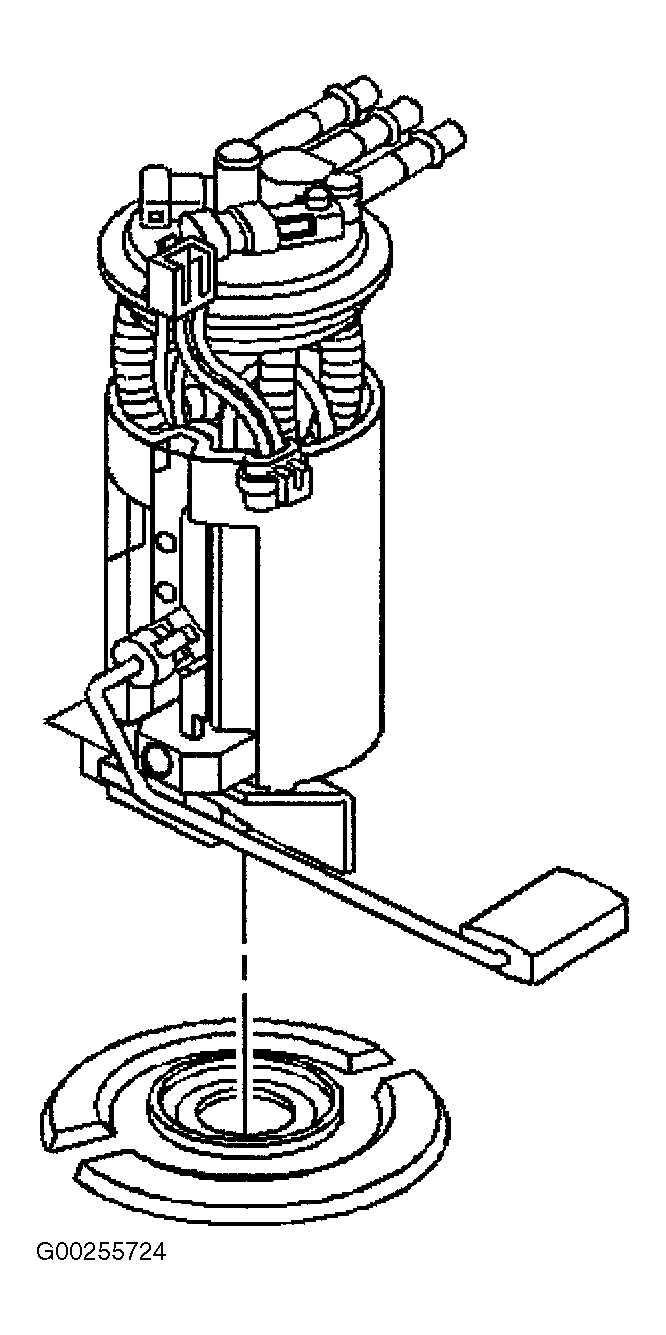

- Remove the retaining ring from the fuel sender assembly using Fuel Sender Lock Nut Wrench (J 39765). Remove the fuel sender assembly and the seal. See Fig 1. Discard the seal. Clean the fuel sender sealing surfaces.
- Install the NEW seal on the fuel tank. Install the fuel sender assembly into the fuel tank. To complete installation, reverse removal procedure.
- Turn ignition on for 2 seconds. Turn ignition off for 10 seconds. Turn ignition on. Inspect for fuel leaks. Install the engine cover.
CAUTION:
Drain the fuel from the fuel sender assembly into an approved container in order to reduce the risk of fire and personal injury. Never store the fuel in an open container.
NOTE:
The fuel strainer must be in a horizontal position when the fuel sender is installed in the tank. When installing the fuel sender assembly, assure that the fuel strainer does not block full travel of the float arm.
