Removal & Installation (4.8L, 5.3L & 6.0L)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

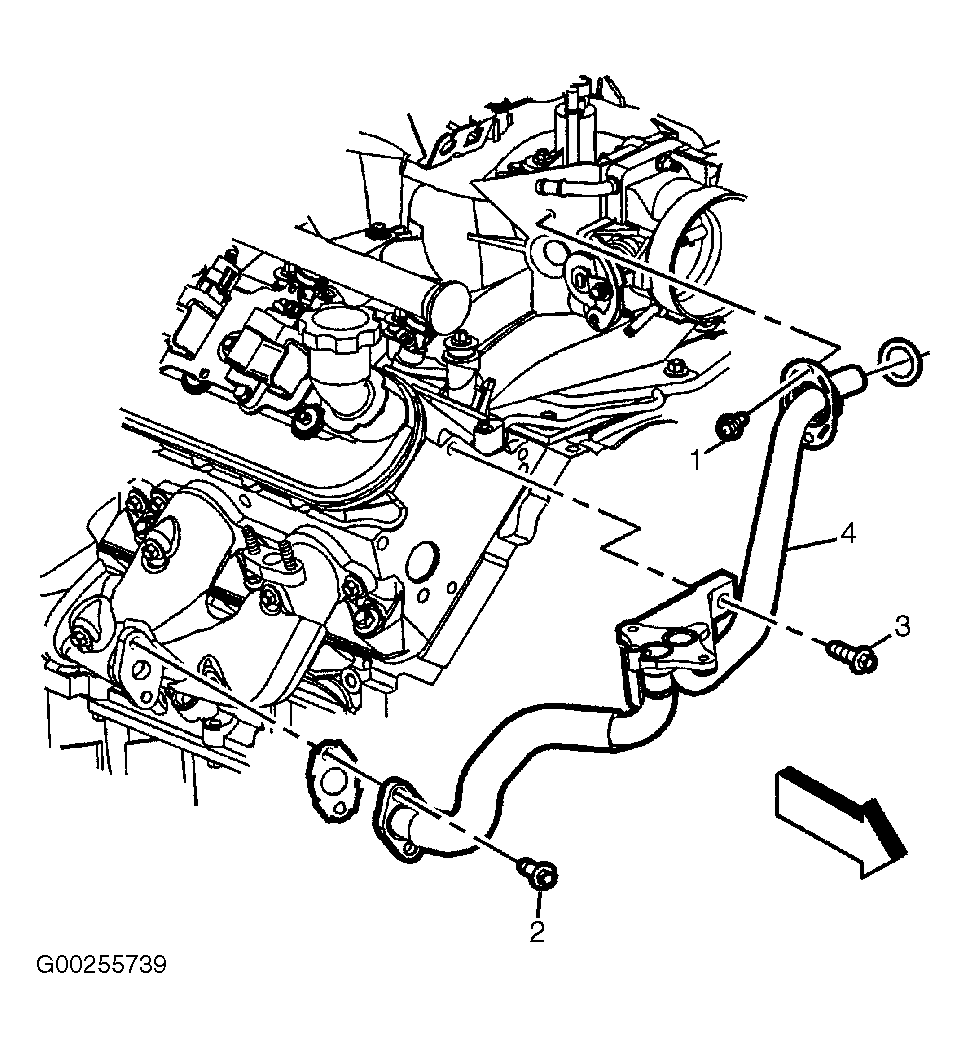

Remove the exhaust gas recirculation (EGR) valve. See REMOVAL & INSTALLATION (EGR VALVE - 4.8L, 5.3L & 6.0L) . Remove the EGR pipe to intake manifold fasteners (1) and discard "O" ring. See Fig 1. Remove the EGR pipe to exhaust manifold fasteners (2) and discard gasket. Remove the EGR pipe mounting fasteners from the right cylinder head (3). Remove the EGR pipe (4). To install, reverse removal procedure. Use NEW "O" ring and gasket. Tighten all fasteners to specification. See TORQUE SPECIFICATIONS .
