Diagnostic Procedure

WARNING: This page is about a different car, the 2003 GMC Envoy XL and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

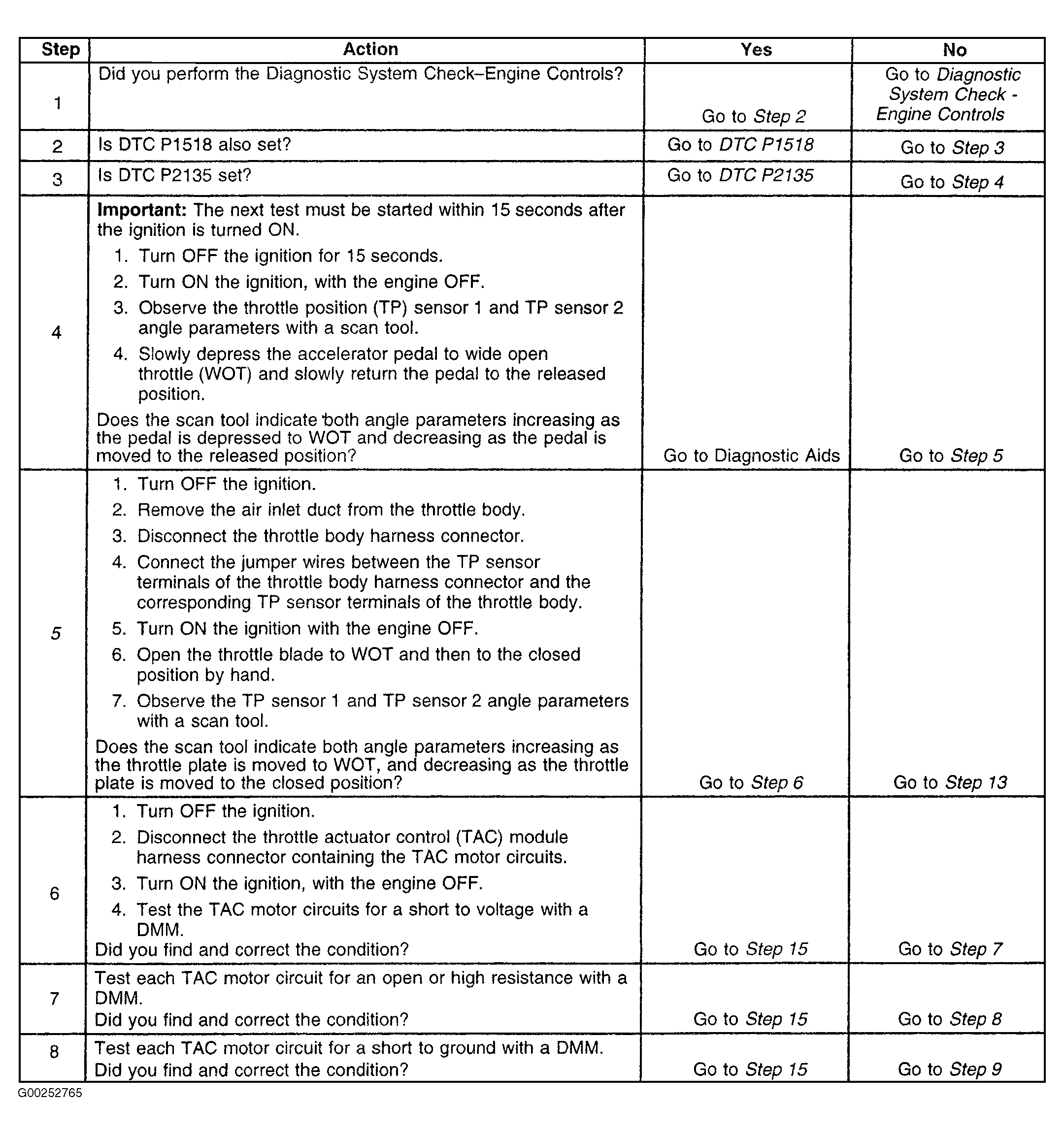

Fig 1: DTC P1515: Predicted VS Actual Throttle Position Correlation Error (Steps 1-8)
G00252765Courtesy of GENERAL MOTORS CORP.

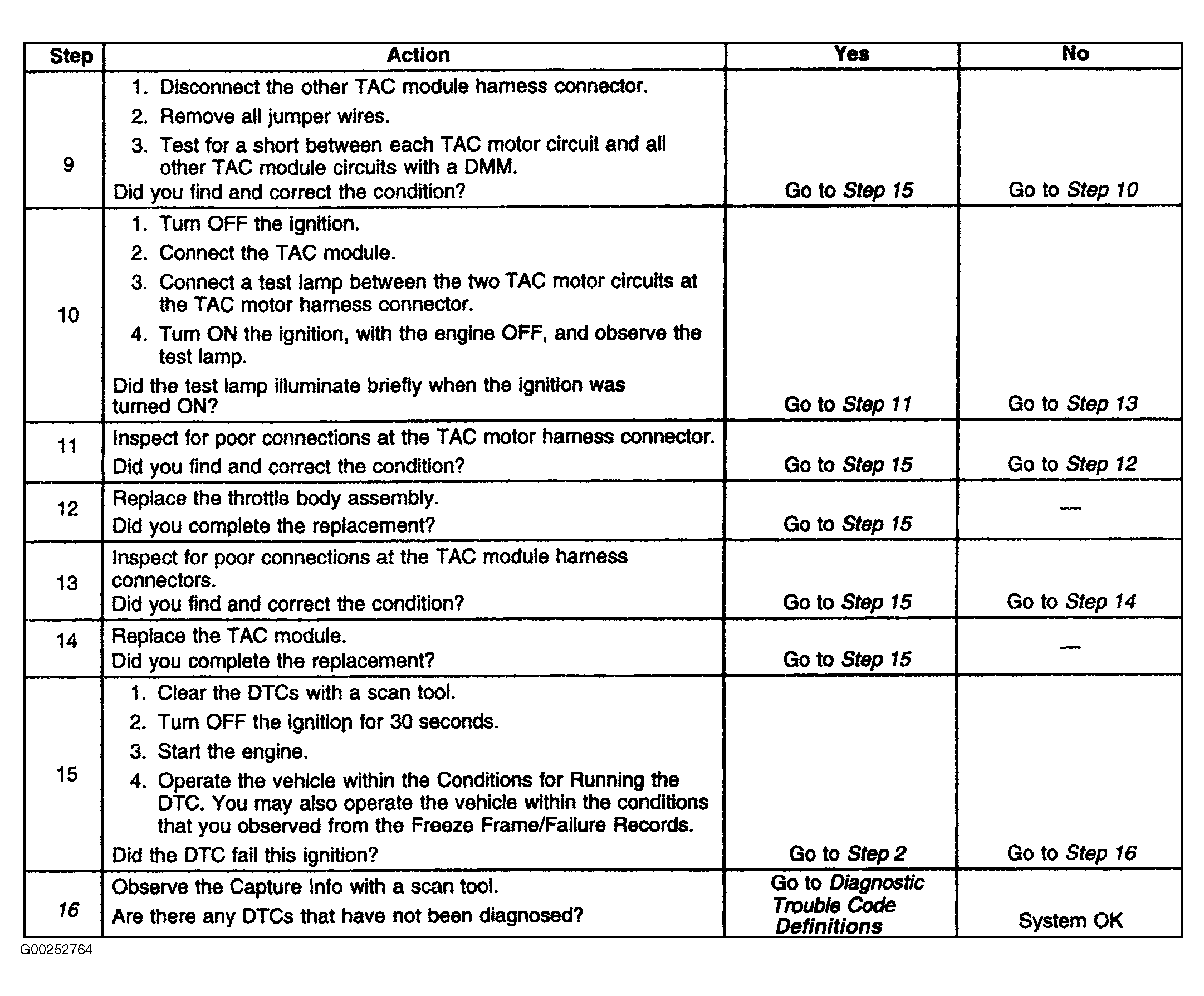

Fig 2: DTC P1515: Predicted VS Actual Throttle Position Correlation Error (Steps 9-16)
G00252764Courtesy of GENERAL MOTORS CORP.
