Diagnostic Procedure

WARNING: This page is about a different car, the 2003 GMC Envoy XL and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

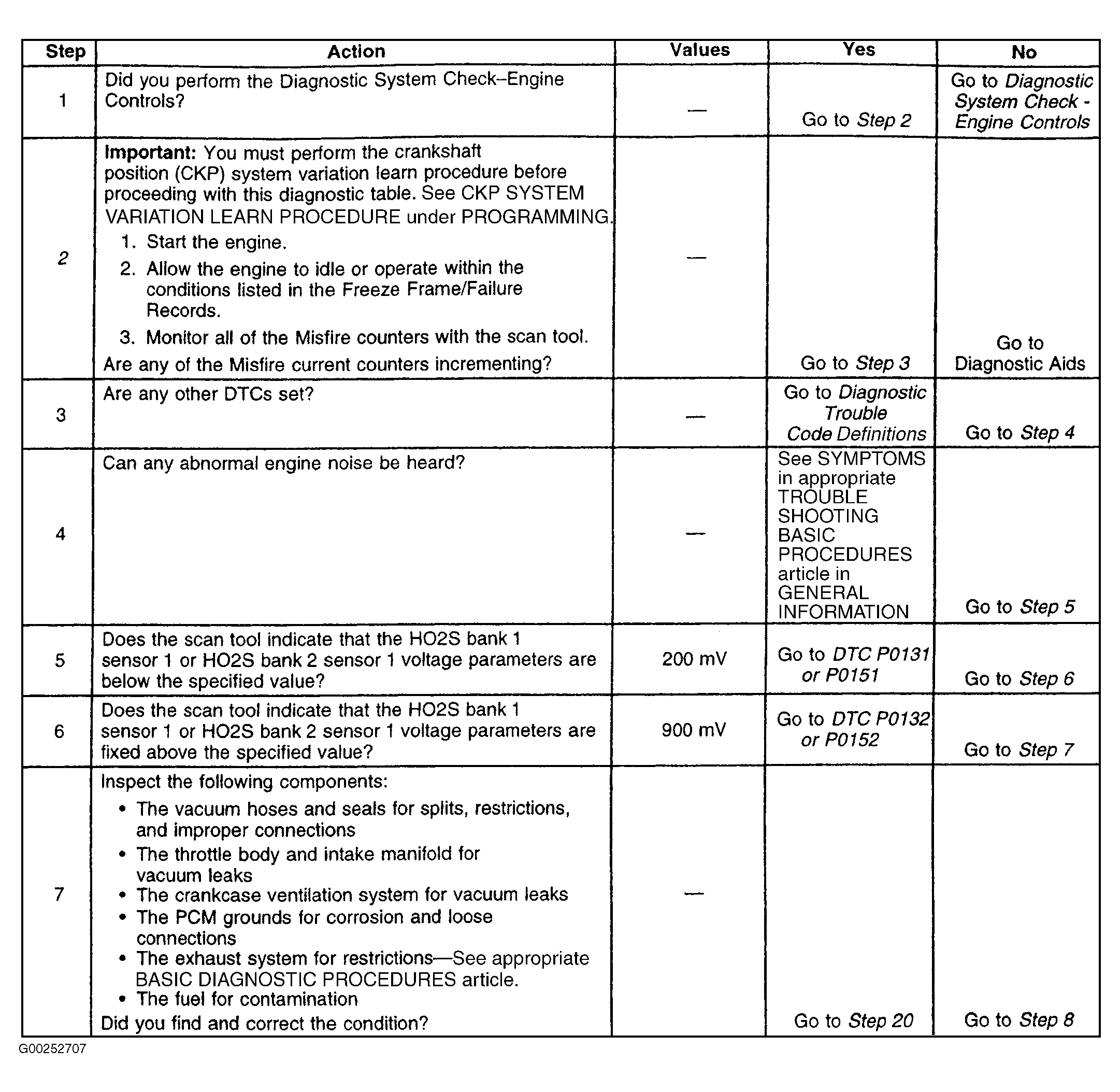

Fig 1: DTC P0300: Engine Misfire Detected (Steps 1-7)

Courtesy of GENERAL MOTORS CORP.

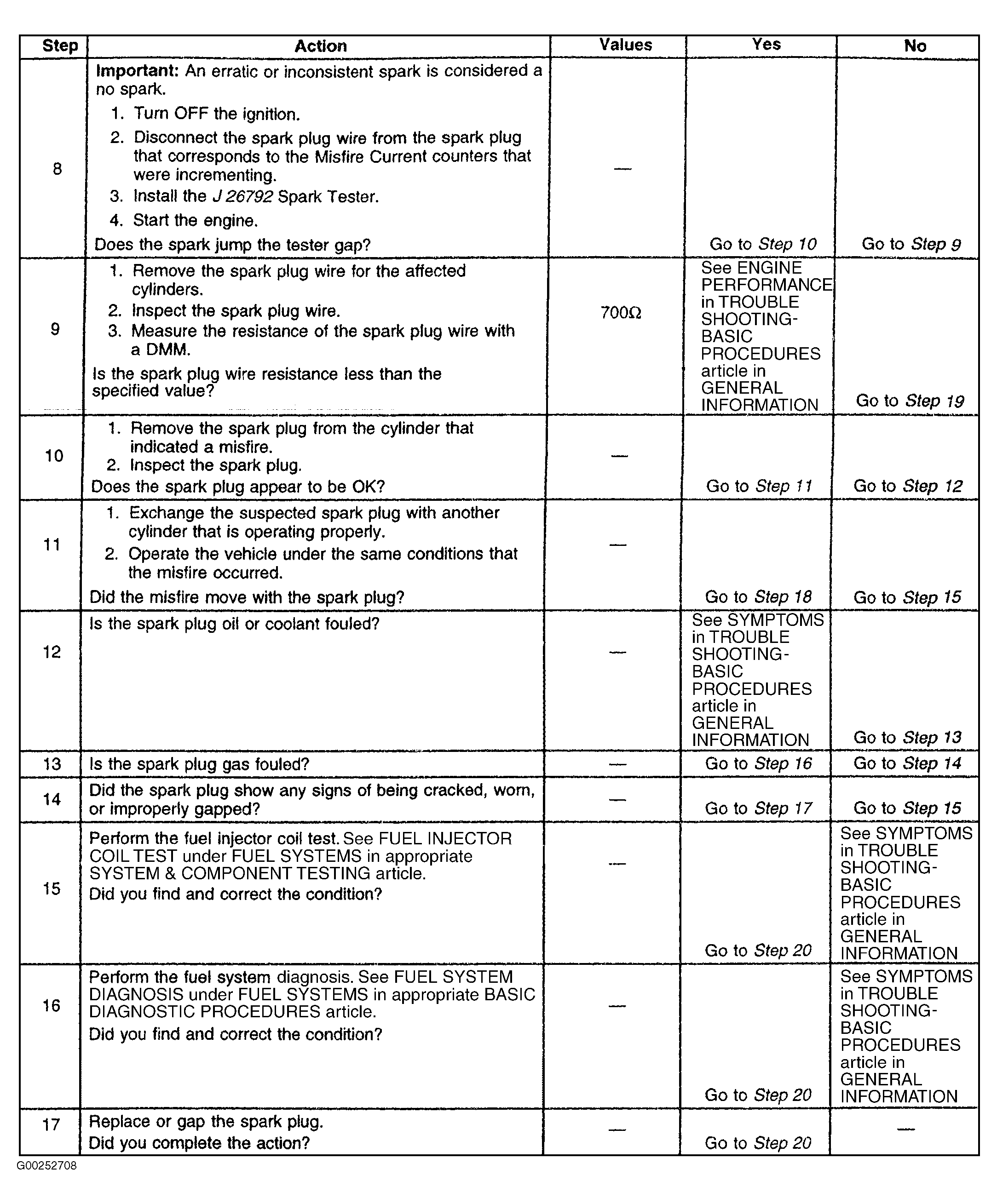

Fig 2: DTC P0300: Engine Misfire Detected (Steps 8-17)

Courtesy of GENERAL MOTORS CORP.

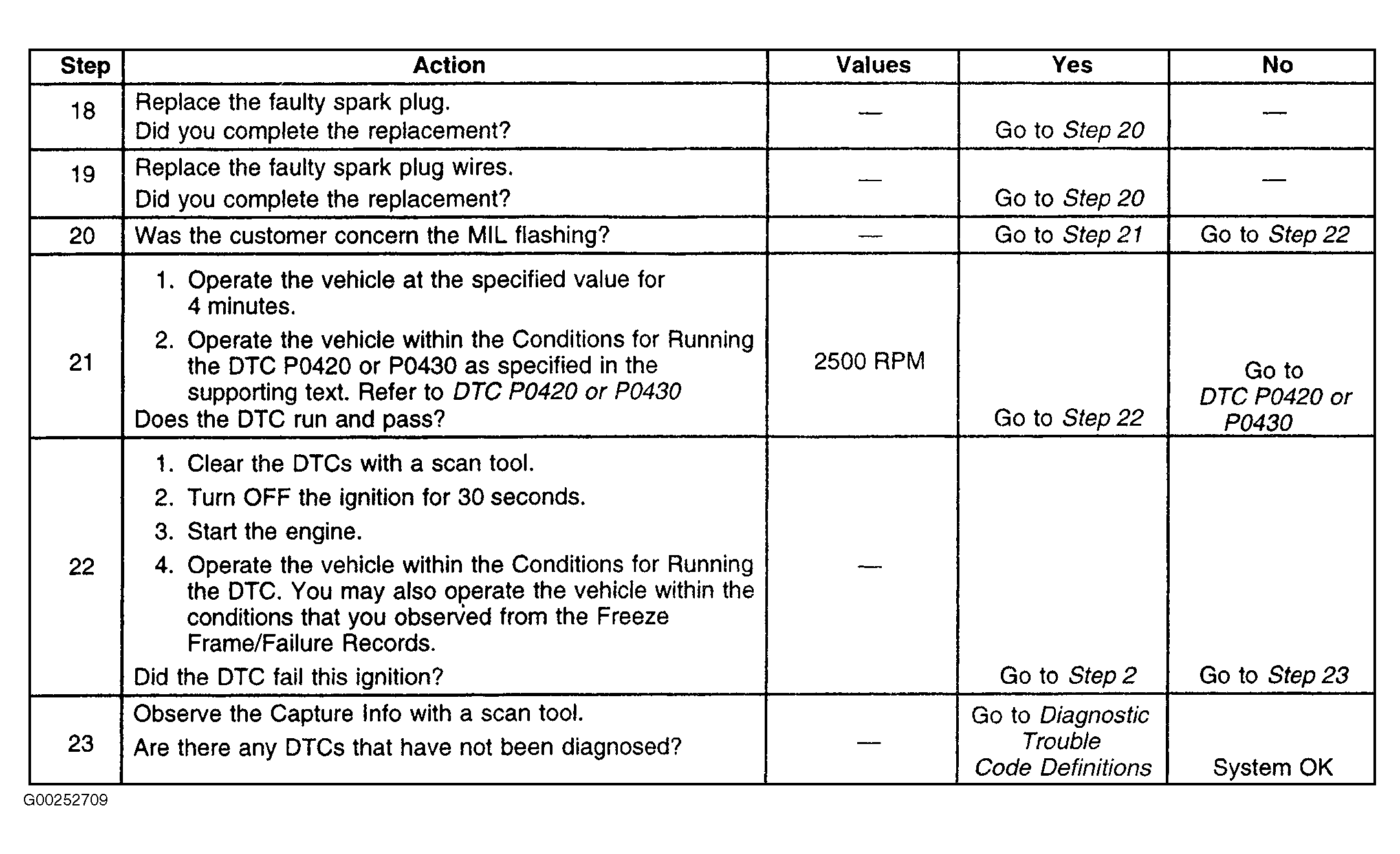

Fig 3: DTC P0300: Engine Misfire Detected (Steps 18-23)

Courtesy of GENERAL MOTORS CORP.
