Diagnostic Procedures

WARNING: This page is about a different car, the 2003 GMC Envoy XL and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

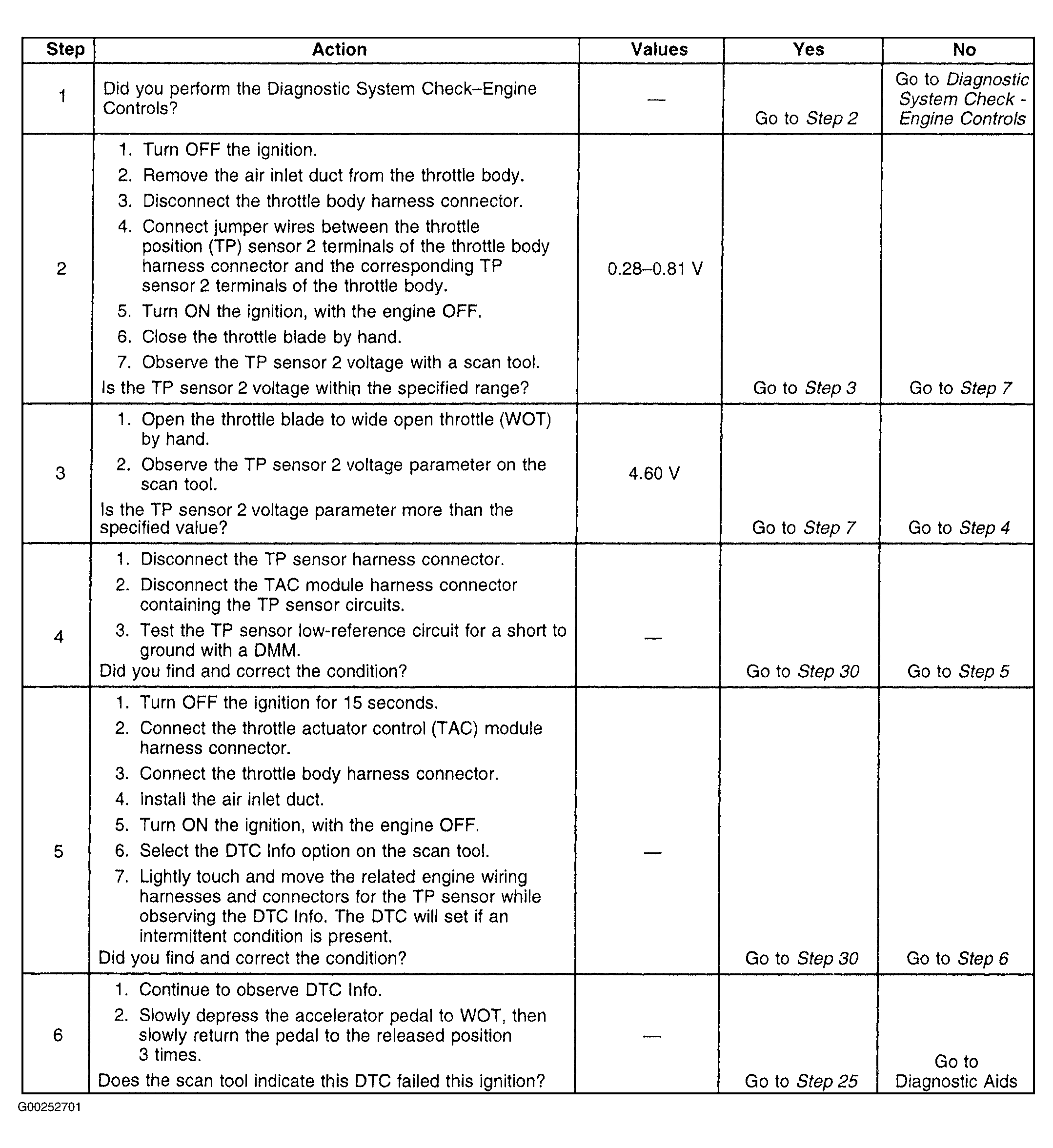

Fig 1: DTC P0220: Throttle Position Sensor 2 Circuit (Steps 1-6)

Courtesy of GENERAL MOTORS CORP.

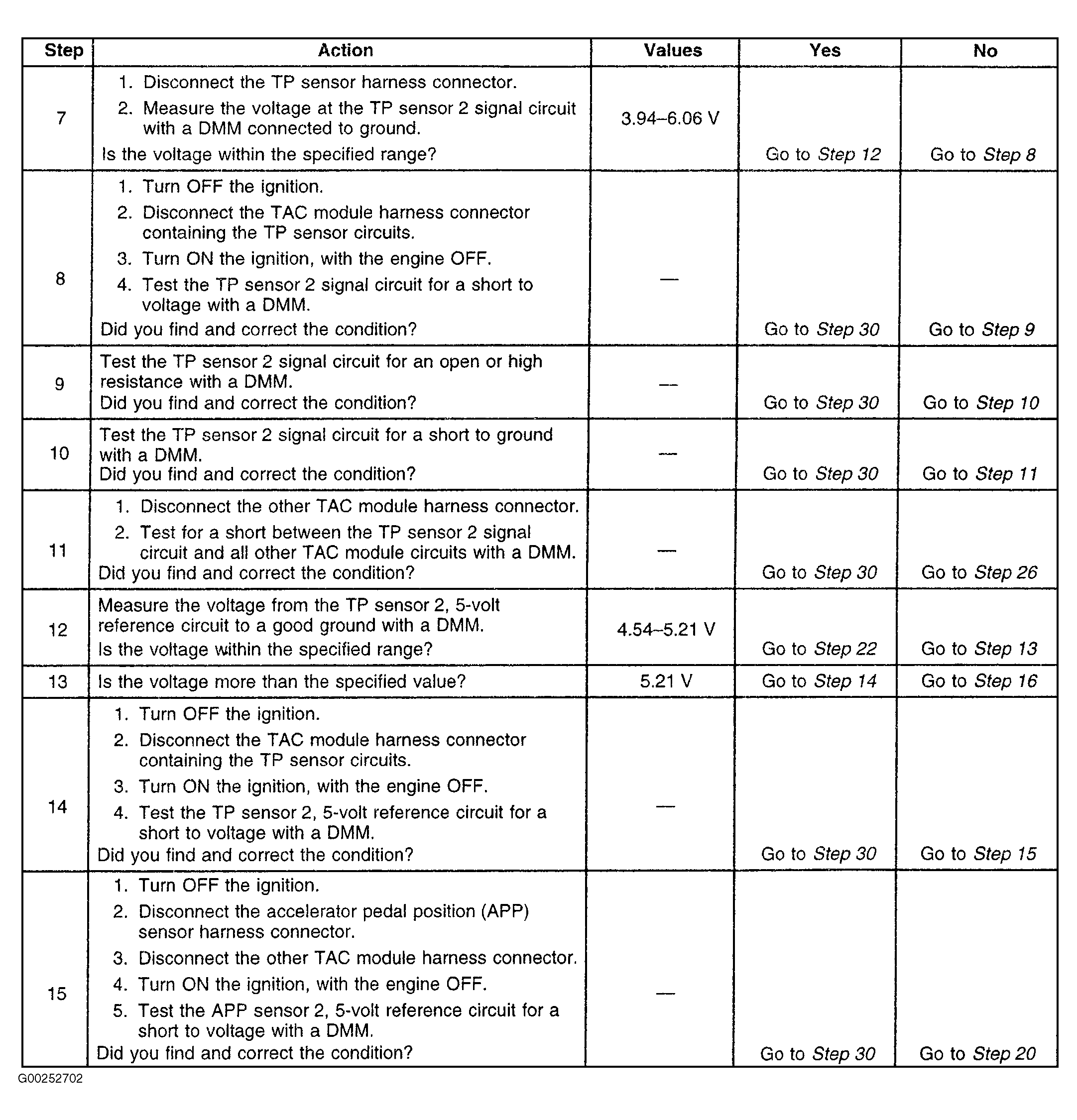

Fig 2: DTC P0220: Throttle Position Sensor 2 Circuit (Steps 7-15)

Courtesy of GENERAL MOTORS CORP.

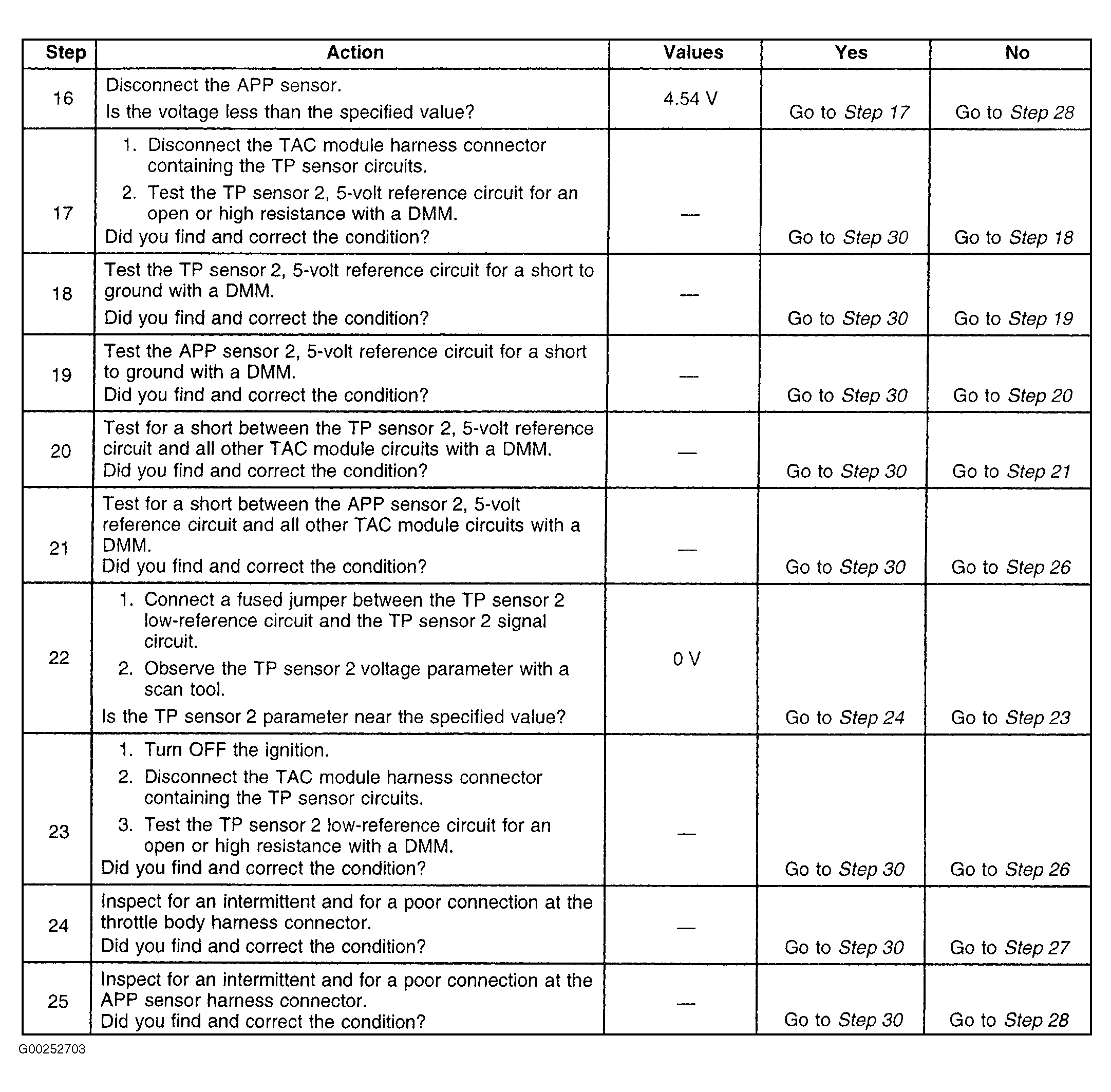

Fig 3: DTC P0220: Throttle Position Sensor 2 Circuit (Steps 16-25)

Courtesy of GENERAL MOTORS CORP.

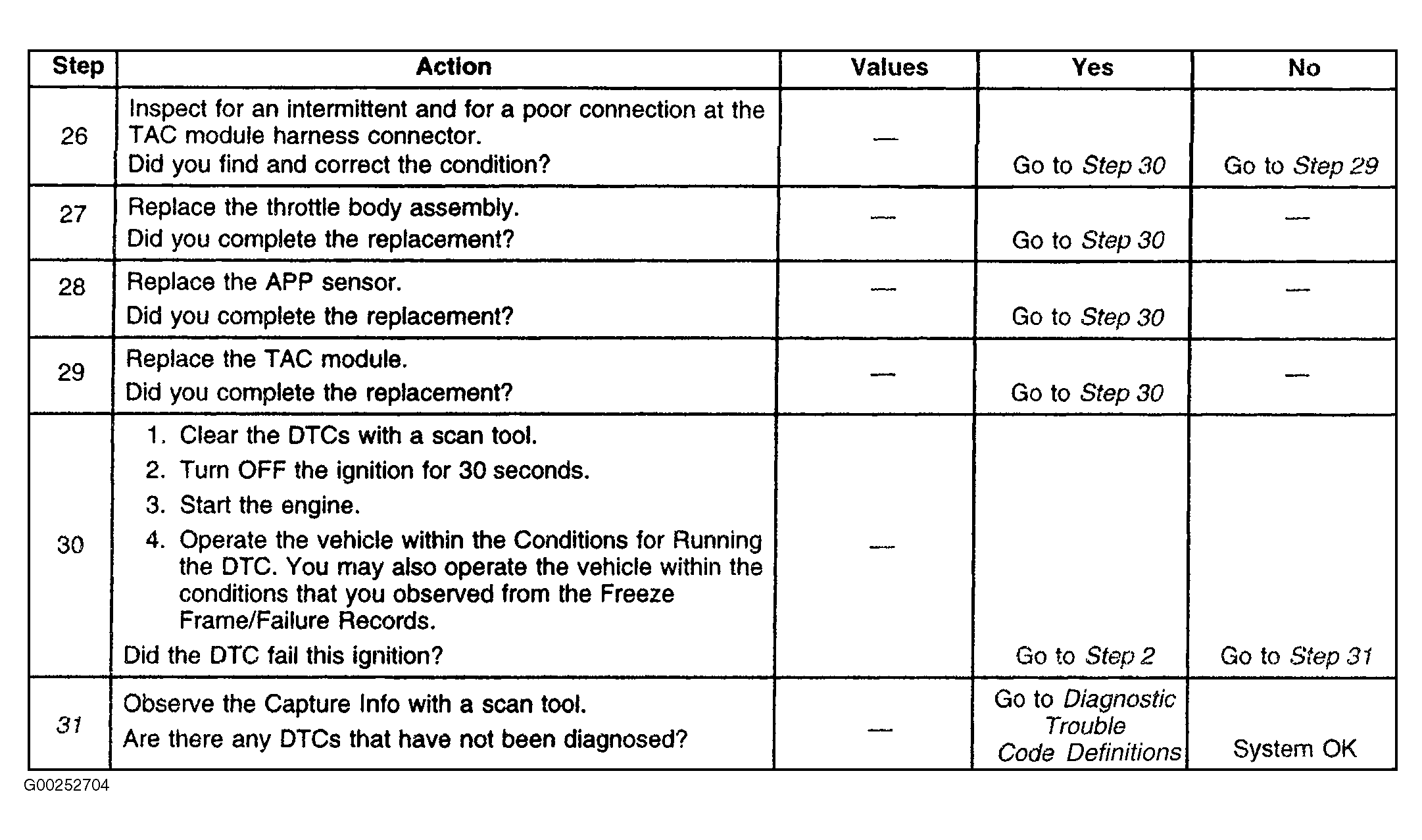

Fig 4: DTC P0220: Throttle Position Sensor 2 Circuit (Steps 26-31)

Courtesy of GENERAL MOTORS CORP.
