Diagnostic Procedure

WARNING: This page is about a different car, the 2003 GMC Envoy XL and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

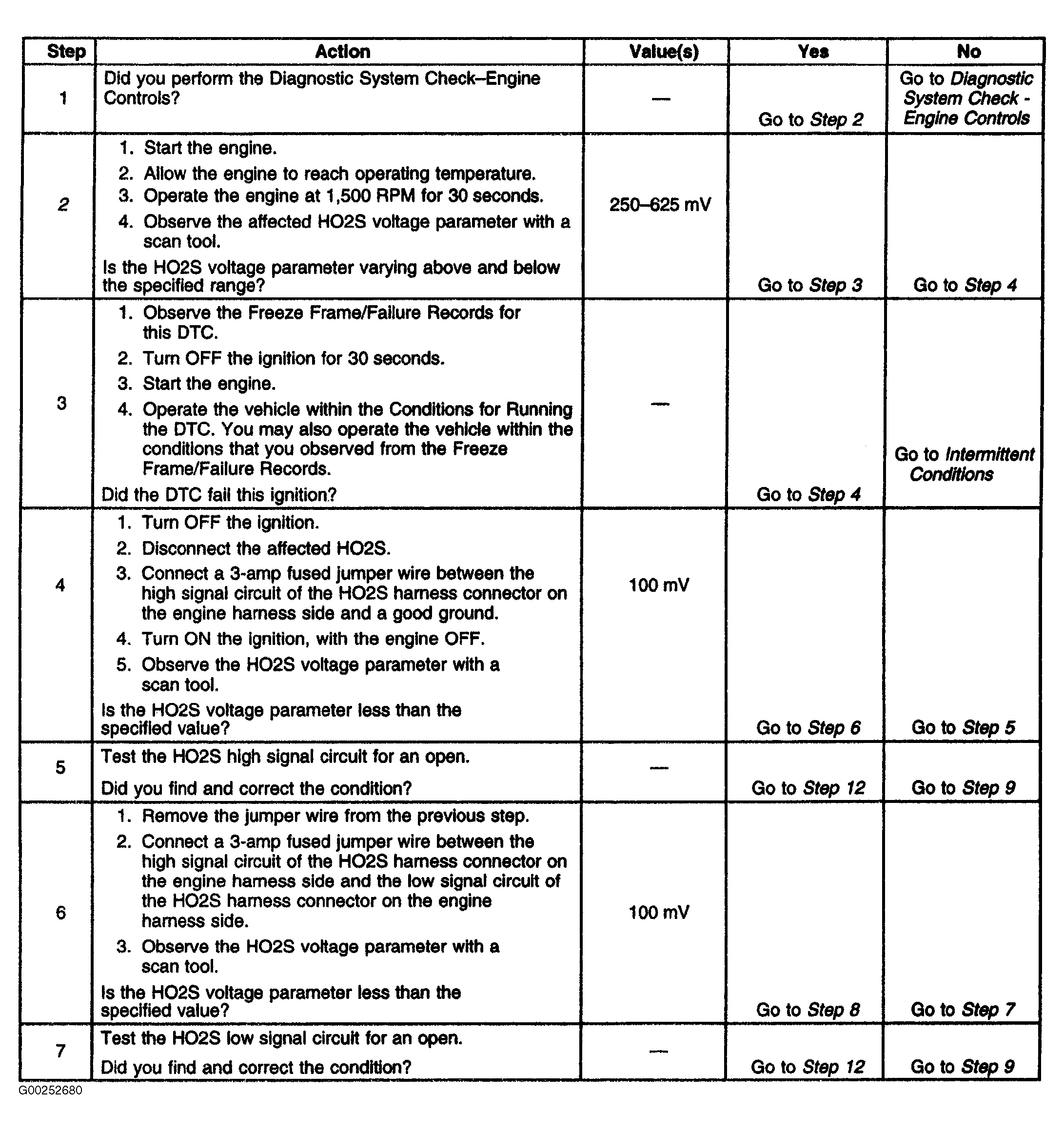

Fig 1: DTC P0133: HO2S Circuit - Slow Response - Bank 1, Sensor 1 & DTC P0153: HO2S Circuit - Slow Response - Bank 2, Sensor 1 (Steps 1-7)

Courtesy of GENERAL MOTORS CORP.

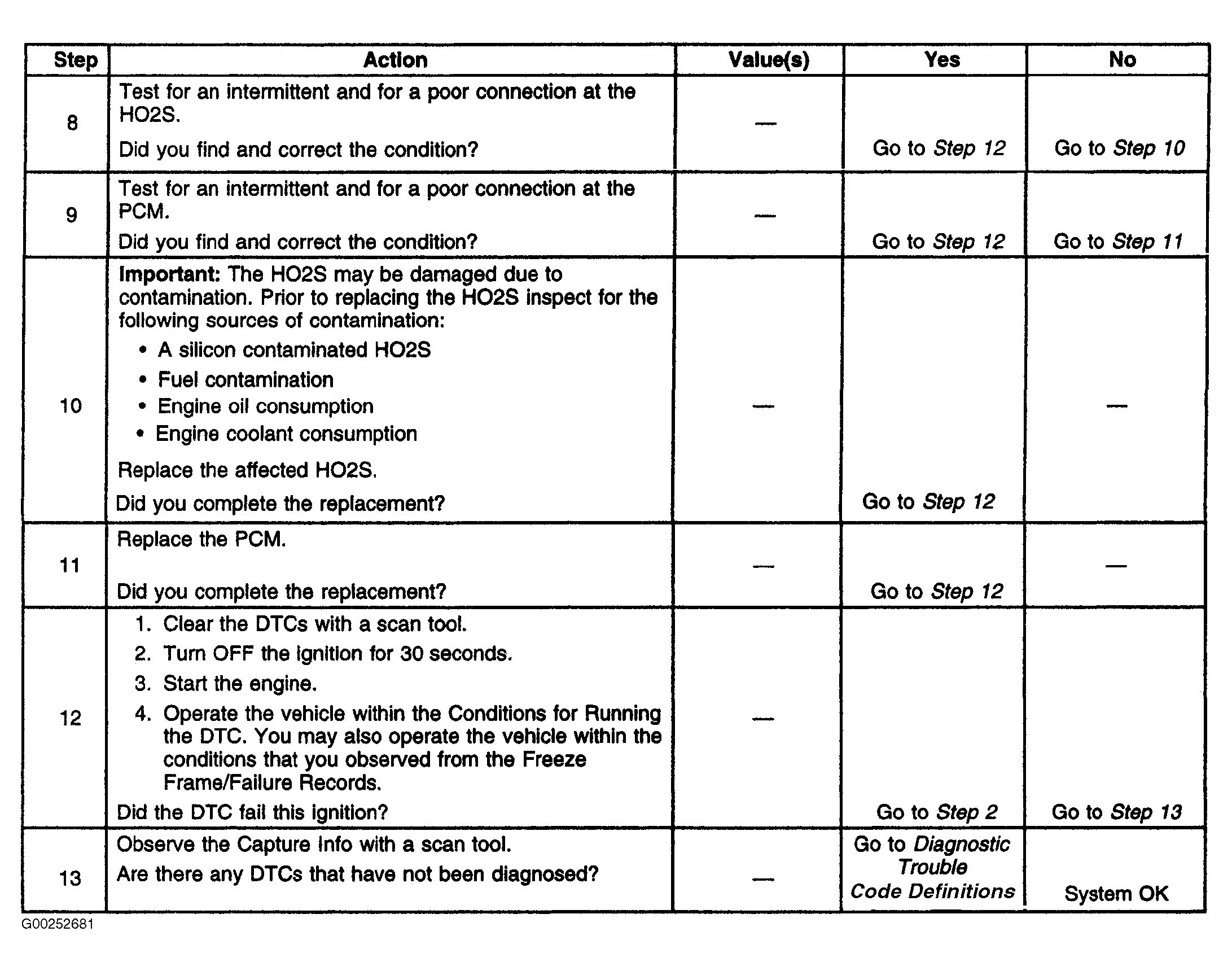

Fig 2: DTC P0133: HO2S Circuit - Slow Response - Bank 1, Sensor 1 & DTC P0153: HO2S Circuit - Slow Response - Bank 2, Sensor 1 (Steps 8-13)

Courtesy of GENERAL MOTORS CORP.
