WARNING: This page is about a different car, the 2003 GMC Envoy XL and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

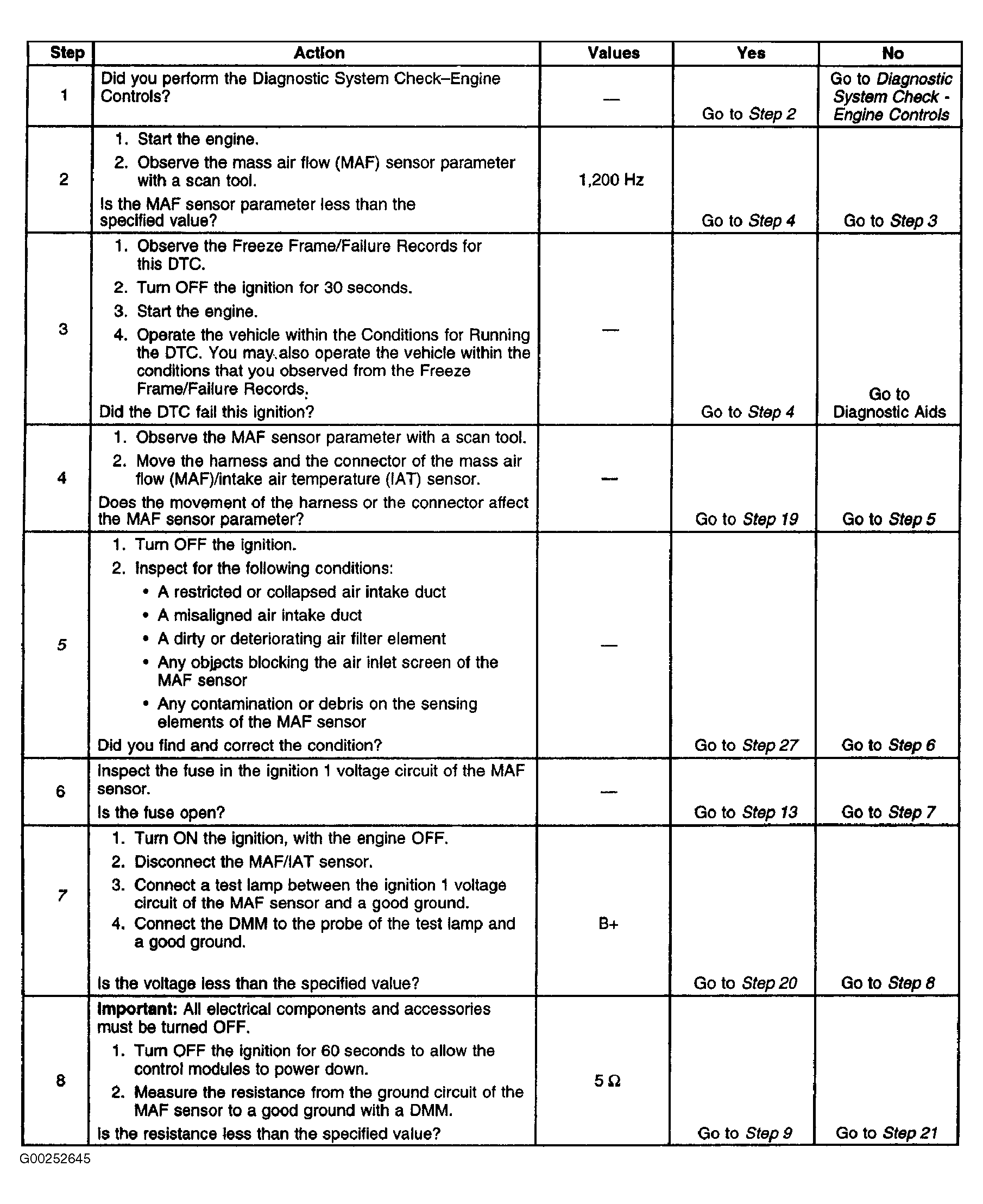

Fig 1: DTC P0102: Mass Air Flow Sensor Circuit - Low Frequency (Steps 1-8)
Courtesy of GENERAL MOTORS CORP.

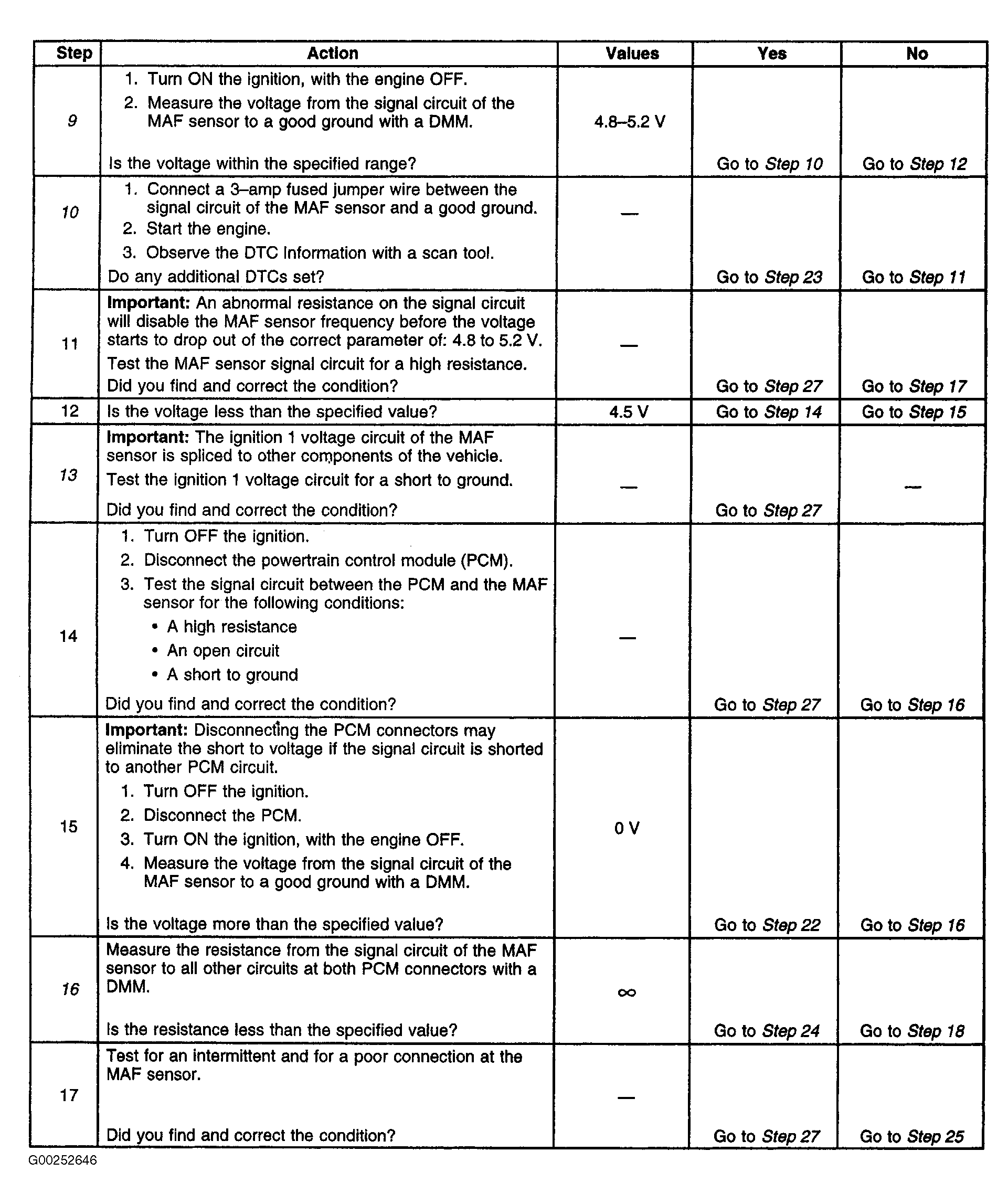

Fig 2: DTC P0102: Mass Air Flow Sensor Circuit - Low Frequency (Steps 9-17)
Courtesy of GENERAL MOTORS CORP.

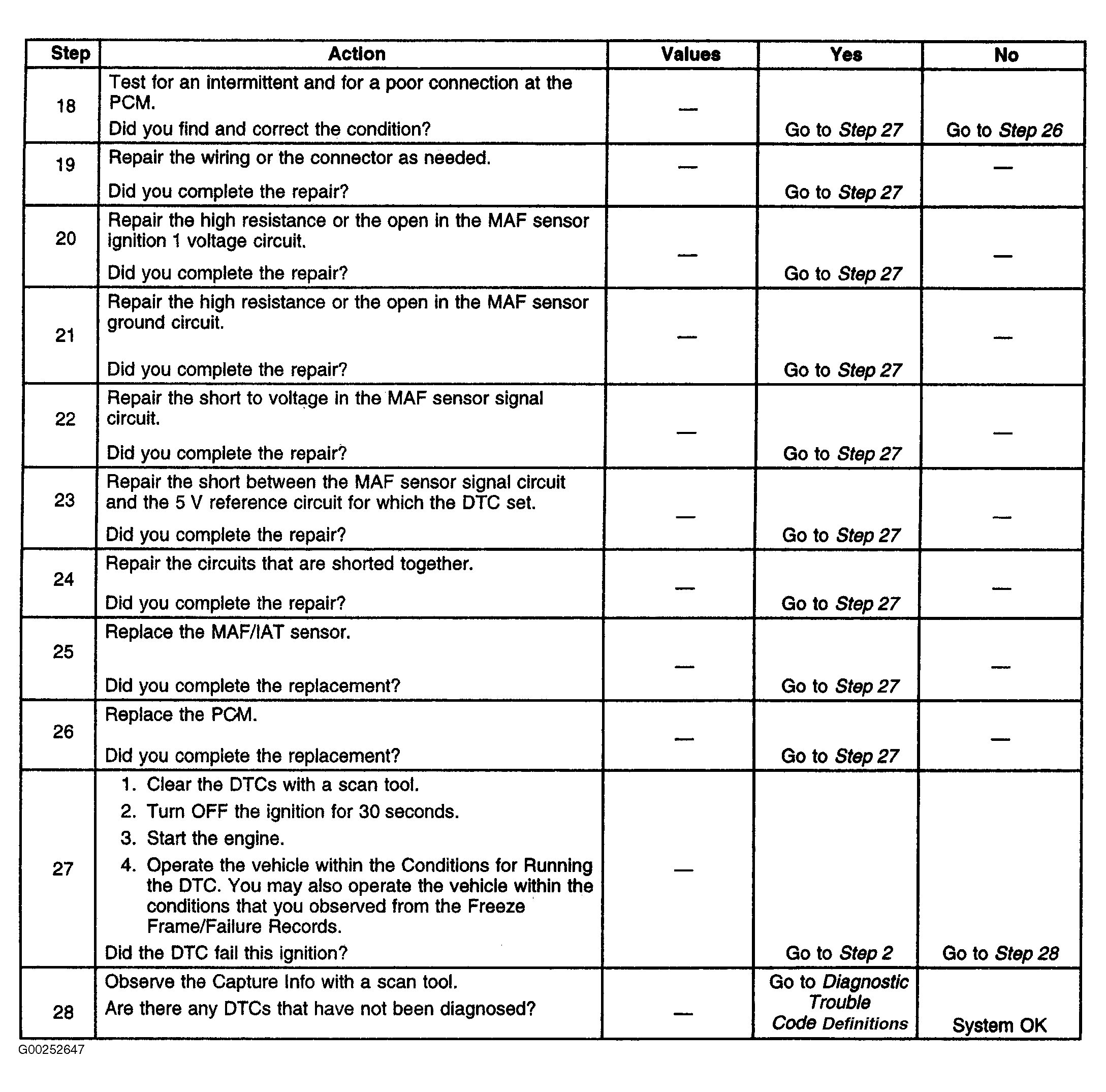

Fig 3: DTC P0102: Mass Air Flow Sensor Circuit - Low Frequency (Steps 18-28)
