Removal Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: View Of Engine Flywheel & Bolt
    GM178458Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Note the position and direction of the engine flywheel before removal.
  1. Remove the automatic transmission. For 4L60-E, refer to TRANSMISSION or for 4L80-E, refer to TRANSMISSION .
  2. Remove the engine flywheel bolts.
  3. Remove the automatic transmission engine flywheel.

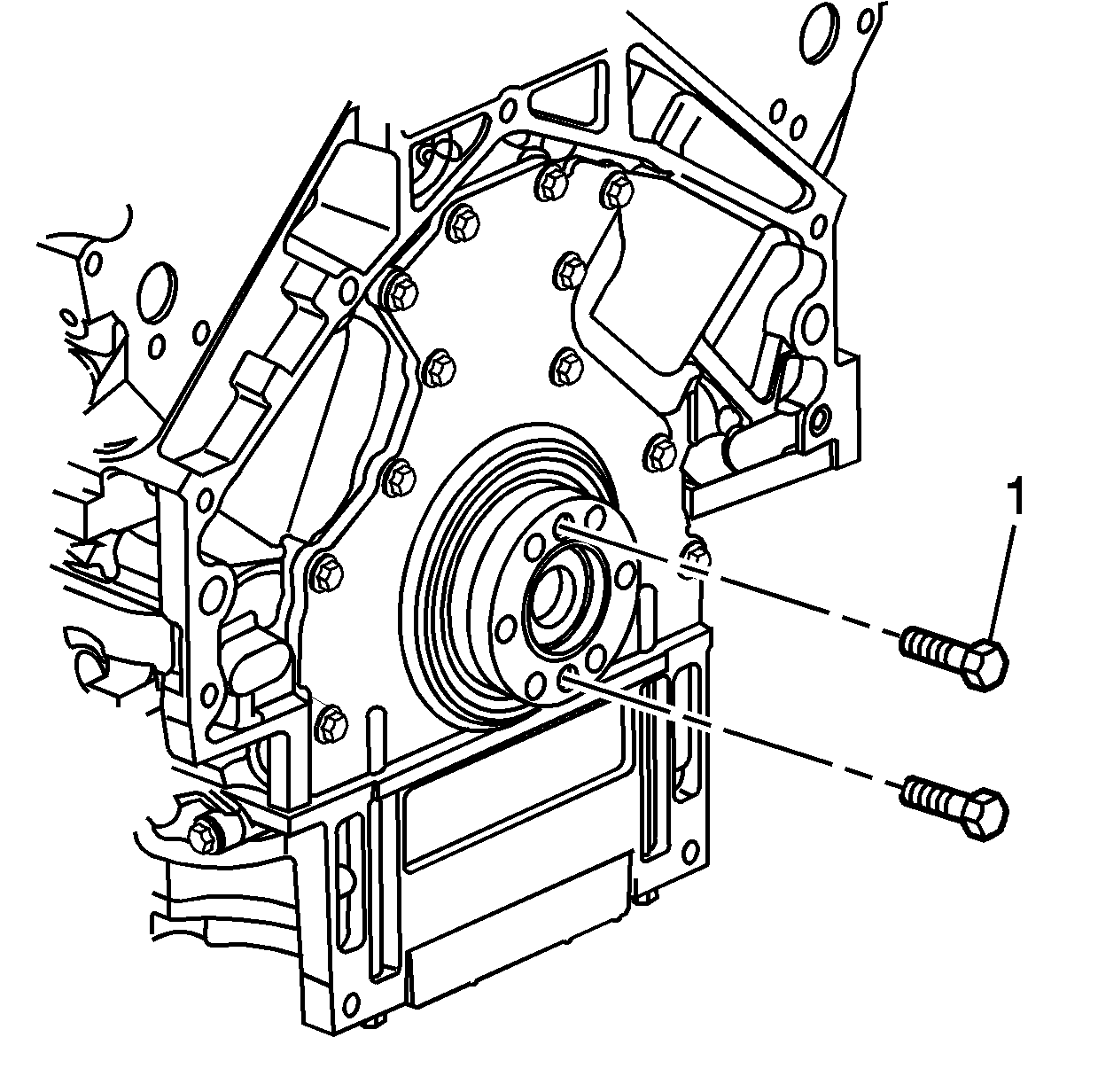

    4. Fig 2: Installing Bolts To Spacer Threaded Holes
    GM642281Courtesy of GENERAL MOTORS CORP.
  4. Install two M11x1.5 mm bolts (1) to the threaded holes of the spacer, if applicable.
  5. Rotate the bolts clockwise to remove the spacer.
    6. Fig 3: View Of Spacer & Crankshaft Rear
    GM642276Courtesy of GENERAL MOTORS CORP.
  6. Remove the spacer from the rear of the crankshaft, if applicable.
