Removal & Installation (2.2L)
WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

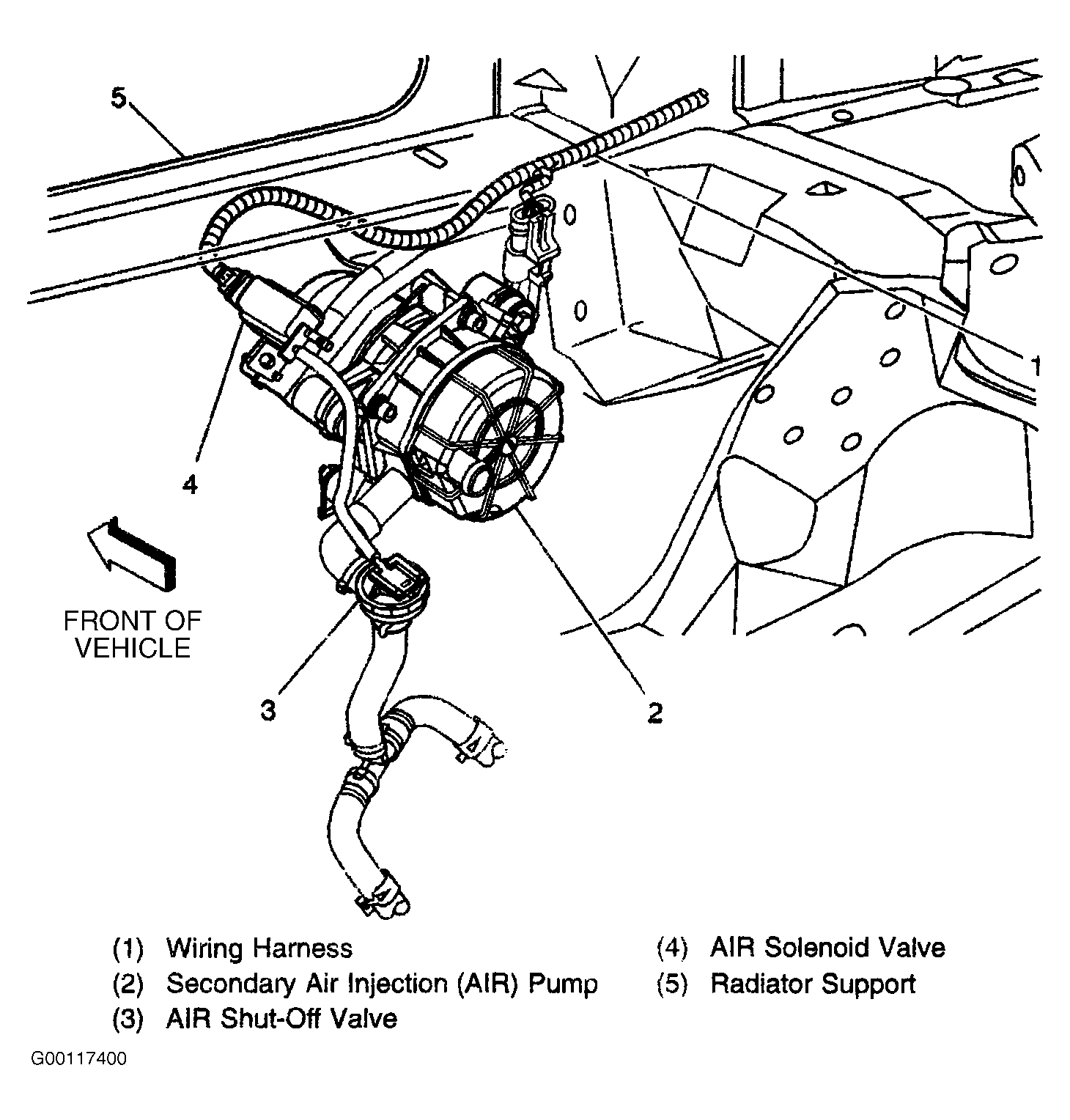

Turn ignition off. Raise and support vehicle. Locate AIR pump shut-off valve. See Fig 1. AIR pump shut-off valve is located in AIR pump outlet hose. Disconnect vacuum line from AIR pump shut-off valve. Disconnect crossover hose from AIR pump shut-off valve. Remove AIR pump shut-off valve from AIR pump outlet hose. To install, reverse removal procedure.
